QSC TouchMix-16 Self-Guided Tour

TouchMix Self-Guided Tour 13
This is the section of the mixer in which you can
create and store up to 130 Custom User Scenes.
A Scene is a snapshot of the entire mixer and all of its
settings. If you get the mixer dialed in for a particular
venue you play often or maybe a particular band or
even a song, you can save those settings as a scene
and recall them at any time. TouchMix also features a
number of factory programmed scenes already built in
to the mixer. You can use these to get the mixer setup
for dierent applications very quickly.
To Save a Custom Scene:
• Press “Menu” (Image 4.1).
• Select “Scenes” (Image 4.2).
• A pop-up window will appear on the screen
where you touch “Save/Save As.”
To name your Scene and designate the Save
location to either Internal or External USB, touch
“Save.” Now you have a custom Scene that can
be recalled at any time.
To Recall a Scene:
• Press “Menu” (Image 4.1) and Select
“Scenes” (Image 4.1).
• Select the Scene you’d like to Recall.
• Touch “Recall” (Image 4.3) in the lower left-
hand corner of the screen.
Once the Scene is Recalled press the “Home”
Soft button to the right to return your main faders.
A video overview of Scenes is also available for you
to enjoy online at:
4. SCENES

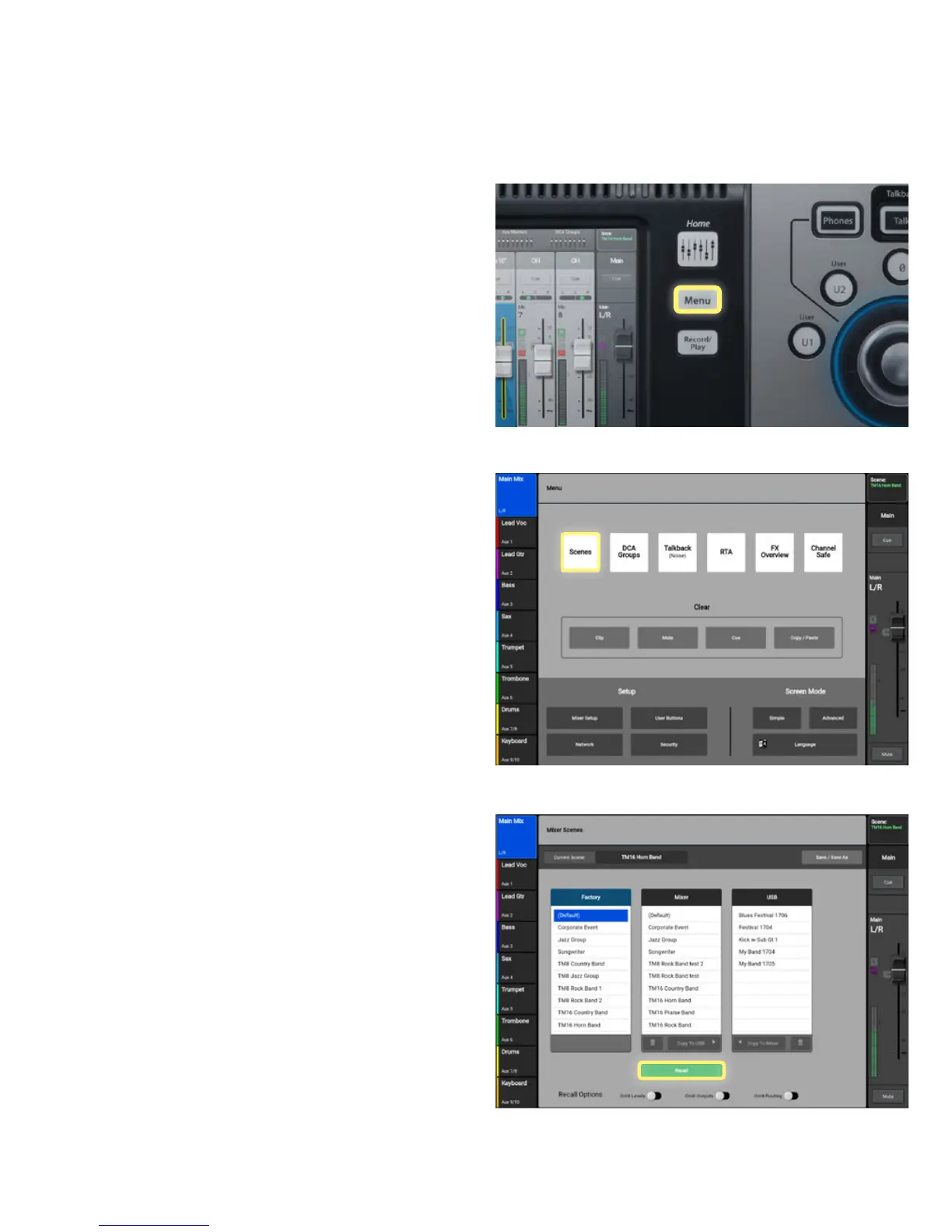

Image 4.1
Image 4.2
Image 4.3

QSC TouchMix-16 Specifications

General

Frequency range	20 - 20000 Hz
Channels quantity	- channels
Digital sound processing	- bit
XLR out	8
DJ mixer	-
Audio input	4x XLR/TRS combo, 12x XLR, 2x TRS
Product color	Silver

Weight and Dimensions

Depth	291 mm
Width	360 mm
Height	58 mm
Weight	2980 g
