QSW-8200-28T-AC supplies 2 plug-in interfaces, 1 48V DC input power interface, 1 input power
interface of PoE and 1 220V input power interface.

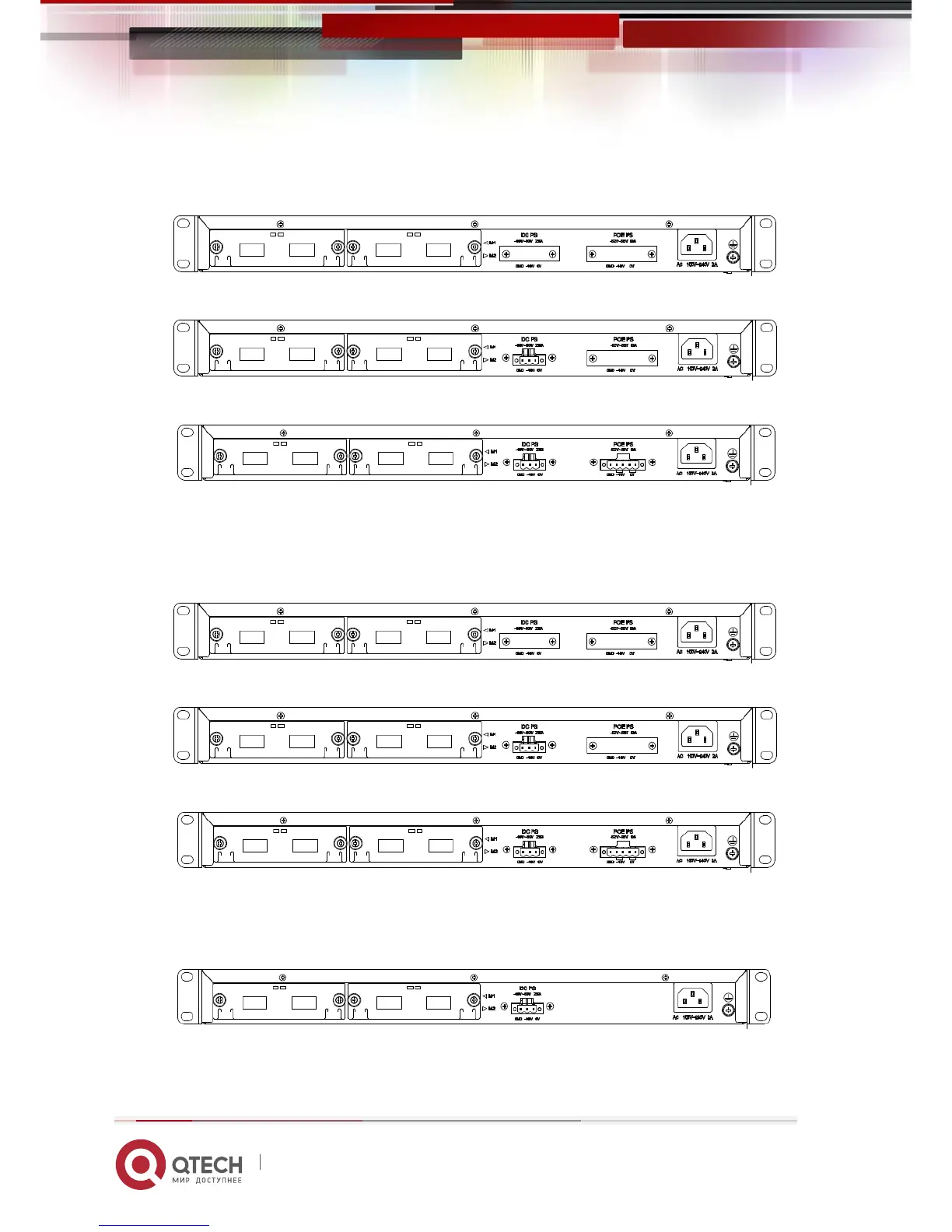

Fig 1-10 Back Panel of QSW-8200-28T-AC
Fig 1-11 Back Panel of QSW-8200-28T-AC-DC
Fig 1-12 Back Panel of QSW-8200-28T-POE-AC-DC
Back Panel of QSW-8200-52T-AC is same with QSW-8200-28T-AC, it supplies 2 plug-in
interfaces, 1 48V input power interface, 1 input power interface of PoE and 1 220V input
power interface.
Fig 1-13 Back Panel of QSW-8200-52T-AC
Fig 1-14 Back Panel of QSW-8200-52T-AC-DC
Fig 1-15 Back Panel of QSW-8200-52T-POE-AC-DC
QSW-8200-28F-AC-DC supplies 2 interfaces with the extended card, 1 interface with -48V DC
power input and 1 interface with 220V AC power input.
Fig 1-16 Back Panel of QSW-8200-28F-AC-DC
