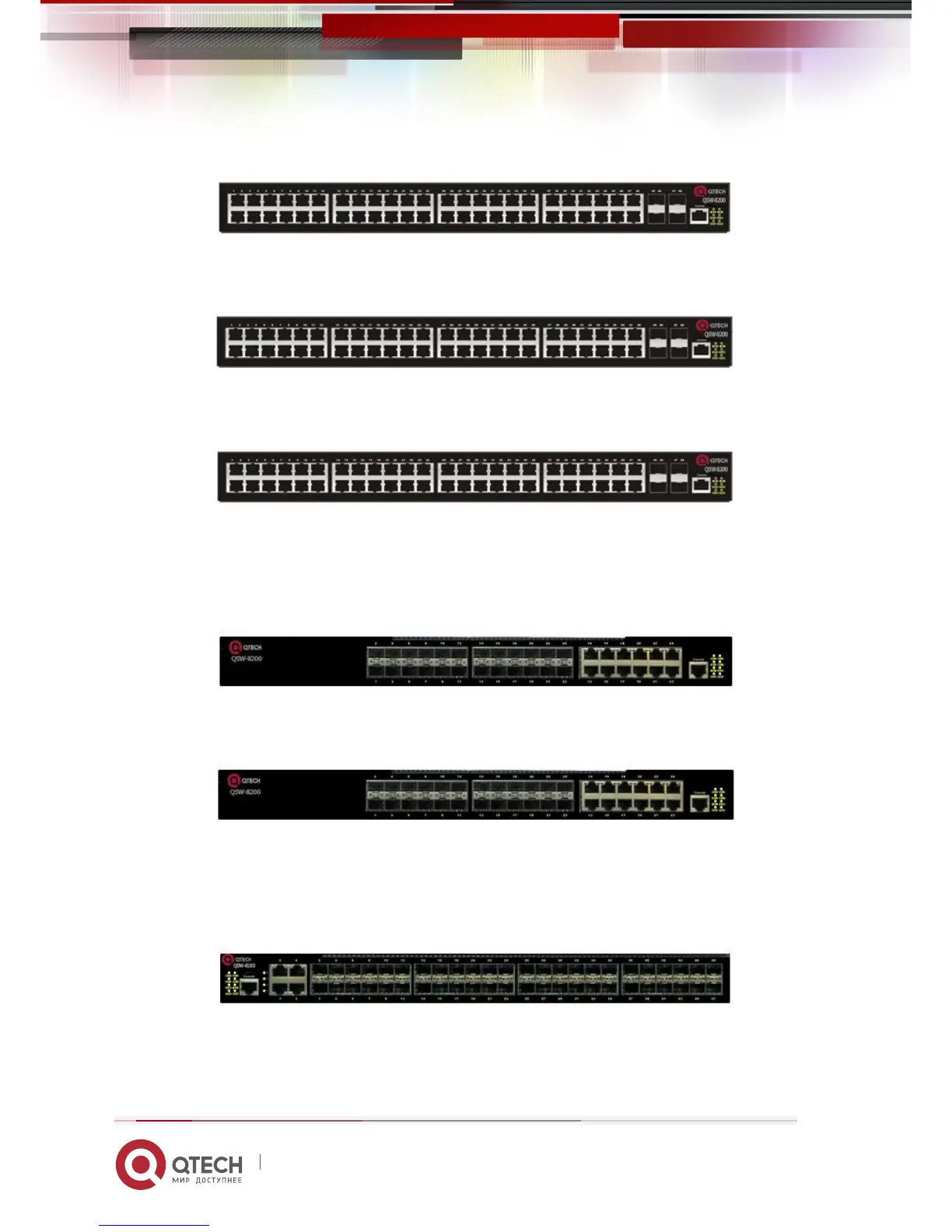

Fig 1-4 Front Panel of QSW-8200-52T-AC
Fig 1-5 Front Panel of QSW-8200-52T-AC-DC
Fig 1-6 Front Panel of QSW-8200-52T-POE-AC-DC
QSW-8200-28F-AC-DC/ QSW-8200-28F-AC Ethernet switch provides 12 1000Mb fiber ports, 12
1000Mb Combo ports, 8 function LEDs and 1 Console port.
Fig 1-7 Front Panel of QSW-8200-28F-AC-DC
Fig 1-8 Front Panel of QSW-8200-28F-AC
QSW-8200-52F-AC-DC ehternet switch provides 44 1000Mb fiber ports, 4 1000Mb Combo
ports, 8 function LEDs and 1 Console port.
Fig 1-9 Front Panel of QSW-8200-52F-AC-DC
1.4.2 Back Panel
