User Manual
Chapter 2. Hardware Installation 25
www.qtech.ru
Please mount QSW-8200 series on the 19’’ rack as below:
1. Attach the 2 brackets on the QSW-8200 series with screws provided in the accessory
kit.
2. Put the bracket-mounted switch smoothly into a standard 19’’ rack. Fasten the QSW-
8200 series to the rack with the screws provided. Leave enough space around the switch for
good air circulation.
Caution!
The brackets are used to fix the switch on the rack. They can’t serve as a bearing. Please place
a rack shelf under the switch. Do not place anything on top of the switch. Do not block the
blowholes on the switch to ensure the proper operation of the switch.
2.3.2 Connecting Console
QSW-8200 series provides a Mini-USB serial console port.

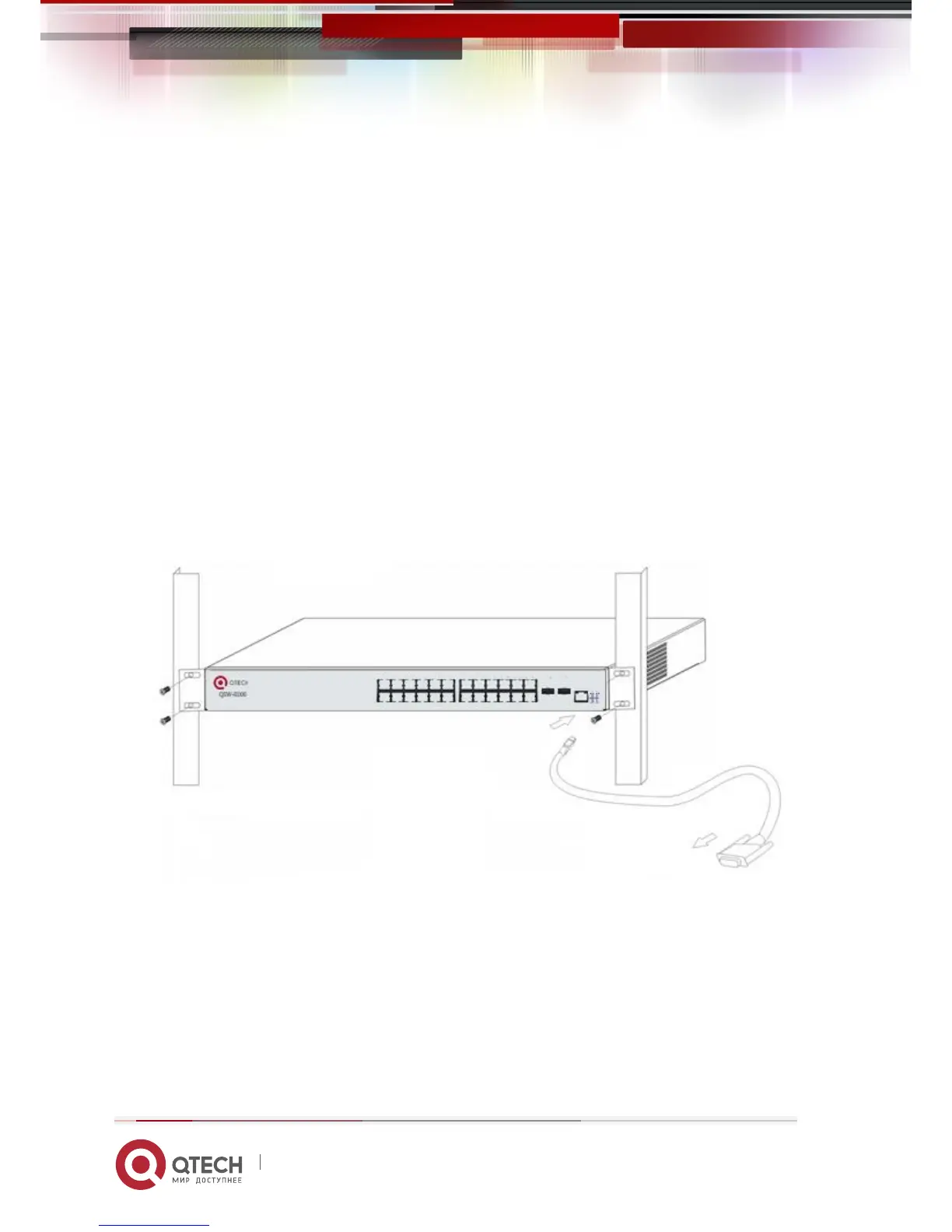

Fig 2-2 Connecting Console to QSW-8200
The connection procedure is listed below:
1. Find the console cable provided in the accessory kit. Attach the Mini-USB end to console
port of the switch.
2. Connect the other side of the console cable to a character terminal (PC).
3. Power on the switch and the character terminal. Configure the switch through the
character terminal.
