Quad Systems, LLC
EZ-7000 Automatic Door Operator
Mounting Instructions
Attention: Important Installation Instructions. Read and follow all Installation
Instructions. Save these Instructions.
This device is to be installed by an experienced, trained installer in accordance with ANSI A156.19
American National Standard for Power Assist and Low Energy Power Operated Doors as well as all
local codes.
WARNING: The EZ-7000 may be used for Residential or Commercial interior doors only with widths up to
48" (1220 mm) and a maximum weight of 200 lb. (91 kg). The operator can open the door up to an opening
angle of 110° for maximum accessibility. All switching devices must be in sight of the door it operates.
120-volt electrical supply supplied by others in accordance with all local codes. This unit must be
grounded.
Do NOT connect opener to source of power until instructed to do so.
Step One-Mounting the Header
• Make sure the mounting area has proper support for the unit. Wood studs or blocking in wallboard
is recommended.
• On each side of the door frame the header should overlap by 1½” on each side. If the header does
not overlap each side by 1 ½”, the output shaft should measure 4” from center to the inside of the
hinged side of the opening.

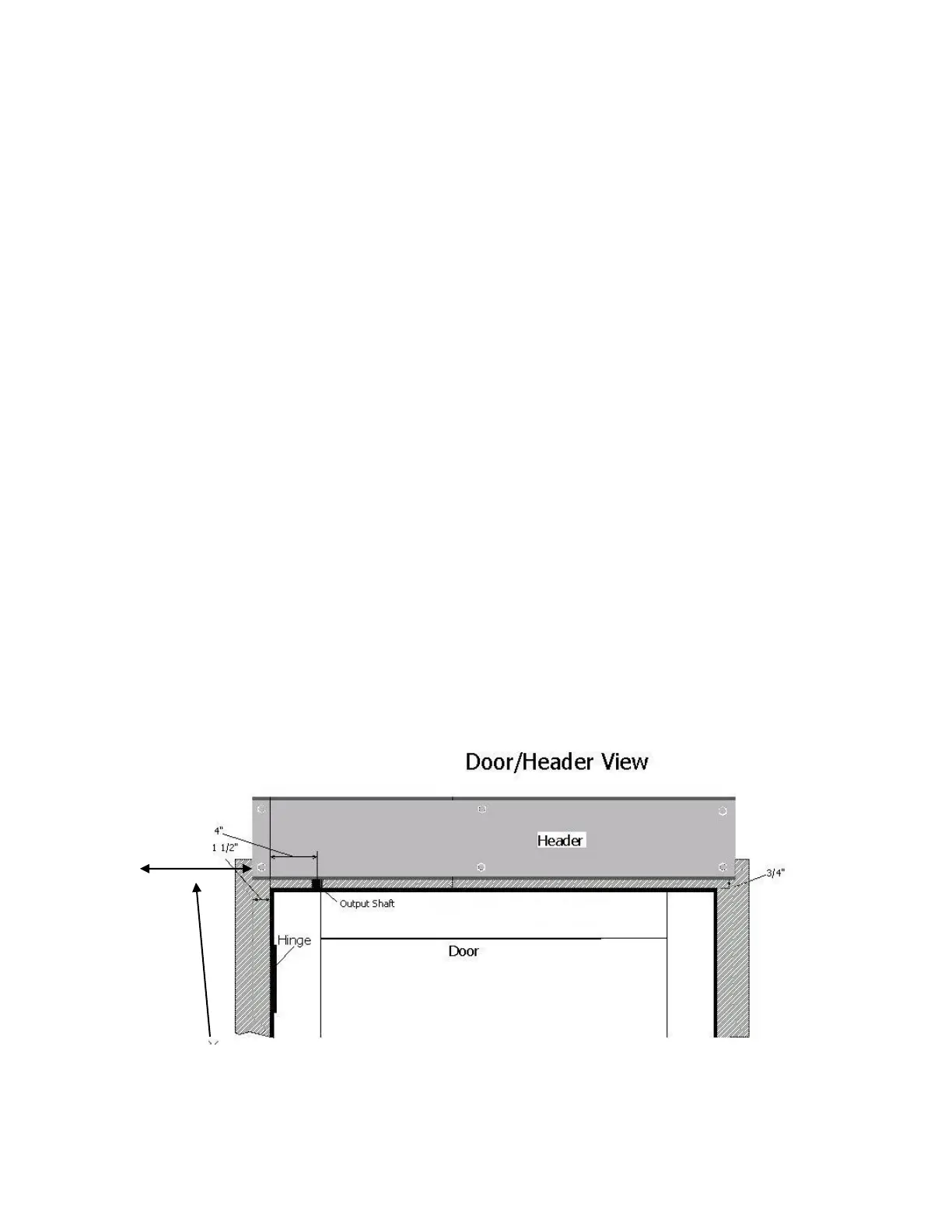

• The bottom of the unit should be ¾” to the inside of the doorframe (see drawing below).
• Drill holes in back of header and install a minimum of 6 correct fasteners for the wall material. The
unit must be mounted level and in a secure manner.
NOTE: If door is an In-Swing, allow 8” minimum between header and opposing wall to allow
clearance for the Pull Arm.
