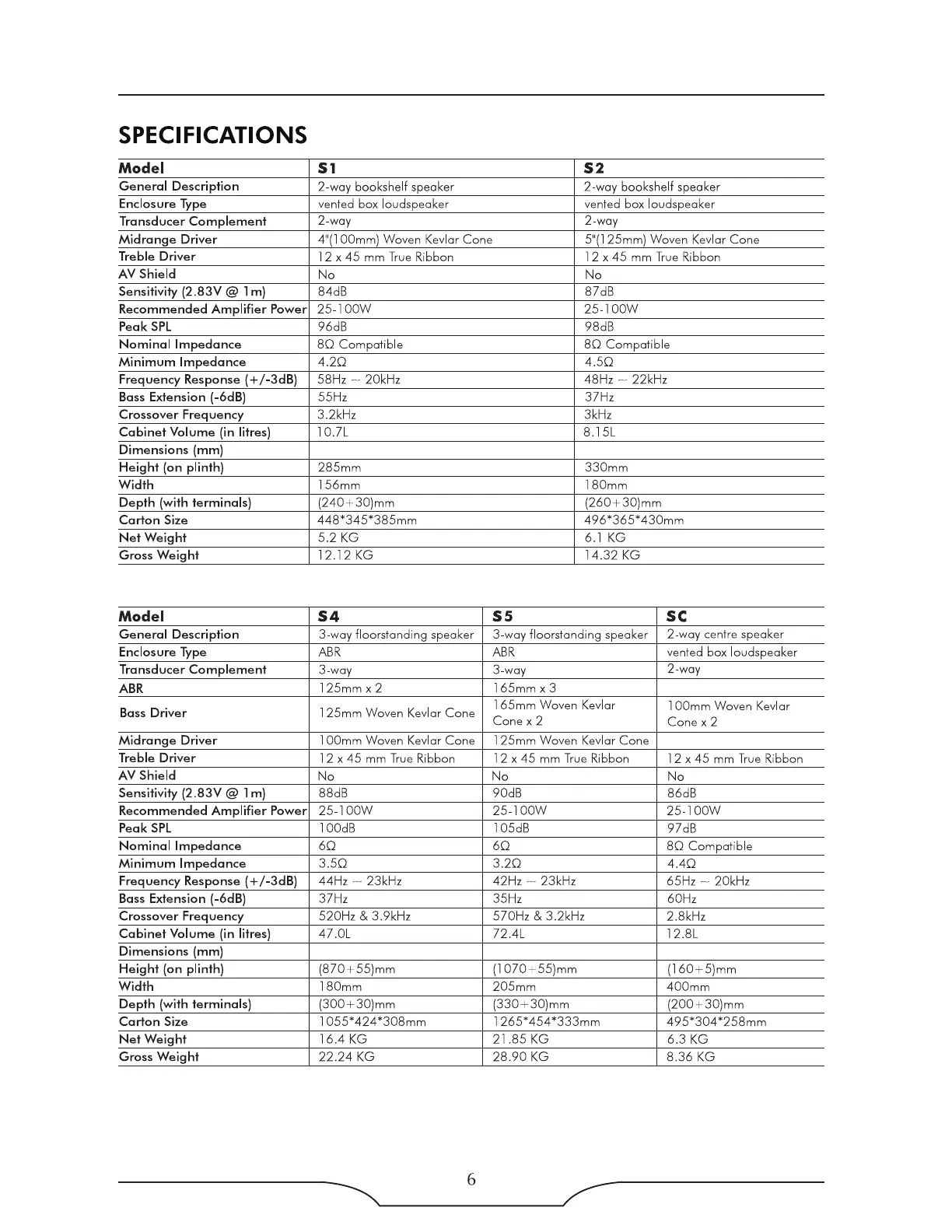

QUAD S Series User Manual

SPECIFICATIONS
Model
S1
S2
General Description
2-way bookshelf speaker 2-way bookshelf speaker
Enclosure Type
vented box loudspeaker vented box loudspeaker
Transducer Complement
2-way 2-way
Midrange Driver 4"(1 00mm} Woven Kevlar Cone 5"(l 25mm} Woven Kevlar Cone
Treble Driver
12 x 45 mm True Ribbon l 2 x 45 mm True Ribbon
AV Shield
No No
Sensitivity (2 . 83V@ 1 m)
84dB 87dB
Recommended Amplifier Power
25-l00W 25-l00W
Peak SPL 96dB 98dB
Nominal Impedance 80 Compatible 80 Compatible
Minimum Impedance 4. 20 4. 50
Frequency Response ( + /-3dB) 58Hz - 20kHz 48Hz - 22kHz
Bass Extension (-6dB) 55Hz 37Hz
Crossover Frequency 3.2kHz 3kHz
Cabinet Volume (in litres) l 0.7L 8.l 5L
Dimensions (mm)
Height (on plinth)
285mm 330mm
Width 756mm 780mm
Depth (with terminals) (240+ 30)mm (260+ 30)mm
Carton Size 448*345*385mm 496*365*430mm
Net Weight
5.2 KG 6.l KG
Gross Weight
12.12 KG 14. 32 KG
Model
S4 S5 SC
General Description
3-way floorstanding speaker 3-way floorstanding speaker
2-way centre speaker
Enclosure Type ABR ABR
vented box loudspeaker
Transducer Complement 3-way 3-way
2-way
ABR
725mm x 2 765mm x 3
Bass Driver
125mm Woven Kevlar Cone
165mm Woven Kevlar
l 00mm Woven Kevlar
Cone x 2
Cone x 2
Midrange Driver l 00mm Woven Kevlar Cone 125mm Woven Kevlar Cone
Treble Driver
l 2 x 45 mm True Ribbon 12 x 45 mm True Ribbon 12 x 45 mm True Ribbon
AV Shield
No No No
Sensitivity (2 . 83V@ 1 m)
88dB 90dB 86dB
Recommended Amplifier Power
25-l00W 25-l00W
25-l00W
Peak SPL l00dB l05dB 97dB
Nominal Impedance 60 60 80 Compatible
Minimum Impedance 3.50 3. 20
4.40
Frequency Response (+/-3dB) 44Hz - 23kHz 42Hz - 23kHz
65Hz - 20kHz
Bass Extension (-6dB) 37Hz 35Hz
60Hz
Crossover Frequency 520Hz & 3.9kHz 570Hz & 3.2kHz
2.8kHz
Cabinet Volume (in litres) 47. 0L 72.4L
l2 . 8L
Dimensions (mm)
Height (on plinth)
(870+ 55)mm (l 070 + 55)mm (l60 + 5)mm
Width
180mm 205mm 400mm
Depth (with terminals) (300+ 30)mm (330+ 30)mm (200+ 30)mm
Carton Size l 055*424*308mm l 265*454*333mm 495*304 *258mm
Net Weight 76.4 KG 27.85 KG 6.3 KG
Gross Weight 22 . 24 KG 28.90 KG
8.36 KG
6
