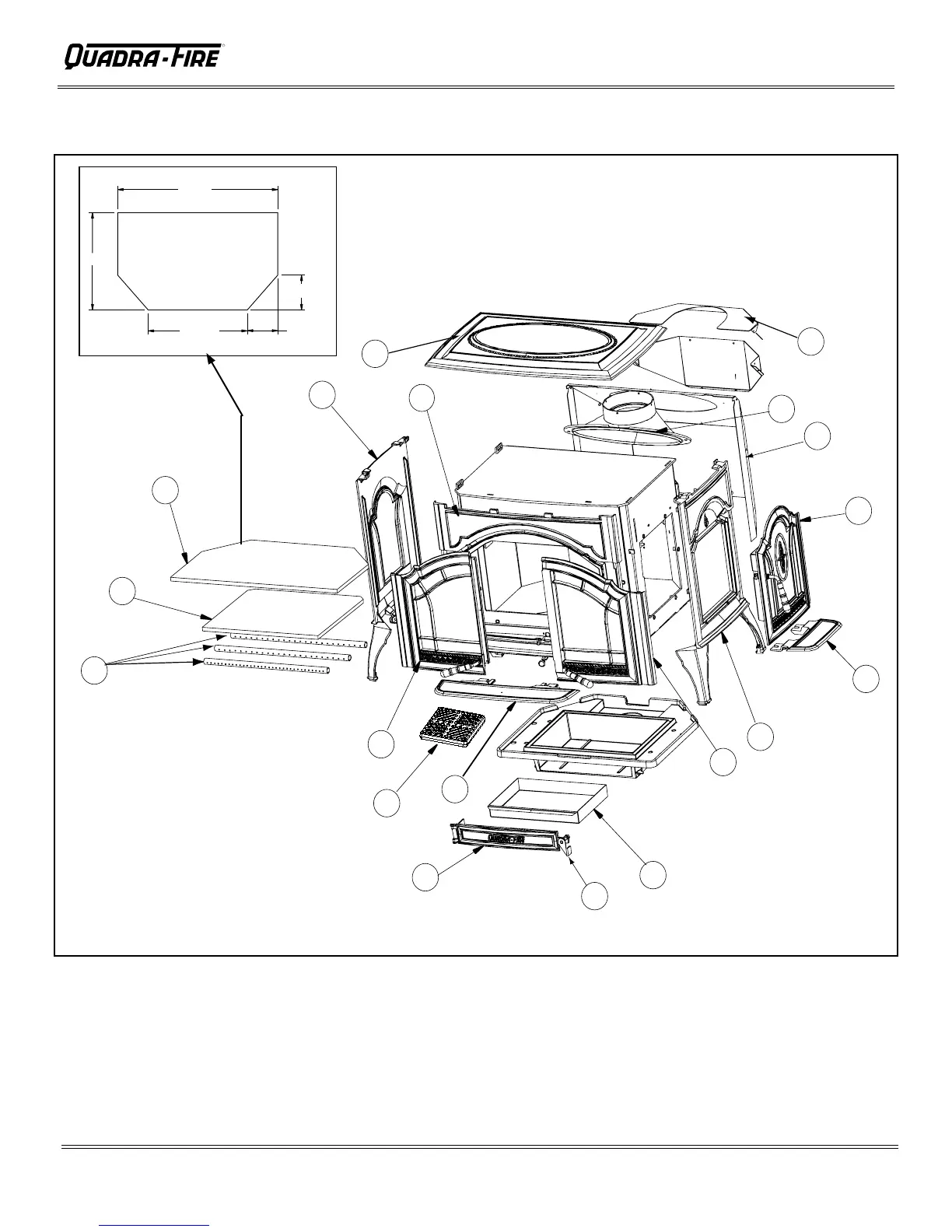

Quadra-Fire CUMBGAP-PMH - Parts Diagram

R
Page 28
September 1, 2008
Cumberland Gap Wood Stove
7006-188E
14-1/4"
23.0"
14.0"
5.0"
4-3/8"
Ceramic Blanket
10
15
9
8
6
16
3
13
12
4
7
14
17
2
5
18
1
11
19
* Part number list on following page.
Parts Diagram
