Cumberland Gap Wood Stove
R
September 1, 2008
7006-188E

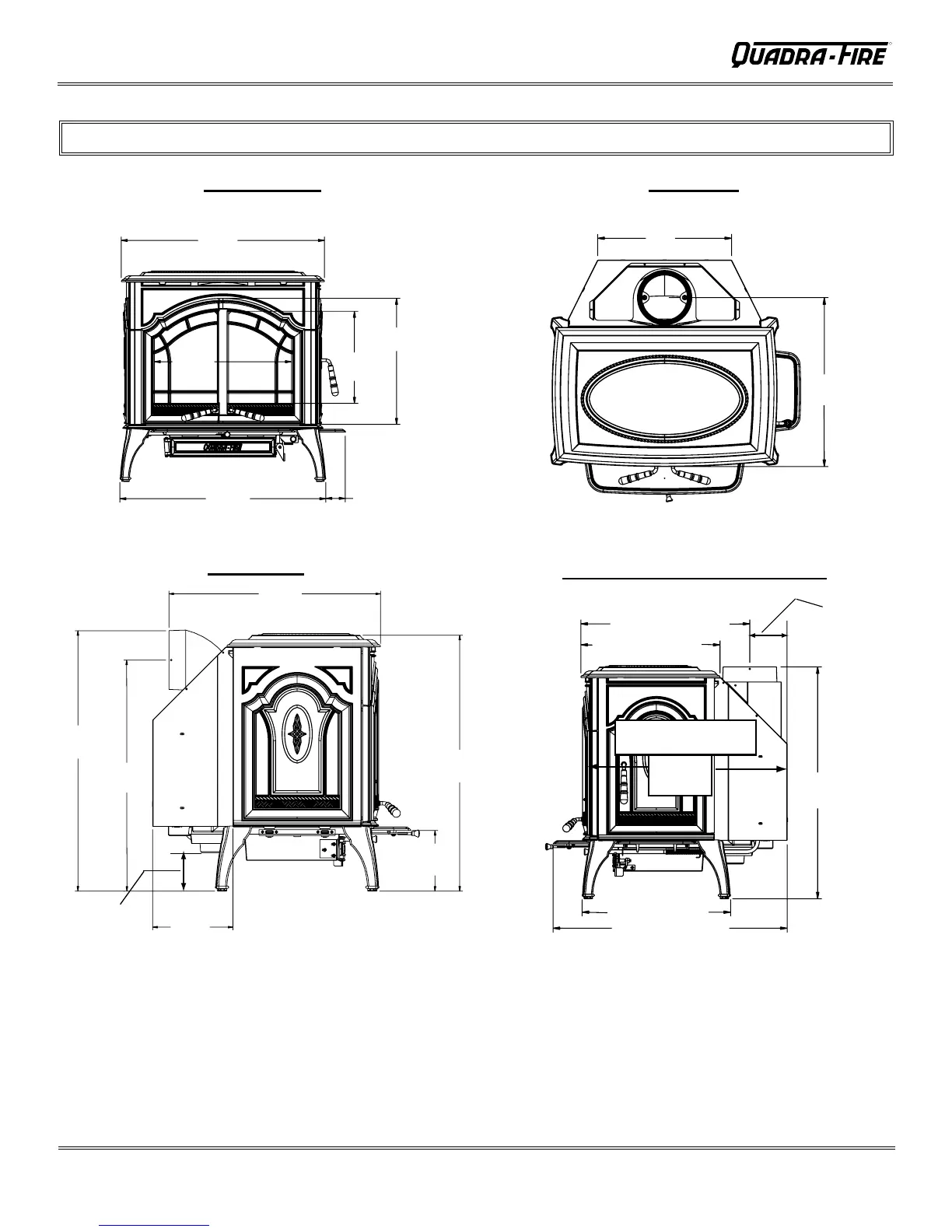

DIMENSIONS
FRONT VIEW
SIDE VIEW
VENT SPECIFICATIONS
:
Single Wall: Six inch (6”) (152mm) diameter, minimum 24 MSG black or blued steel connector pipe, with a listed factory-built
chimney type UL103 HT* suitable for use with solid fuels, or a masonry chimney, and the referenced clearances.
Double Wall/Mobile Home: Six inch (6”) (152mm) diameter, listed double wall air insulated connector pipe with listed factory-
built UL103 HT* Class “A” chimney, or a masonry chimney (Mobile Home must be equipped with a spark arrestor), and the
referenced clearances. Use only double-wall connector pipe, Dura-Vent DVL, Selkirk metalbestos DS, Security DL double
wall connector or any listed double-wall connector pipe.
*In Canada must comply with CAN/ULC-S629 for the 650°
C
Factory-built chimney.
SERIAL NUMBER LABEL IS LOCATED ON THE BACK OF THE STOVE
TOP VIEW
SIDE VIEW WITH FUEL DOOR
27-1/4"
(692mm)
18-1/8"
(460mm)
2-9/16"
(65mm)
12-3/16"
(310mm)
16-11/16"
(424mm)
26-7/8"
(683mm)
20-3/16"
(513mm)
16.0"
(406mm)
C
L
C
L
27-11/16"
(703mm)
6-9/16"
(167mm)
8-11/16"
(221mm)
25.0"
(635mm)
28-3/16"
(716mm)
22-7/8"
(581mm)
C
L
4-3/16"
(106mm)
20-3/16" (513mm)
C
L
27-11/16"
(703mm)
16-5/8" (422mm)
17-3/4"(451mm)
27-15/16"(710mm)
4-1/2"
(114mm)
Back of stove to front
fuel loading door
23-1/16"
(586mm)
