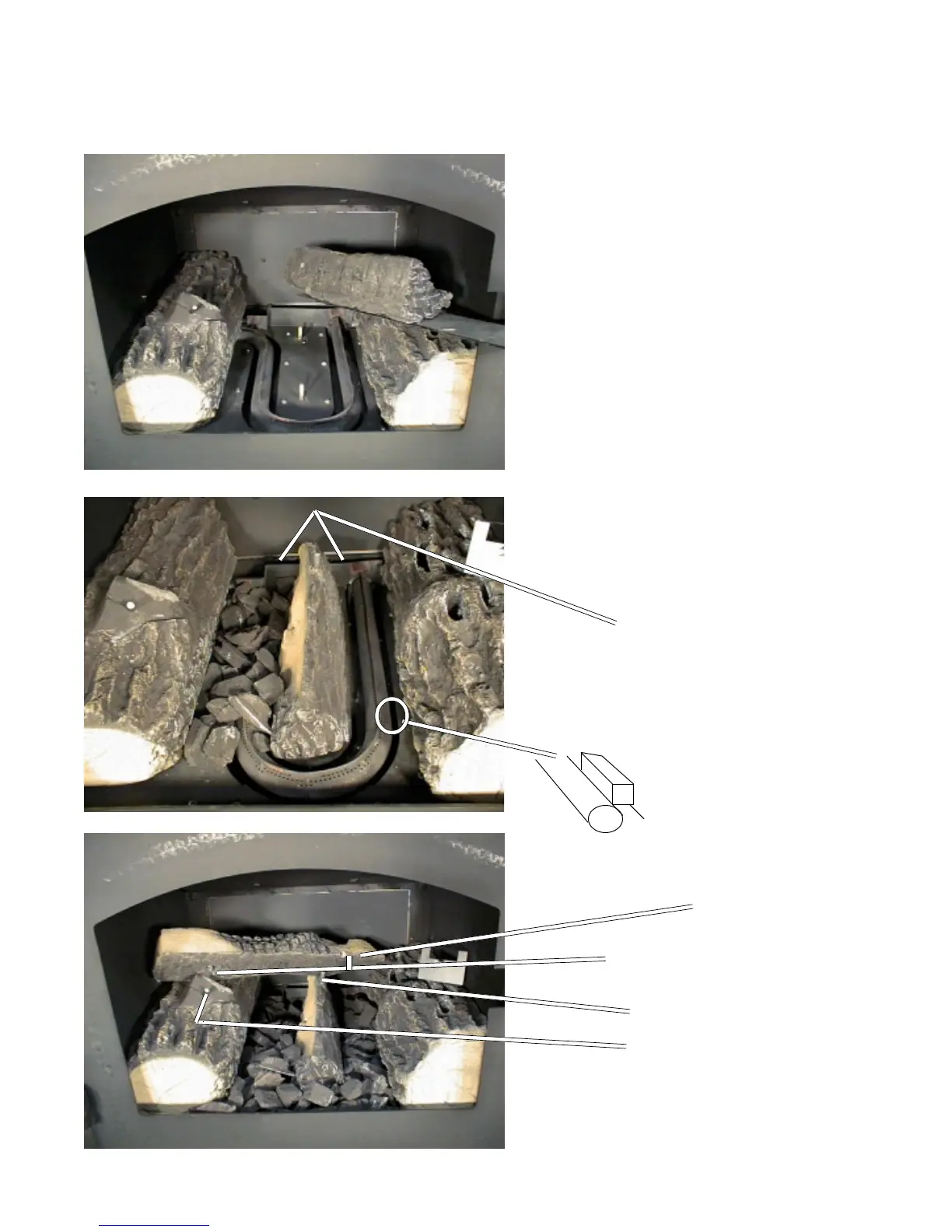

FIGURE 1
PLACE PEG HOLES IN LOG #23
OVER PEGS IN CENTER BURNER
PAN.
If damage has occurred to right or left
base log, and replacement is
necessary, removal is illustrated in
conversion instruction steps 5-7.
FIGURE 3
FIGURE 2
DO NOT ALLOW NUGGETS ON
BACKSIDE OF THIS PLATE.
DO NOT ALLOW LONG LENGTH OF
NUGGETS TO BLOCK AIR GAP
BETWEEN BURNER PAN AND
BURNER.
LOG #22
PEG HOLES IN LEFT TOP LOG
PEG IN CENTER LOG
PEG IN LEFT BASE LOG
LOG INSTALLATION, CONTINUED
