LOG INSTALLATION, CONTINUED

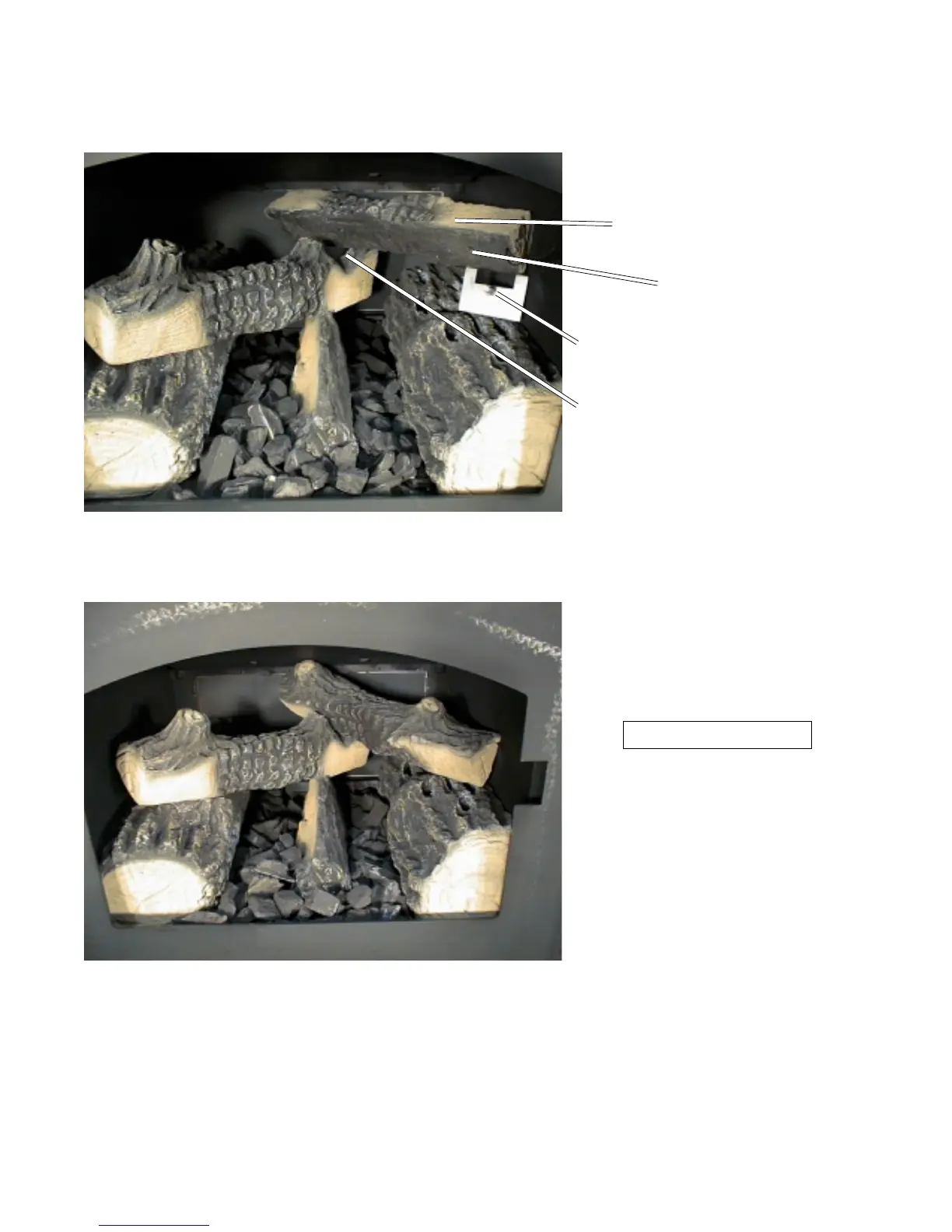

FIGURE 4
RIGHT TOP LOG #24.
PEG HOLE
PEG IN RIGHT LOG BRACKET
NOTCH FOR RIGHT TOP LOG
FINISHED LOG SET
CAUTION !
Light appliance with door open to insure there is no hesitation or delay of flame transfer through
nugget bed. If ignition is noisy or delayed momentarily, the nuggets in that area may need to be
rearranged. Close door and continue with flame adjustment. See “Shutter Adjustment” on following
page.
