Santa Fe Pellet Stove
3
Dimensions and Clearances
A. Appliance Dimensions

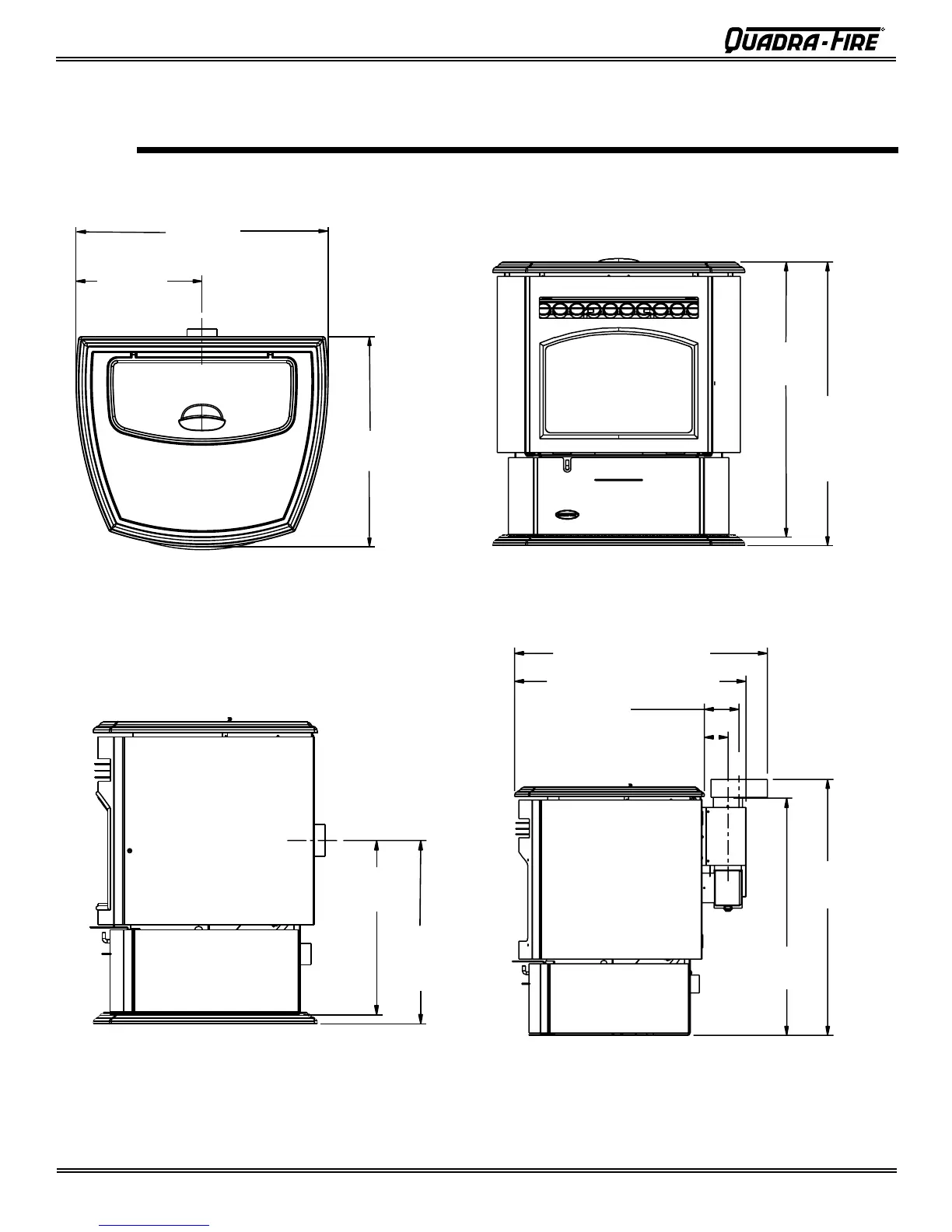

Figure 7.2- Front View
Figure 7.1 - Top View
Figure 7.3 -Side View
Figure 7.4 - Side View with Top Vent Adapter
25-7/16 in.
(646 mm)
12-11/16 in.
(322mm)
21-3/16 in.
(538mm)
27-/4 in.
(705mm)
28-5/8 in.
with base
(727mm with
base)
16-7/16 in.
(418mm)
17-5/16 in.
with base
(440mm)
C
L
28-9/16 in
(726mm)
26-7/16 in
(672mm)
25-1/16 in (655mm)
28-/16 in (716mm)
-7/8 in
(98mm)
2-5/8 in
(66mm)
C
L
C
L
