30
Fig. 01
QSI0013
Fig. 02
QSI0014

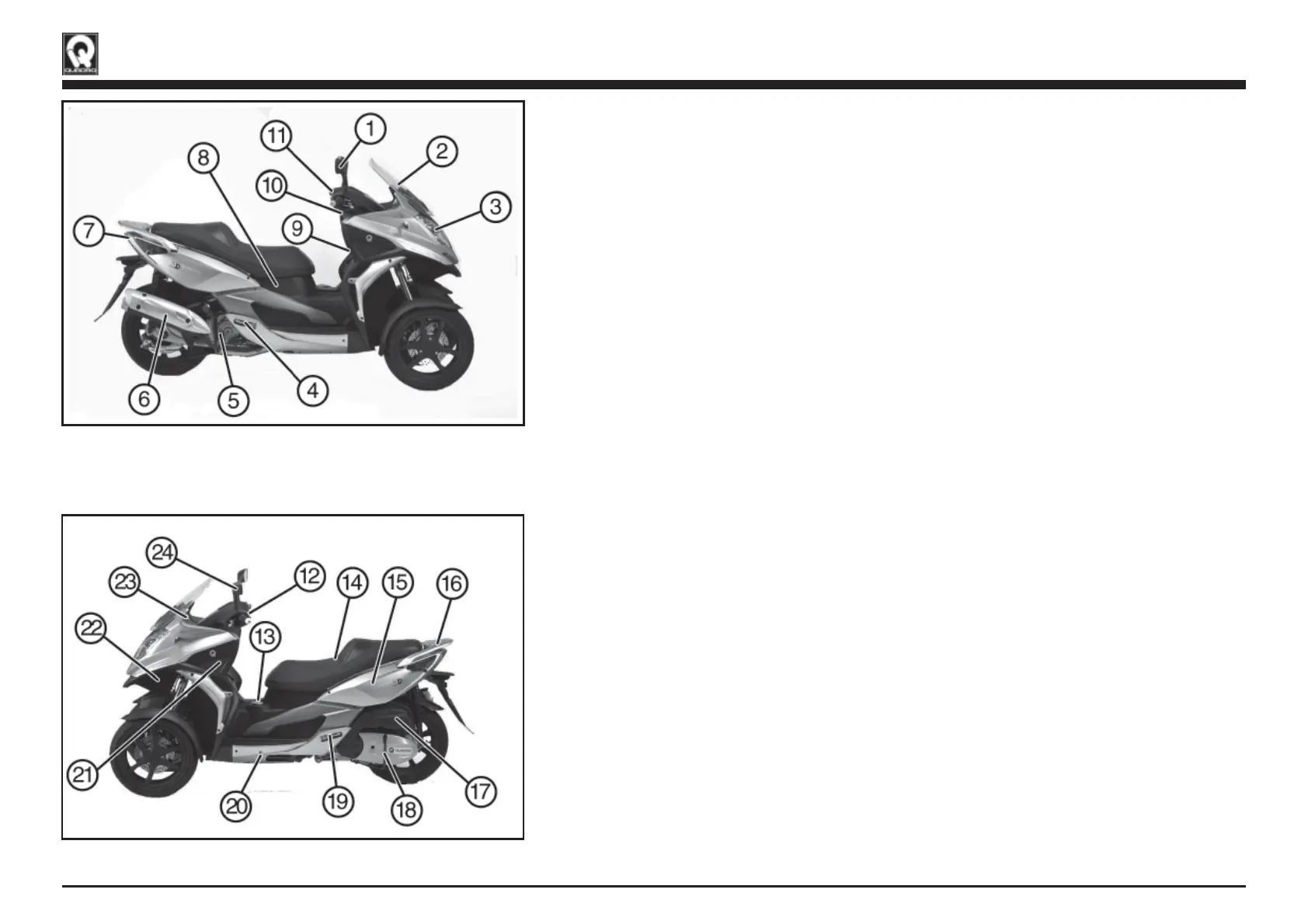

4.5 POSITION COMPONENTS
Right-hand View (Fig. 01)
1 - Right-hand rear view mirror
2 - Windscreen
3 - Headlight assy
4 - Right-hand passenger footrest
5 - Engine oil dipstick
6 - Exhaust
7 - Taillight assy
8 - Spark plug
9 - Front glove box
10 - Ignition switch
11 - Right handlebar switches
Left-hand View (Fig. 02)
12 - Left handlebar switches
13 - Tank filler cap
14 - Seat
15 - Fuse box
16 - Rear luggage rack
17 - Airbox
18 - Centre-stand
19 - Passenger footrest (lhs)
20 - Expansion tank
21 - Battery
22 - Horn
23 - Instrument panel
24 - Rear view mirror (lhs)
VEHICLE DESCRIPTION
