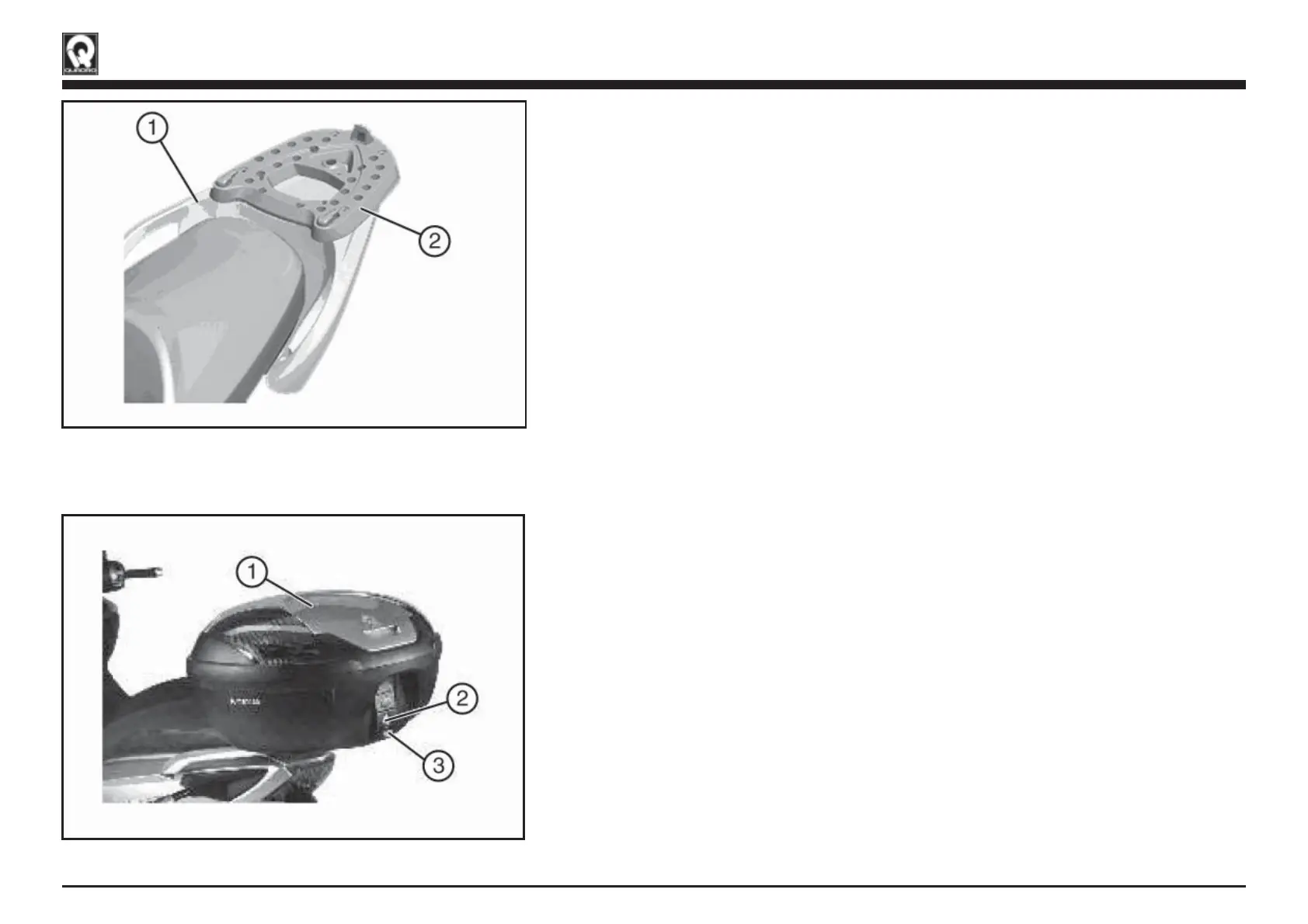

4.18 REAR LUGGAGE RACK
This vehicle is fitted with a luggage rack «1» which allows you to fit an
approved top case. Under any circumstance, the maximum loading may
not be exceeded.
Maximum load: 5,0 Kg
Fig. 02
QSI0028
4.19 TOP CASE
An approved top case «1» may be fitted to the vehicle for greater
loading capacity.
Assemble the top case on the relevant supplied mounting plate
«2 - Fig. 01» and follow the assembly instructions attached.
To open the top case, proceed as follows:
• Using your case key, turn the lock «2».
• Press the release button «3» and lift the top half of the case.
(Fig. 01)
(Fig. 02)
