37
Fig. 01
QSI0024
Fig. 02
QSI0039

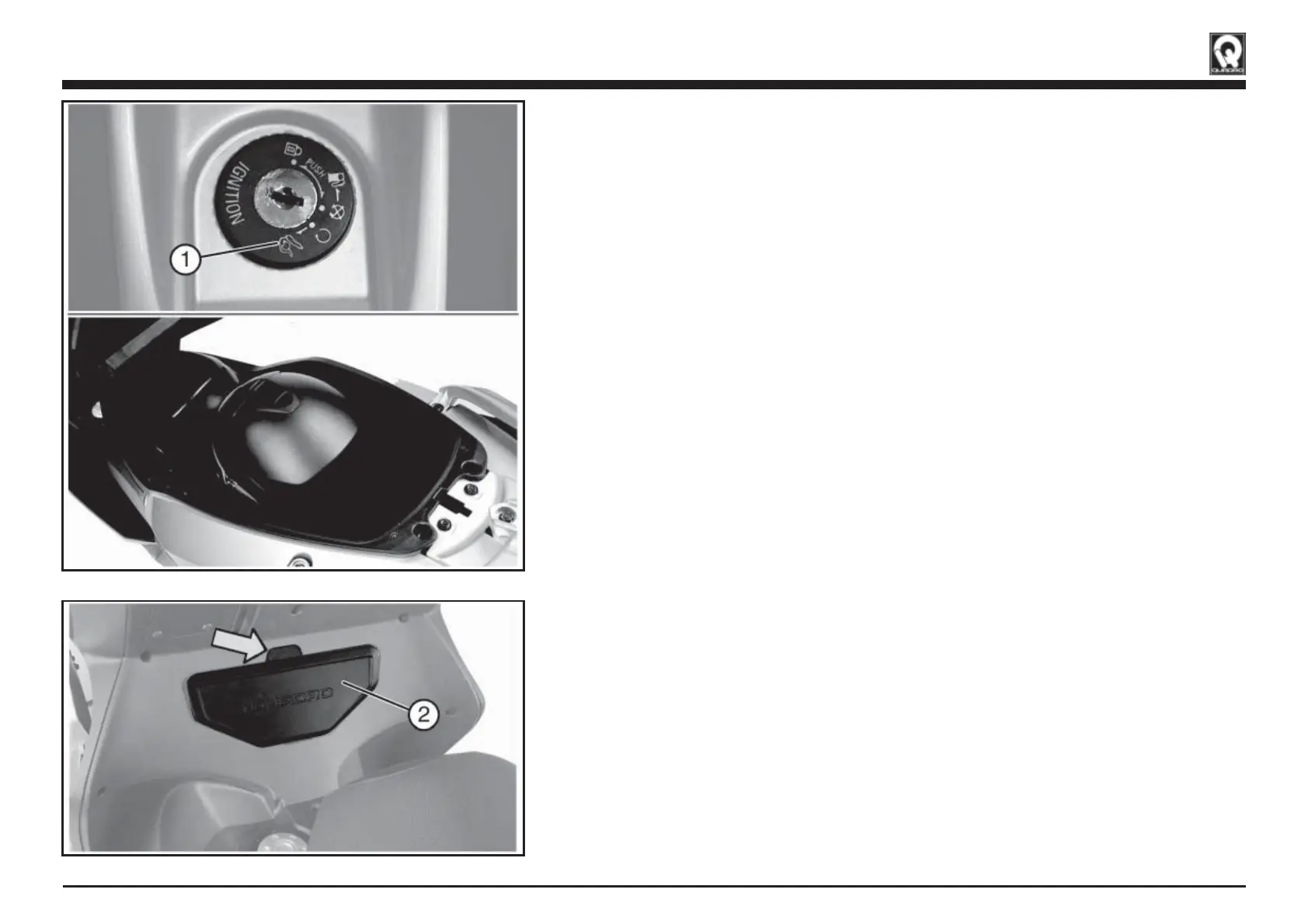

4.16 HELMET COMPARTMENT
To gain access to the helmet compartment, proceed as follows:
• Use your key to rotate the ignition switch clockwise up to the seat
opening position «1» .
• Lift the seat
• Access the helmet compartment.
The helmet compartment can fit one full face and one jet type helmet.
To close the seat, proceed as follows:
• Do not let the seat fall from the fully open position. Lower it on the
lock and slightly press it down in order to engage the seat on the
lock.
4.17 FRONT GLOVE BOX
To gain access to the front glove box «2», press in the point shown
in the figure and open the glove box flap.
Maximum load: 1,5 kg
(Fig. 01)
(Fig. 02)
VEHICLE DESCRIPTION
