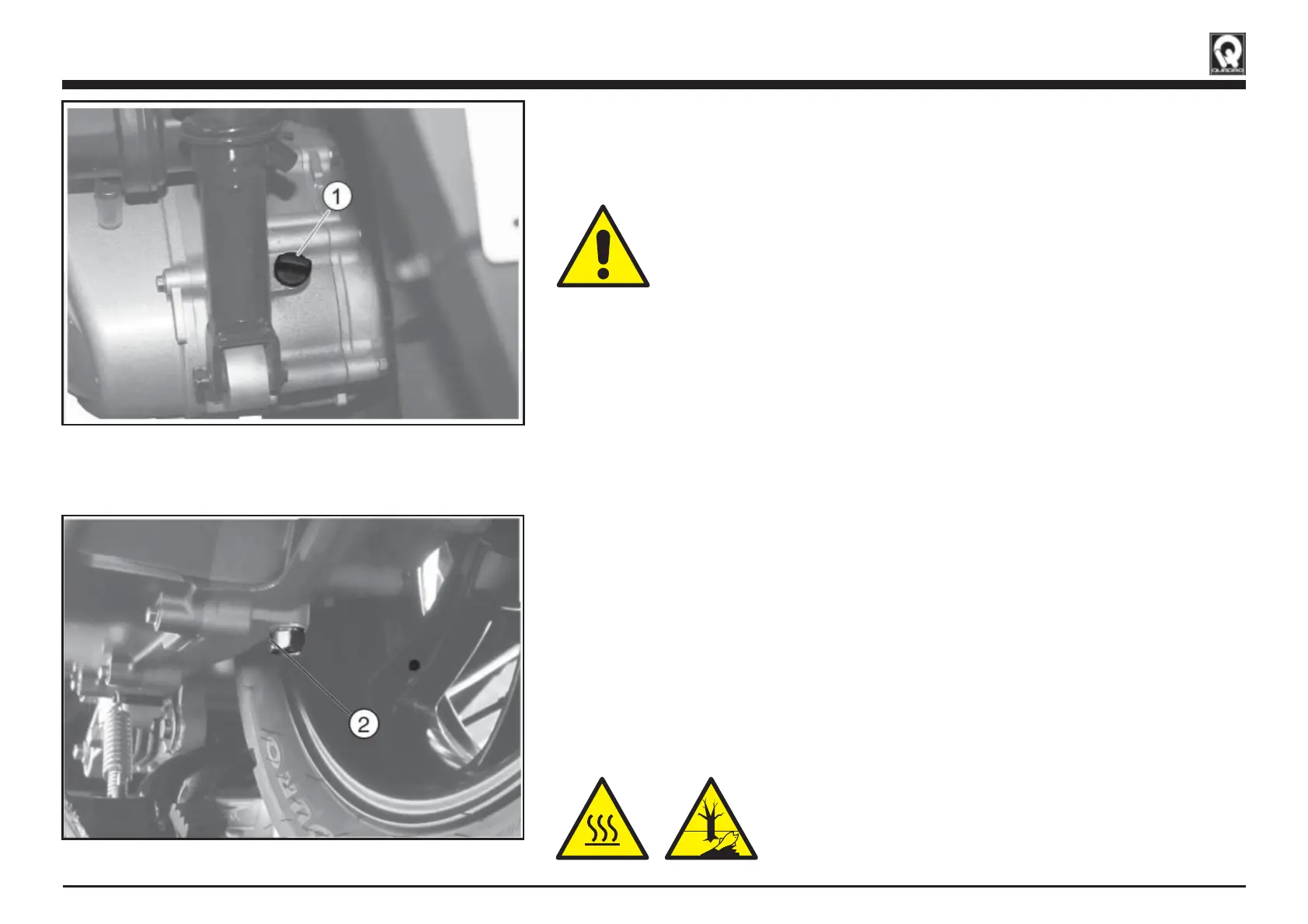

Fig. 01
QSI0007
Fig. 02
QSI0008
6.5 FINAL DRIVE OIL
MAINTENANCE VEHICLE
The final reduction oil must be changed at the intervals listed in the
scheduled maintenance table.
LEVEL CHECKS (Fig. 01)
Before use check that there are no oil leaks from the final drive box.
If there are, have the scooter repaired by an authorised QUADRO
dealer
Let the engine cool down before carrying out any main-
tenance operation.
REPLACEMENT (Fig. 02)
• Switch on the engine, heat the final drive oil by running for a few
minutes, then switch off.
• Position a suitable container directly underneath the drain hole.
• Remove the filler plug «1- Fig. 01».
• Unscrew the drain plug «2 - Fig. 02», store the washer away and
drain all oil.
• Refit and tighten the drain plug «2 - Fig. 02» and using a syringe fill
up to the correct level with the recommended oil type.
Final drive oil: SAE 80W-90 (200 cm³)
Oil may be hot, pay attention.
Always dispose of used oil responsibly.
For its disposal, please observe your local re-
gulations.
