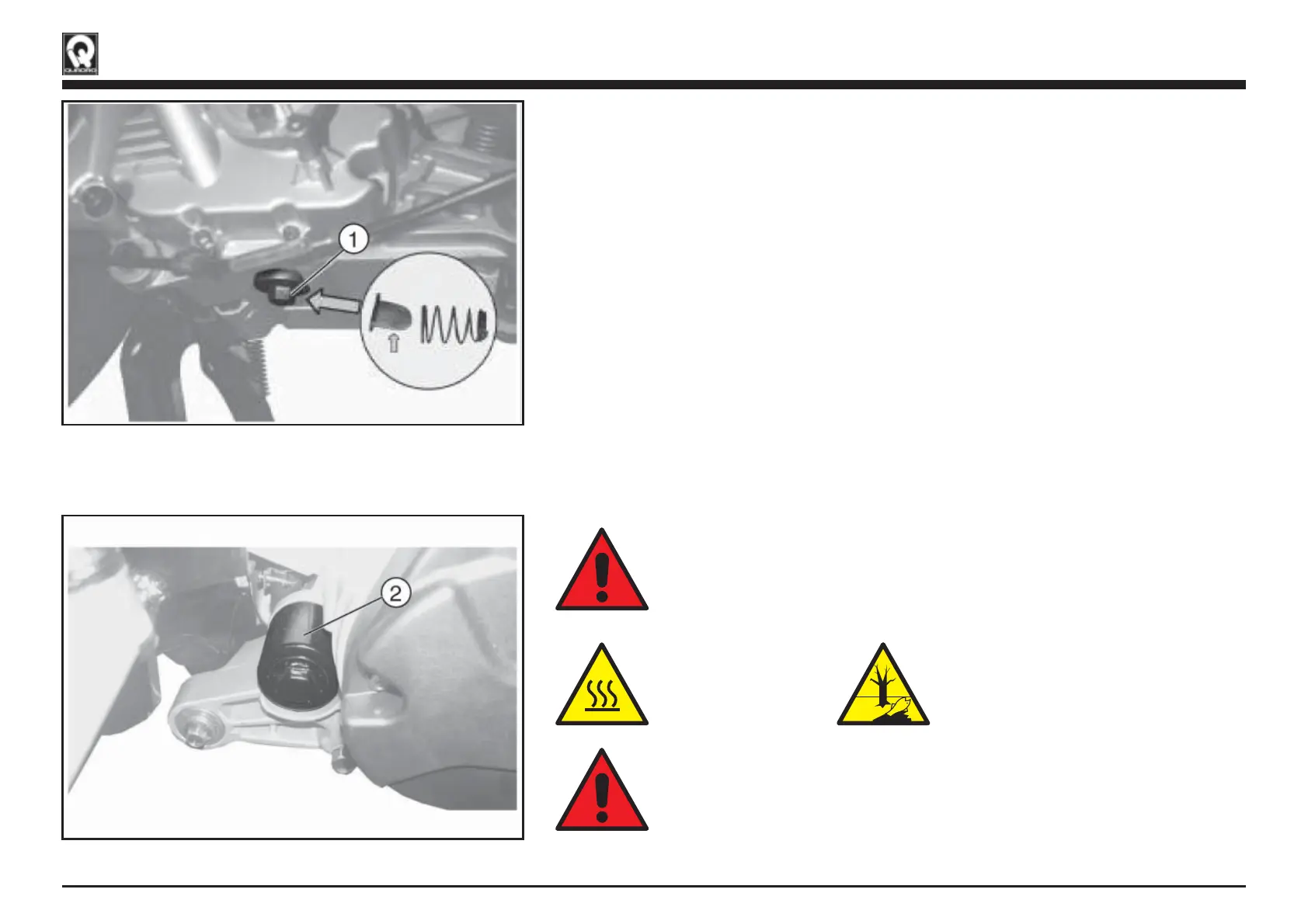

REPLACEMENT (Fig. 01)
Oil may be hot,
pay attention
Do not disperse used oil in
the environment. Disposal
of engine oil is regulated by
law.
MAINTENANCE VEHICLE
An excessive quantity of engine oil may cause reduced
performance, reduced peak speed and engine overhea-
ting
It is highly recommended that you have these opera-
tions performed by an authorised service centre or qua-
lified personnel.
• Warm up the engine for approximately 5 minutes, then switch off.
• Loosen and remove the oil drain plug «1 - Fig 01». The spring and
oil strainer screen, will come out with the drain plug. Remove the
oil filter cartridge «2 - Fig. 02» and replace with a new oil filter.
• Clean the oil strainer screen, refit together with the spring and the
drain plug «1 - Fig 01», then tighten to the specified torque.
• A small amount of oil remains in the engine crankcase, fill up with
approx. 1.6 litres with new recommended oil (1.7 litres in case oil
filter replaced).
• Check the oil level and top up until the minimum oil level has been
reached.
Tightening torque specifications (Nm)
Oil drain plug: 15
