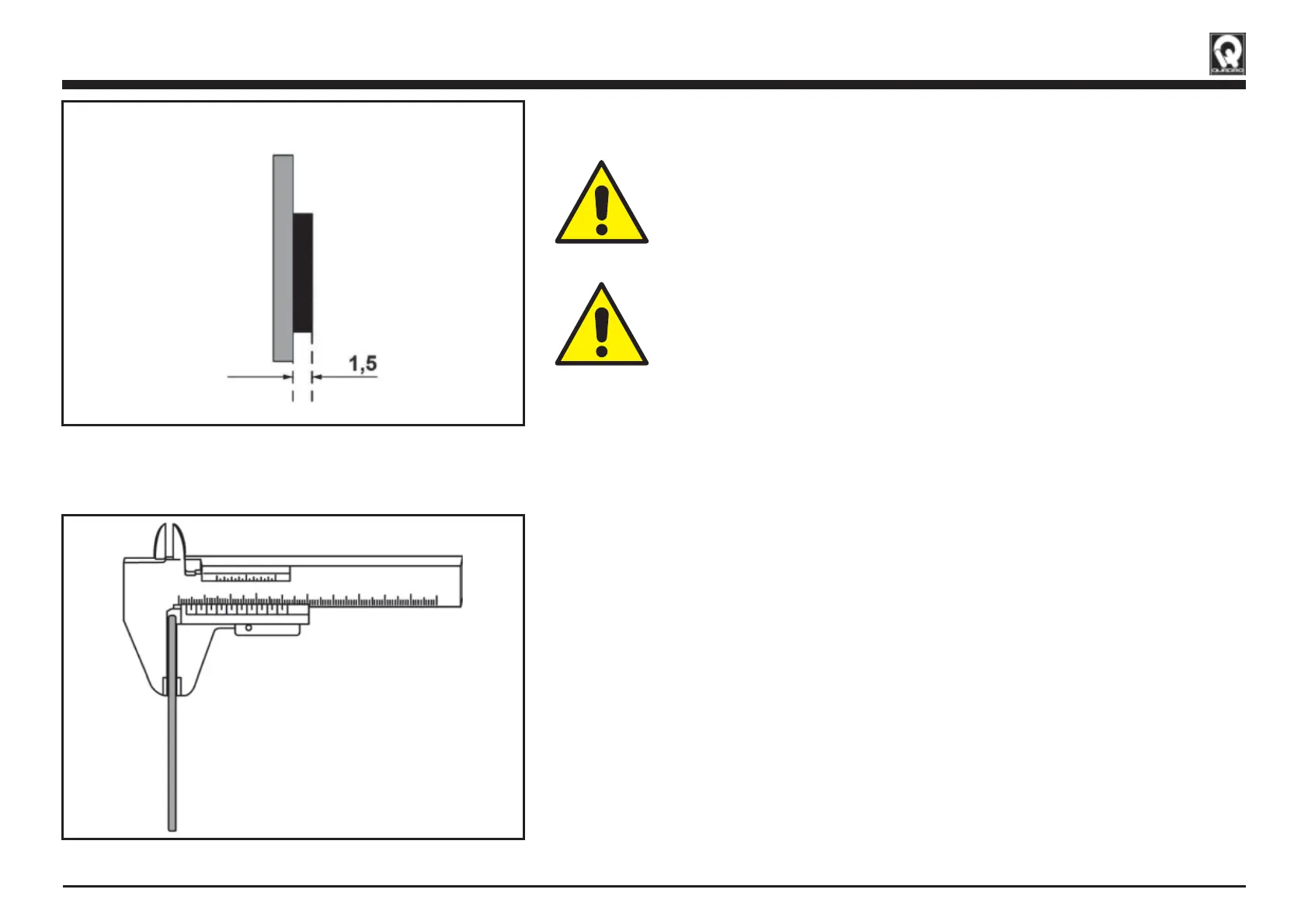

If the lining thickness of any pad is less than 1.5 mm (0.06 in), replace
all the pads on the wheel.
Riding with brake pads worn beyond the limit stated
above may cause the pad itself to come into direct
contact with the brake disc, damaging the disc.
Do not ride the vehicle immediately after replacing the
brake pads. You must first apply the brake lever seve-
ral times until the calliper pistons settle and the correct
lever travel is restored.
BRAKE DISCS
• Rest the vehicle on its centre stand and on level ground.
• Using a Vernier calliper, check the thickness of the brake disc.
• If the thickness is lower than the wear limit, have your disc replaced
by an Authorised Service Centre.
Front disk thickness: 4 mm Wear limit: 3,5 mm
Rear disk thickness: 5 mm Wear limit: 4,5 mm
