Qualcast CDB30A User Manual

1514
Customer Helpline 0845 034 2279
www.gardenservicecentre.co.uk
Customer Helpline 0845 034 2279
www.gardenservicecentre.co.uk

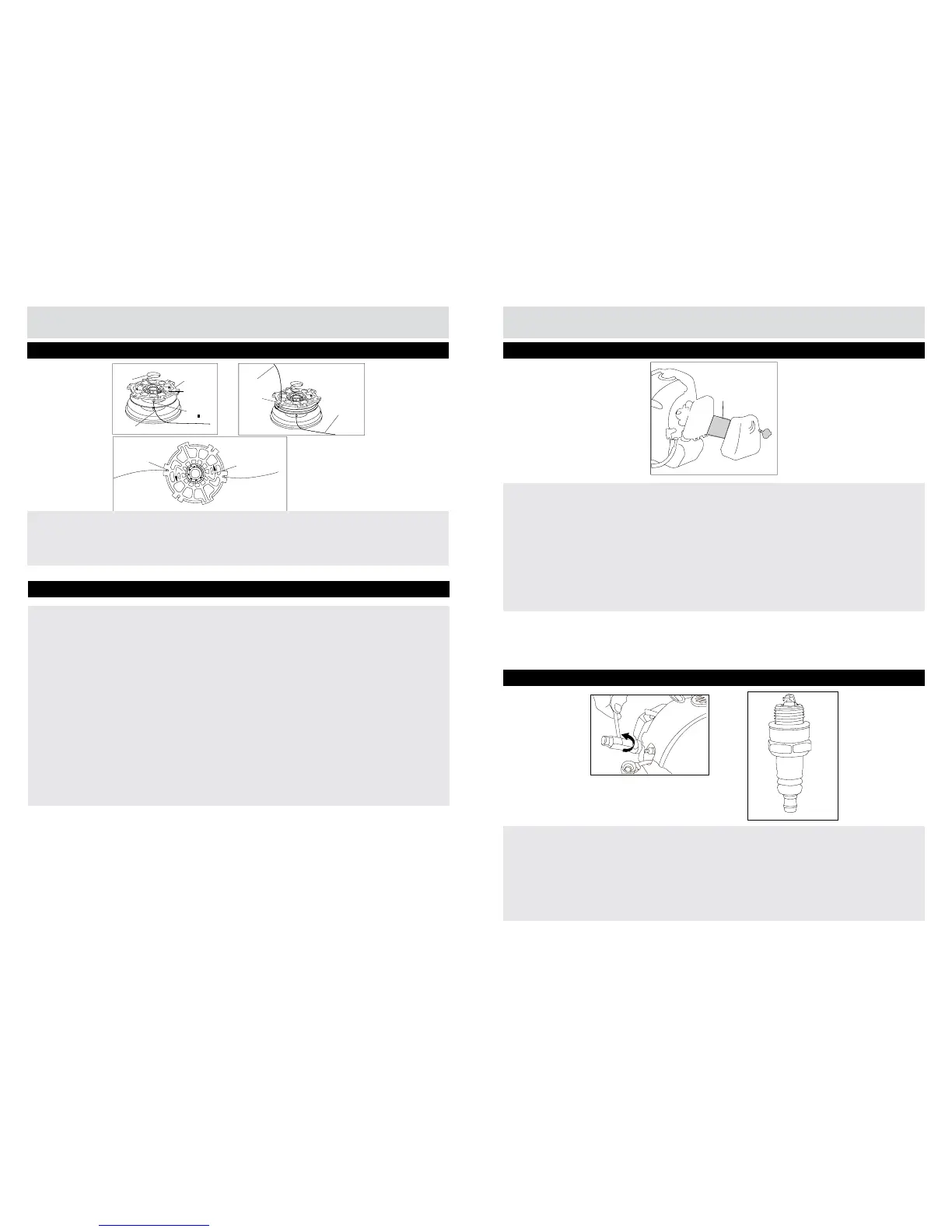

Cleaning the Air Filter
Replacing the Spark Plug
Cleaning the air lter
1) Loosen the screw from the air lter housing and remove the cap.
2) Remove the air lter.
3) Wash the air lter in warm water (with a small amount of detergent).
4) Rinse the air lter through with clean water.
5) Leave the air lter to dry out completely.
6) Replace the air lter.
7) Replace the cover with the lugs positioned in the notches in the air lter casing.
8) Close the lid, and tighten the bolt again by hand.
Replacing the spark plug
(Spark plugs: L8RTF).
1) Pull off the ignition cable plug.
2) Use the multifunctional tool to unscrew and remove the spark plug.
3) Insert a new spark plug and tighten it carefully with the multifunctional tool.
4) Slip the ignition cable plug back on.
Filter
H=0.6-0.7 mm
How to Replace the Spool/Spool Line
Step 2 - Replacing the spool line in the spool
SPRING
SPOOL
ANCHOR
HOLE
ARROWS ON
SPOOL
SLOT
SLOT
ARROWS ON
SPOOL
FIRST LINE
SECOND LINE
FIRST LINE
– Completely remove the remains of the spool.
– Make a nick in the middle of the new line, and hook it into the slot in the spool.
– Wind on a spool line on each side of the spool in the direction of the arrow.
Step 3 - Inserting the line spool
l
– Press both lines into opposite slots (line length about 15 cm).
– Thread both lines into the openings of the spool casing.
– Carefully push the line spool with its spring into the spool casing. When doing so, pull the lines
out through the eyelets.
– Continue to hold the line spool tightly. One after the other give a tug on the lines so that they
run out of the openings freely.
– Press the line spool in, and turn it clockwise as far as the stop.
– Keep hold of the line spool and twist it slightly back. The line spool must remain rmly xed in
the pushed in position.
– Screw the cover back onto the line spool and turn it tight by hand. Adjusting the lines to the
right length.
– Push on the underside of the line spool by hand and pull out both lines out until they are
somewhat longer than the edge of the protective bonnet. The lines are trimmed to the correct
length by the line trimming knife.

Qualcast CDB30A Specifications

General

Brand	Qualcast
Model	CDB30A
Category	Brush Cutter
Language	English
