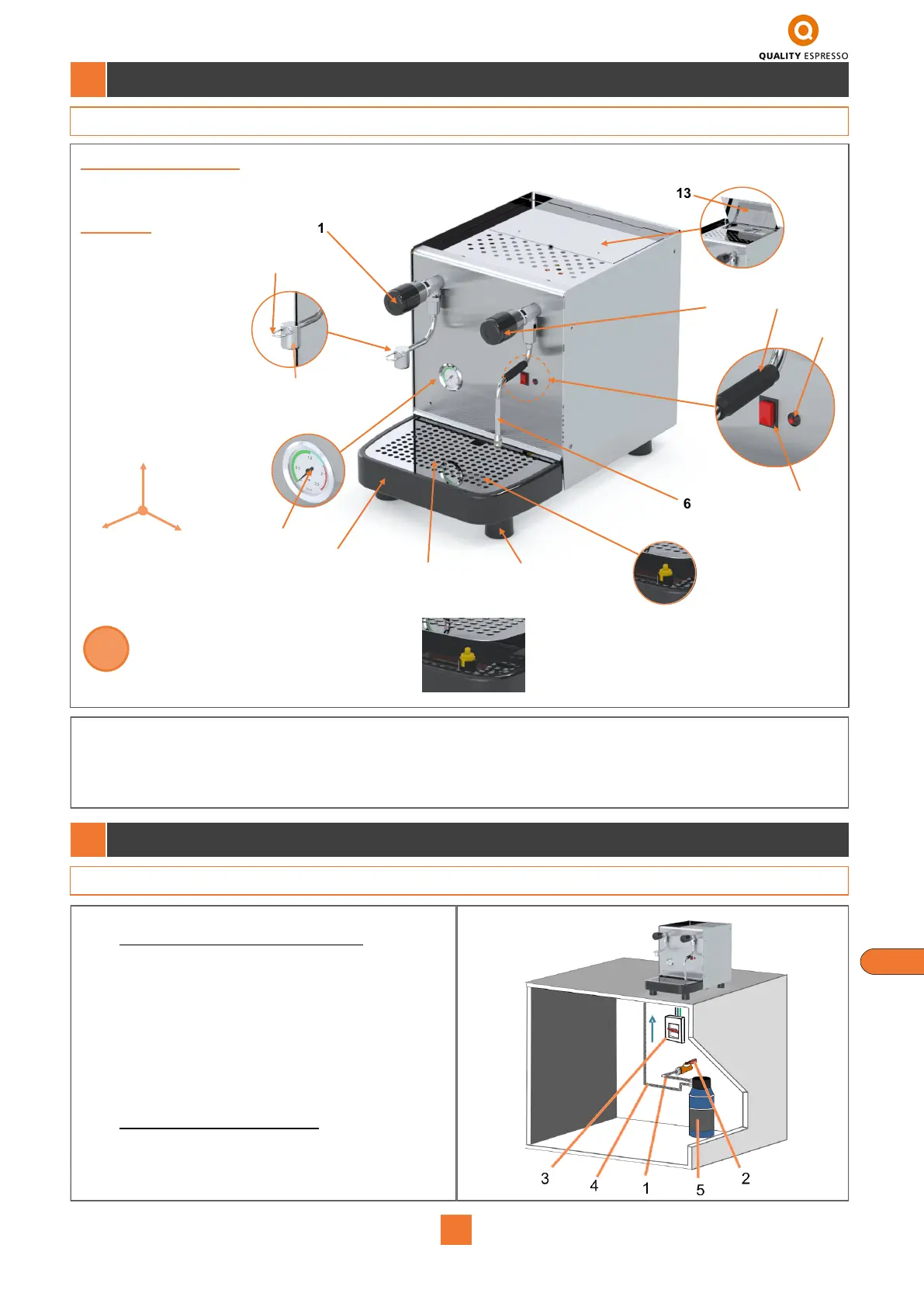

Quality Espresso Steam Cube - General Overview; Prior to Installation

Verify the level indicator and empty the
tray if necessary. These machines drain the
water through the mains tray, without being
externally connected to a general drain. For this
reason they incorporate a level indicator.
2.1 General Overview
32
2.
General Description of the Water / Steam Dispenser
Mains water connection
Power: 2500 W
Boiler capacity: 5L.
Inbuilt tank
Power: 2500 W
Boiler capacity: 1,5L.
1 - Hot Water Tap 6 - Steam Arm 11 - Hot Water Outlet
2 - Steam Tap 7 - Feet 12 - Hot Water Outlet Handle
3 - Steam Arm Protector 8 - Drip Tray 13 - Lid for Inbuilt Tank (Where aplicable)
4 - Boiler Level Light 9 - Drain Tray
5- Power Switch 10 - Boiler Pressure Gauge
3.
Installation and Start-up
3.1 Prior to Installation
Verify before installing:
 Models with mains water connection
1. Water supply tube (supplied with machine) from
mains to water softener.
2. Stopcock with 3/8” G exit.
3. Grounded plug protected with a magneto-thermic
circuit breaker.
4. Water supply tube (supplied with machine) from
water softener to the machine
5. Water softener
 Models with inbuilt water tank
3. Grounded plug protected with a magnetothermic
circuit breaker
EN
i
A
B
C
A= 360 mm
B= 290 mm
C= 480 mm
13
1
12
11
9
2
5
6
7
8
Water Level Indicator
4
3
10
