QUALITY LIFTS EQ10 - General Specifications

Model EQ10
Installation, Operation and Maintenance
Page 2
Rev. 11/30/2020
EQ10-IOM-Q.
doc
GENERAL SPECIFICATIONS
* Lift capacity ratings are based on loads equally distributed on all four arms.
** Lifting and lowering speeds may vary depending on the weight of the vehicle.

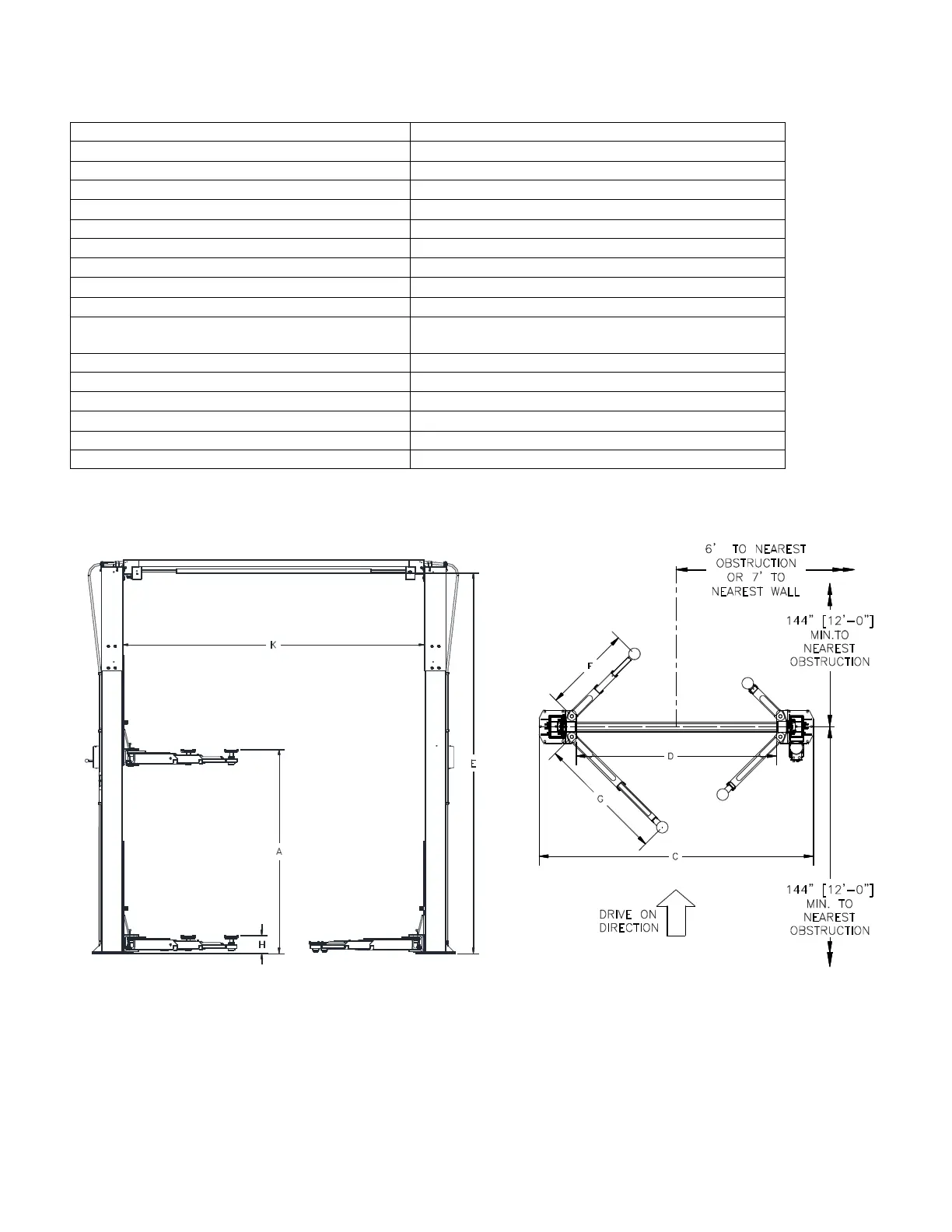

Fig. 1a - General Specifications Fig. 1b - Service Bay Layout
See Figure 1 EQ10
A Rise Height (Screw Pads Highest Position)
72 1/4"
(1899 mm) (75 1/4" (1975 mm) with Adapter)
B Overall Height
143 7/8"
(3655 mm)
C Overall Width
131 3/4"
(3347 mm)
D Drive-Thru Clearance
98 3/8"
(2499 mm)
E Floor to Overhead Switch
137"
(3482 mm)
F Short Arm Reach
21 3/4"-39 1/4"
(553 mm-998 mm)
G Long Arm Reach
38 3/4"-55 3/8"
(971 mm-1407 mm)
H Screw Pad Height
4 1/4"
(108mm-172 mm)
K Inside of Columns
110 1/4"
(2800 mm)
Lifting Capacity *
(Hydraulic Pressure at Cap.)
10,000 lbs.
(2800 psi)
Ceiling Height Required
144"
(3658 mm)
Motor
2HP, Single Phase, 60Hz
Voltage
208-230
Speed of Rise **
44 seconds
Max Load Per Arm
2500 lbs
(1134 kg)
Lift Approximate Weight
1750 lbs
