Chapter 1
21
QBOX-4000 Series User’s Manual

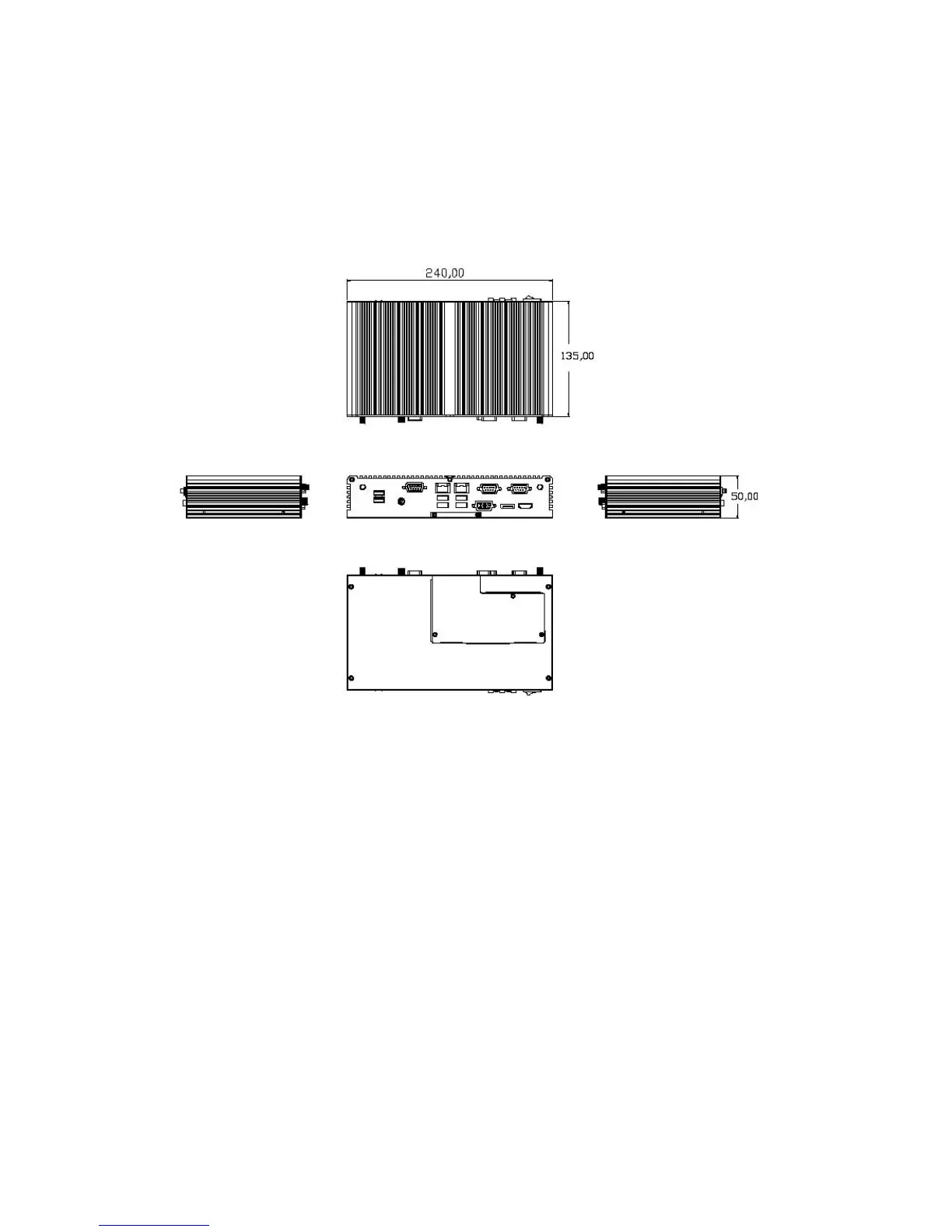

Mechanical Dimensions
Dimension: 240 x 135 x 50 mm (W x D x H)
Figure 3 Mechanical Dimensions
