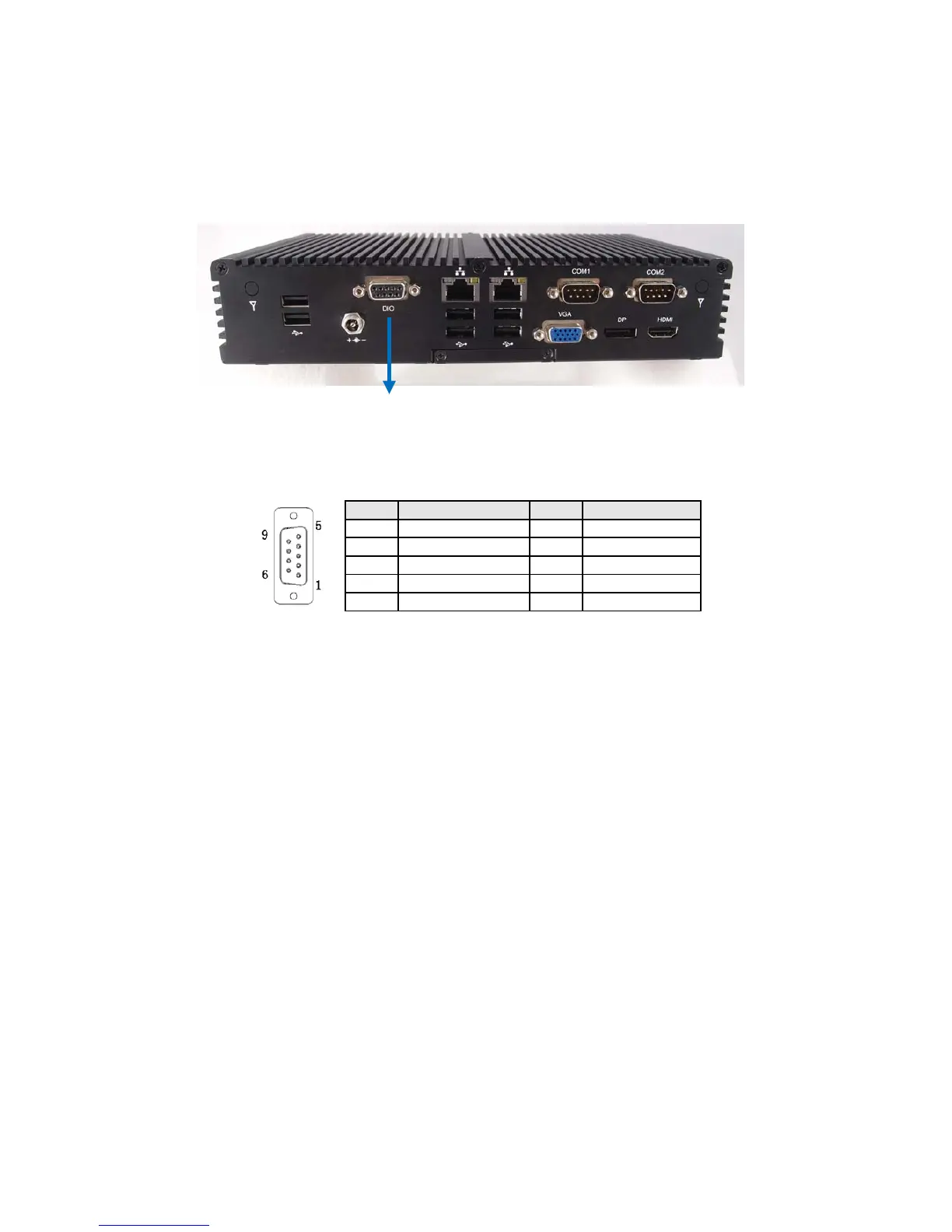

Chapter 2
25
QBOX-4000 Series User’s Manual
DIO
Digital Input / Output
DIO port with the pin definition.
Digital Input / Output D-SUB 9P
Pin
Signal
Pin
Signal
1
Digital Output 0
2
Digital Input 0
3
Digital Output 1
4
Digital Input 1
5
Digital Output 2
6
Digital Input 2
7
Digital Output 3
8
Digital Input 3
9
+5V
Figure 8 DIO port
