780 Handheld Test Instrument Page 36
5.2.2 Procedures for Testing and Viewing the EDID on an HDMI Sink Device
Use the procedures below to run an EDID test on an HDMI sink.

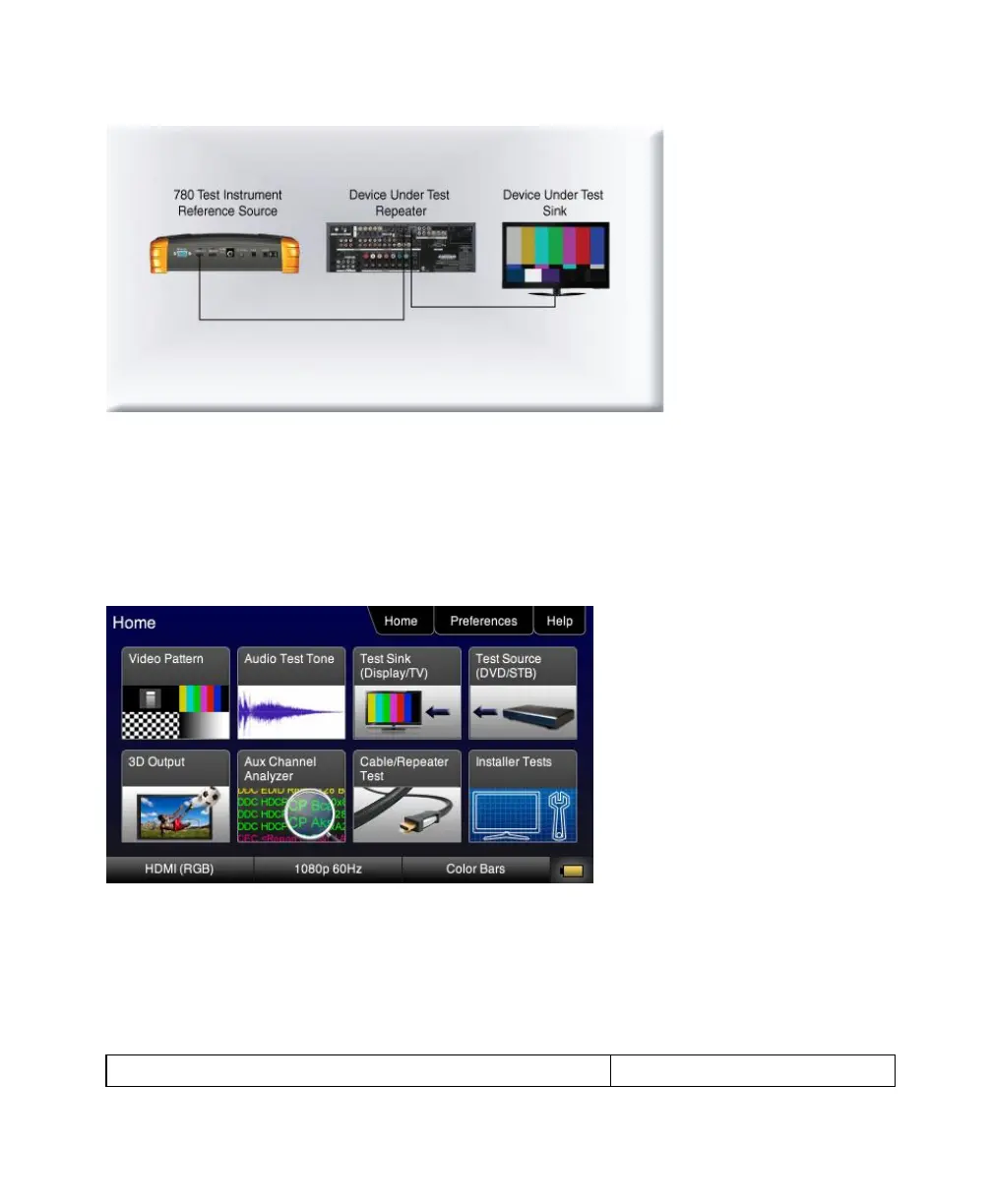

1. Make the physical connections between the 780 HDMI OUT connector and the display device under test.
2. Enable the HDMI output using the procedures at Selecting a Signal Type and Resolution.
3. Touch select Test Sink (Display/TV) from the top level menu shown below.
4. Touch select EDID Test from the Sink Tests menu shown below.
To Next Page
