780 Handheld Test Instrument Page 59
6.4.2 Procedures for Testing Audio on an HDMI Source Device
Use the following procedures to test the audio from an HDMI source device.

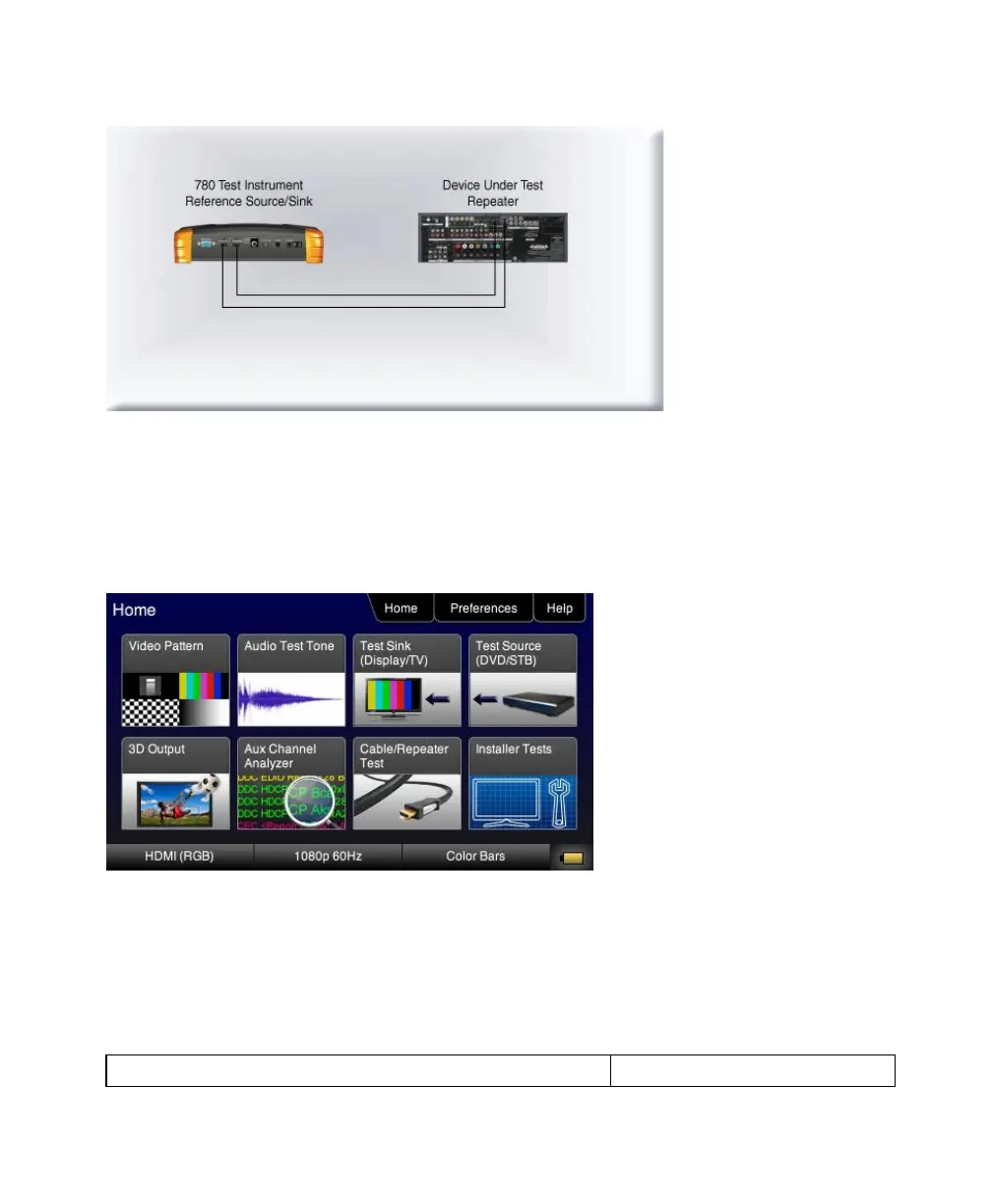

1. Make the physical connection between the 780 HDMI IN port and the source device under test using the
configuration instructions above.
2. Select Test Source (DVD/STB) from the top level menu shown below.
3. Touch select Audio Analyzer from the Sources Test menu shown below.
To Next Page
