780 Handheld Test Instrument Page 61

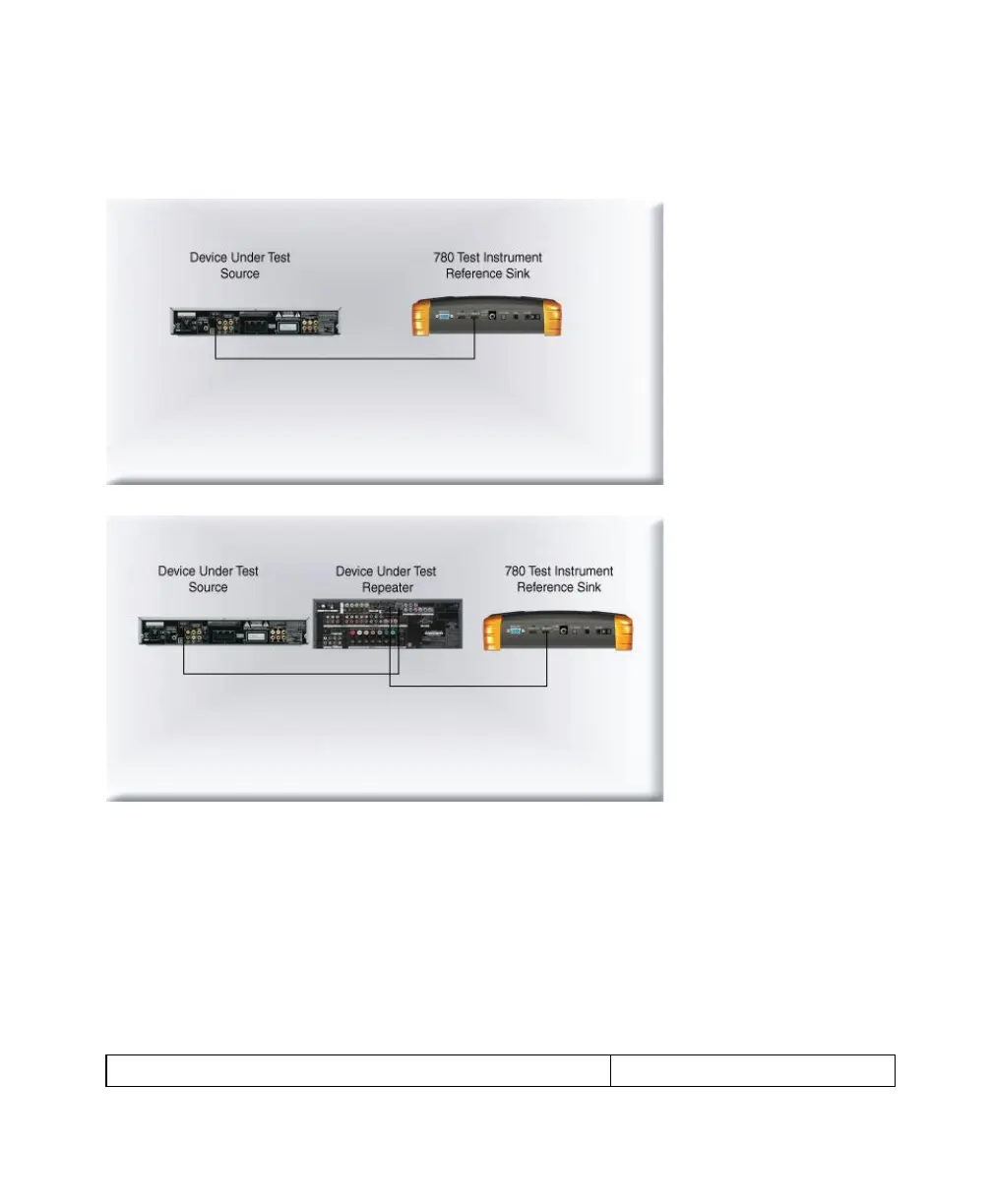

You can run this test in two configurations: 1) with your source device connected directly to the 780, 2) with your source
device connected to the 780 through a repeater device. In both cases the 780 is emulating an HDMI sink to test an
upstream source. These configurations are shown below.
6.5.2 Procedures for Testing an HDMI Source Devices Response to an EDID
Use the following procedures to test the EDID response from an HDMI source device.
1. Touch select Test Sink (Display/TV) to access the EDID test from the top level menu (shown below).
