Quantum Opus Opus One User Manual

1 Introduction
The Opus One is a high-speed, high-efficiency, fiber-coupled, single-photon detection system
using superconducting nanowire technology. The system can contain between one and thirty-two
nanowire detectors, depending on configuration.
Compressor
Pressurized helium
compressor lines
Power
Cooling water
SNSPD Bias and
Amplification Module
Opus One
1
n
2
. . .
. . .
. . .
Nanowire cable(s)
SMA M-M Double-Shielded
Thermometer
Cable DB9 M/F
Light in
(Fiber)
Power
USB 2.0
1
n
2
. . .
. . .
Pulse out
(SMA)
1 2 n
. . .
1 2 n
. . .
Cold head
drive cable
Compressor Unit
Opus One Unit
Electronics Unit
(QOELEC)

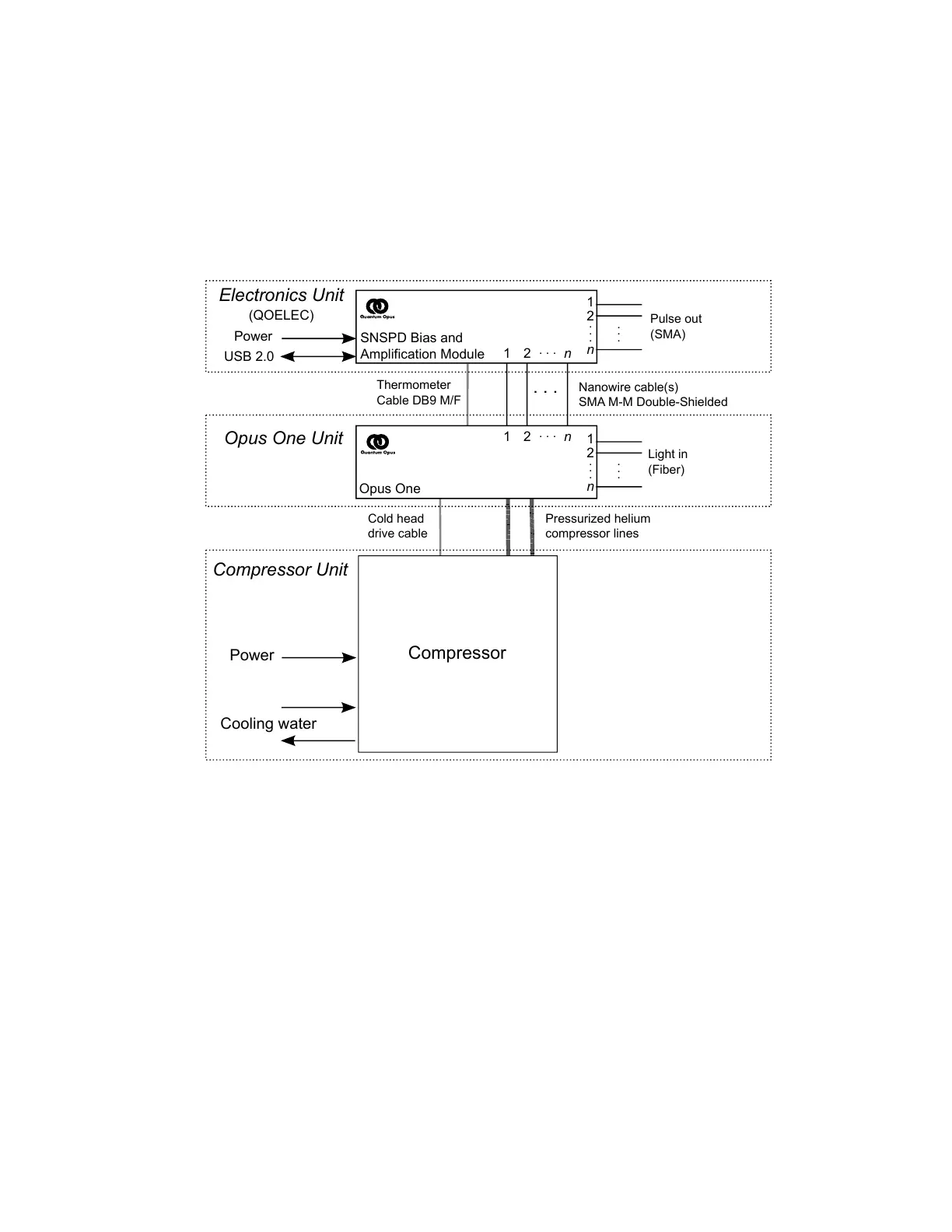

Figure 2: Nanowire system schematic showing Opus One head unit, electronics unit, and com-
pressor with all connections.
1.1 Overview
The nanowire system has three main physical components, as identified in Figure 2:
1. The “Electronics Unit” that provides system thermometry and nanowire device control and
monitoring.
2. The “Opus One Unit” consisting of the vacuum and cryogenic components, nanowire de-
tectors, and nanowire optical and electrical connections.
6
