Owners Manual Quantum Energy Technologies
Section 3: INSTALLATION
Trained, experienced personnel, who are familiar with local codes and regulations, especially
concerning refrigerant release to the atmosphere, must perform installation.
WARNING
Sharp edges and coil surfaces can cause personal injury.
Avoid contact with them.
3a: Handling
Be careful to avoid rough handling of the unit. Do not push or pull the unit by anything other than
the base. Block the pushing vehicle away from the unit to prevent damage to the sheet-metal
cabinet and end frame (see Figure 1).
To lift the unit, lifting slots are provided in the base of the unit. Arrange spreader bars and cables
to prevent damage to the evaporator coils or cabinet (see Figure 2).

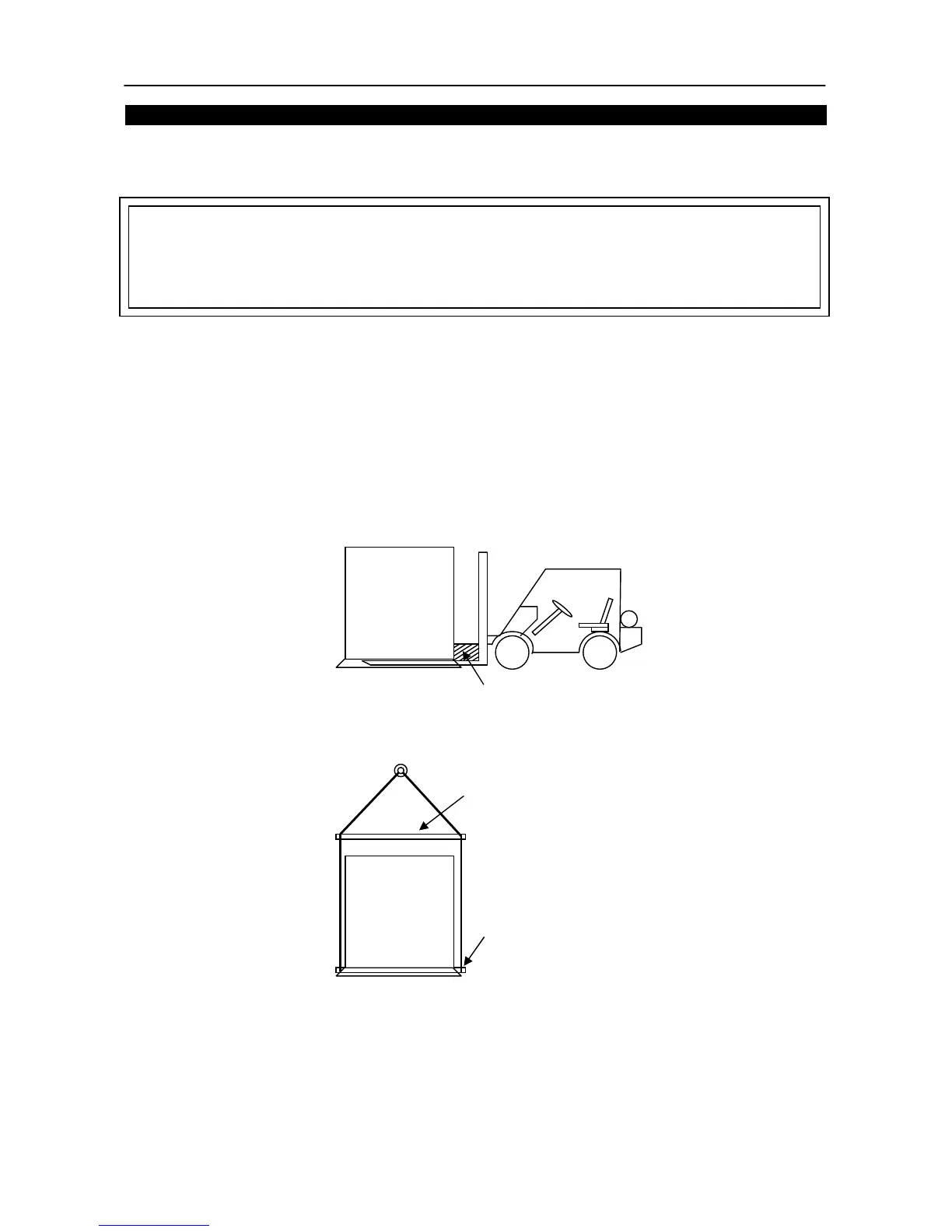

Figure 1: Suggested Pushing Arrangement
Blocking required across full width, 300mm
Figure 2: Suggested Lifting Arrangement
Pipe Slung Through Openings in Legs (2)
Spreader Bar (2)
Document Number : QDC0049PD-5 Page 9 of 33
