Assembly
quantum
MASCHINEN - GERMANY
© 2007
GB
Page 20 Drilling machine B 13 / B14 / B16 / B20 / B25 / B32 Version 1.2.5 18 / 01 / 2008
3.4.2 Installation
Check the horizontal orientation of the base of the drilling machine with a spirit level.
Attach the drilling machine to the base using the holes in the stand.
The place where the drilling machine is installed must comply with ergonomic workplace require-
ments.
ATTENTION!
Tighten the setscrews on the drilling machine only until it is firmly secured and can nei-
ther move during operation nor be turned over.
If the setscrews are too tight and the base is uneven, the stand of the drilling machine may
break.

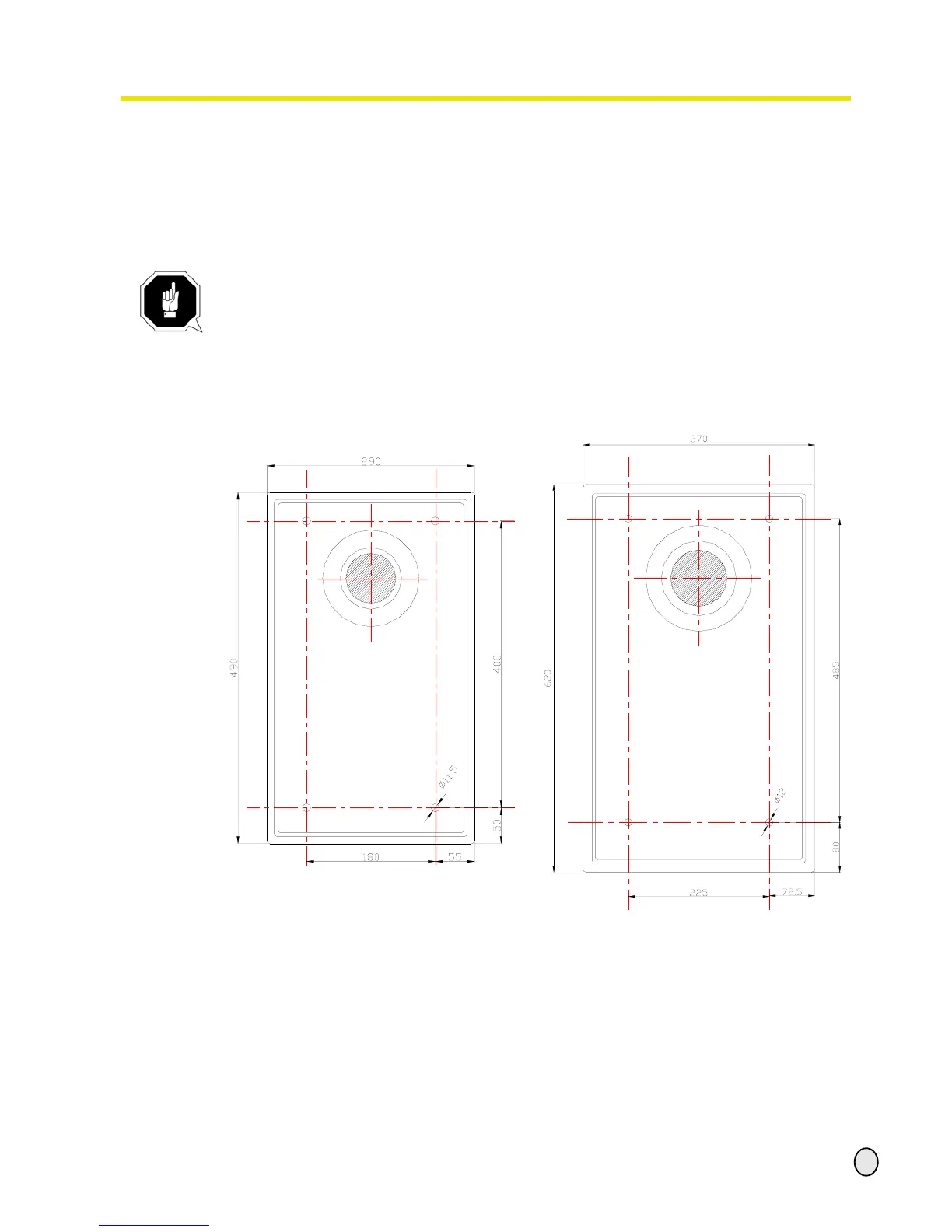

3.4.3 Installation drawings
B 25 / B32
Illustr. 3-8: B25 B32
