Drive Screen
The LCD screen, provides the current profile, drive operation,
and the speed adjustment settings.
Drive/Function Inhibit status is depicted as an icon at the top
left of the screen. Actuator adjustment will affect the inhibit
status. As your seat and/or back angle increases, a red icon
will indicate full drive lockout. If your power chair is equipped
with a seating system lift, a yellow icon will indicate speed
reduction as the seat is elevated. To return your power chair
to full speed, reverse operation.
To Access the Drive Screen from the Home Screen
1. Push the joystick up for the "Drive Screen."
NOTE: To access the Drive Screen from any other screen,
press the Mode Button until the desired Drive Profile
is reached.
BASIC OPERATION INSTRUCTIONS

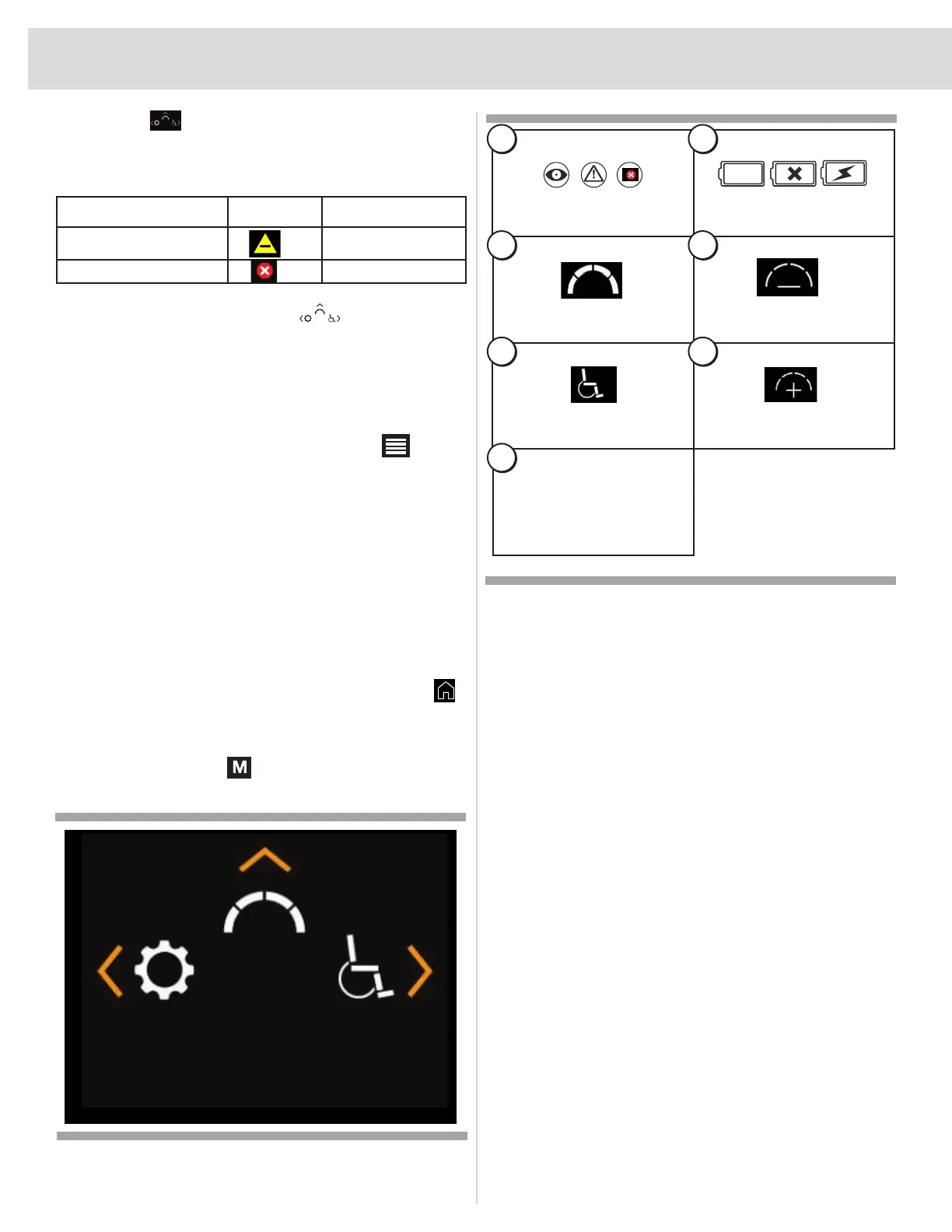

LCD Screen
The Q-Logic 3e provides the user with easily intuited
feedback information via the LCD screen. The top left corner
of the screen will indicate any drive restrictions.
No icon Full drive speed
Yellow Caution Icon Limited Drive Speed
Red Warning Icon Full Drive Lockout
1 2
3
4
5 6
7
Inhibit Status Indicator
Battery Indicator
Percentage of Full Speed of
Drive Indicator
Left Soft Key Indicator
Middle Soft Key Indicator Right Soft Key Indicator
Drive Indicator
Outdoor Graphic User Interface
The Q-Logic 3e includes an outdoor Graphic User Interface
that increases the contrast of the screen to make it easier to
be seen in natural light.
To switch from the indoor to outdoor Graphic User Interface
or from the outdoor to indoor Graphic User Interface, press
and hold page button until the screen changes.
