Quantum QG-4000

Chapter 6 Diagrams
HF Series X-ray Generator - Service Manual Revision W
Quantum Medical Imaging, LLC 6-8

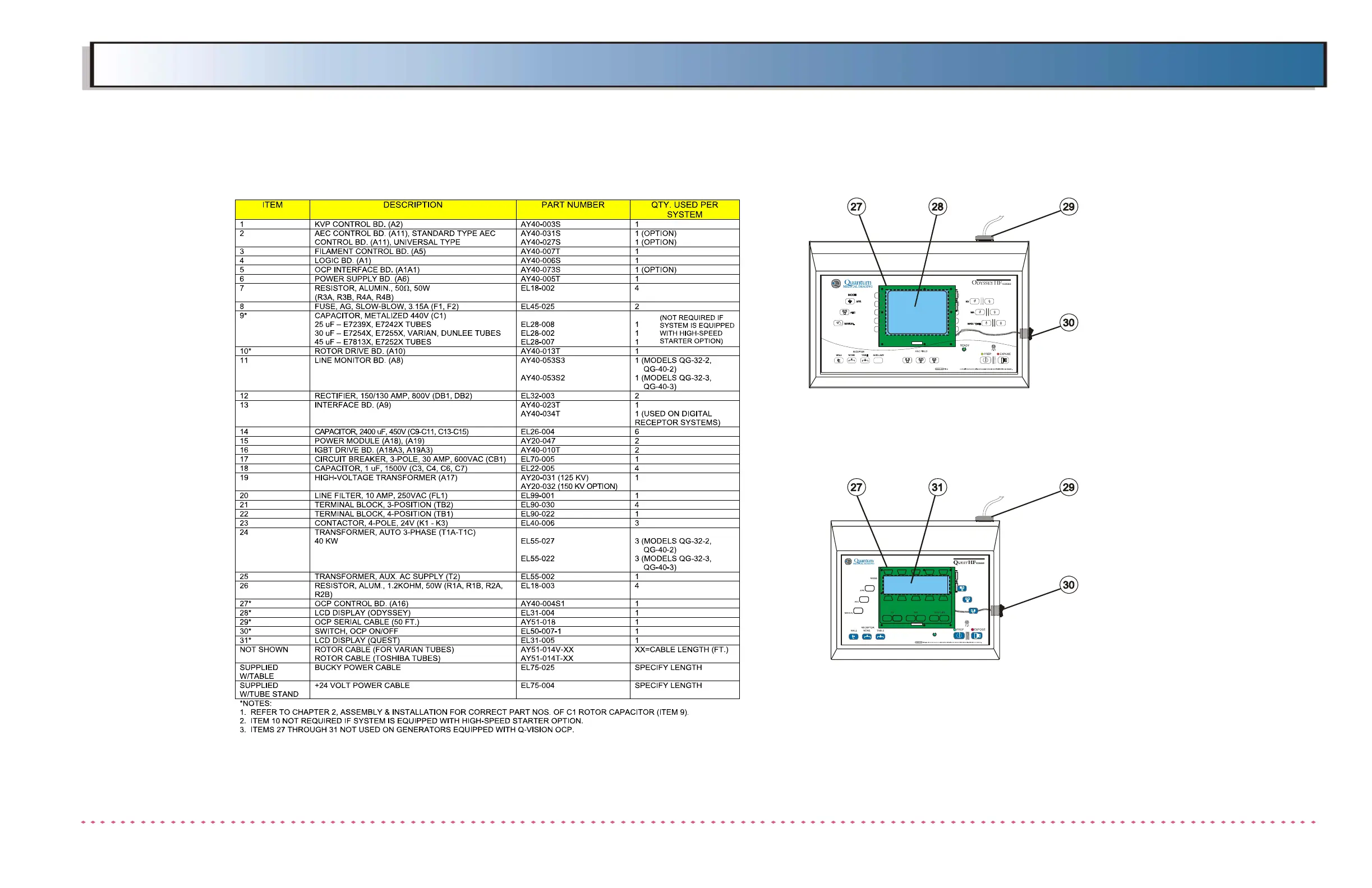

Figure 6-3. Three-Phase X-ray Generators, 32 and 40
kW Parts Location Diagram (Sheet 2 of 2)
32, 40 kW THREE-PHASE
PARTS LIST
(MODELS QG-32-2, QG-32-3, QG-40-2, QG-40-3)
AUX
R
E
A
D
Y
•
A
E
C
F
I
E
L
D
ODYSSEY OPERATOR CONTROL PANEL
(AY10-005)
A16
OCP CONTROL BD.
AY40-004S1
LCD DISPLAY
EL31-004
OCP CABLE
(50 FT.)
AY51-018
SWITCH, OCP
ON/OFF
EL50-007-1
QUEST OPERATOR CONTROL PANEL
(AY10-004)
A16
OCP CONTROL BD.
AY40-004S1
LCD DISPLAY
EL31-005
OCP CABLE
(50 FT.)
AY51-018
SWITCH, OCP
ON/OFF
EL50-007-1
