QF4400
QF5050
QF20K
Standard
orientation
=
Optimized
drainability
Pump drive
horizontally
(standard)
inlet up,
outlet down
(standard)

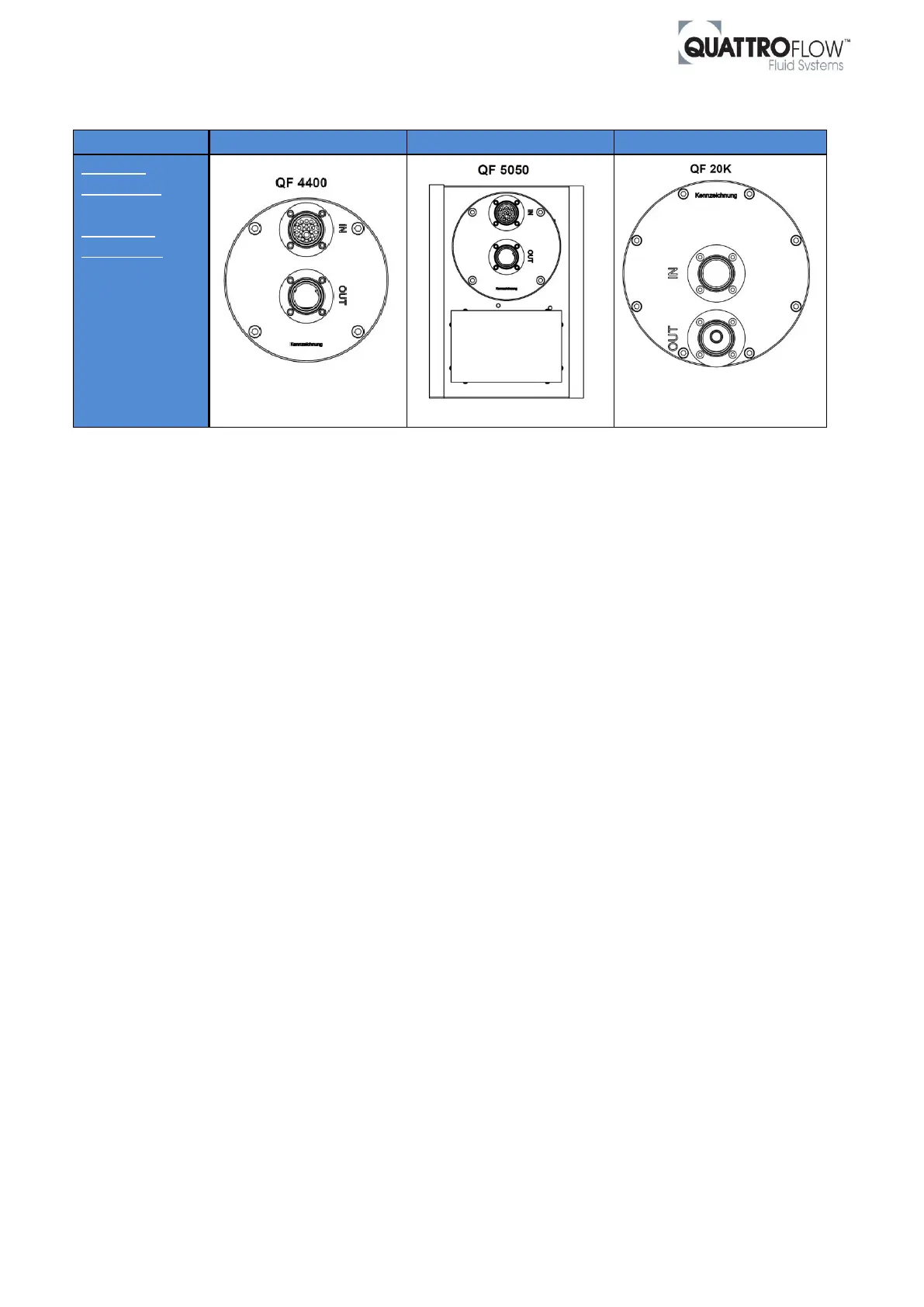

Table 11 Standard and optimized orientation of QF pump chambers (QF4400, QF5050, QF20K).
