QLM100 User Manual
TRACQLM100UM001 - 12 -
3. Getting Started
3.1. Module & EVB
The QLM100_EVB can be used to test module.

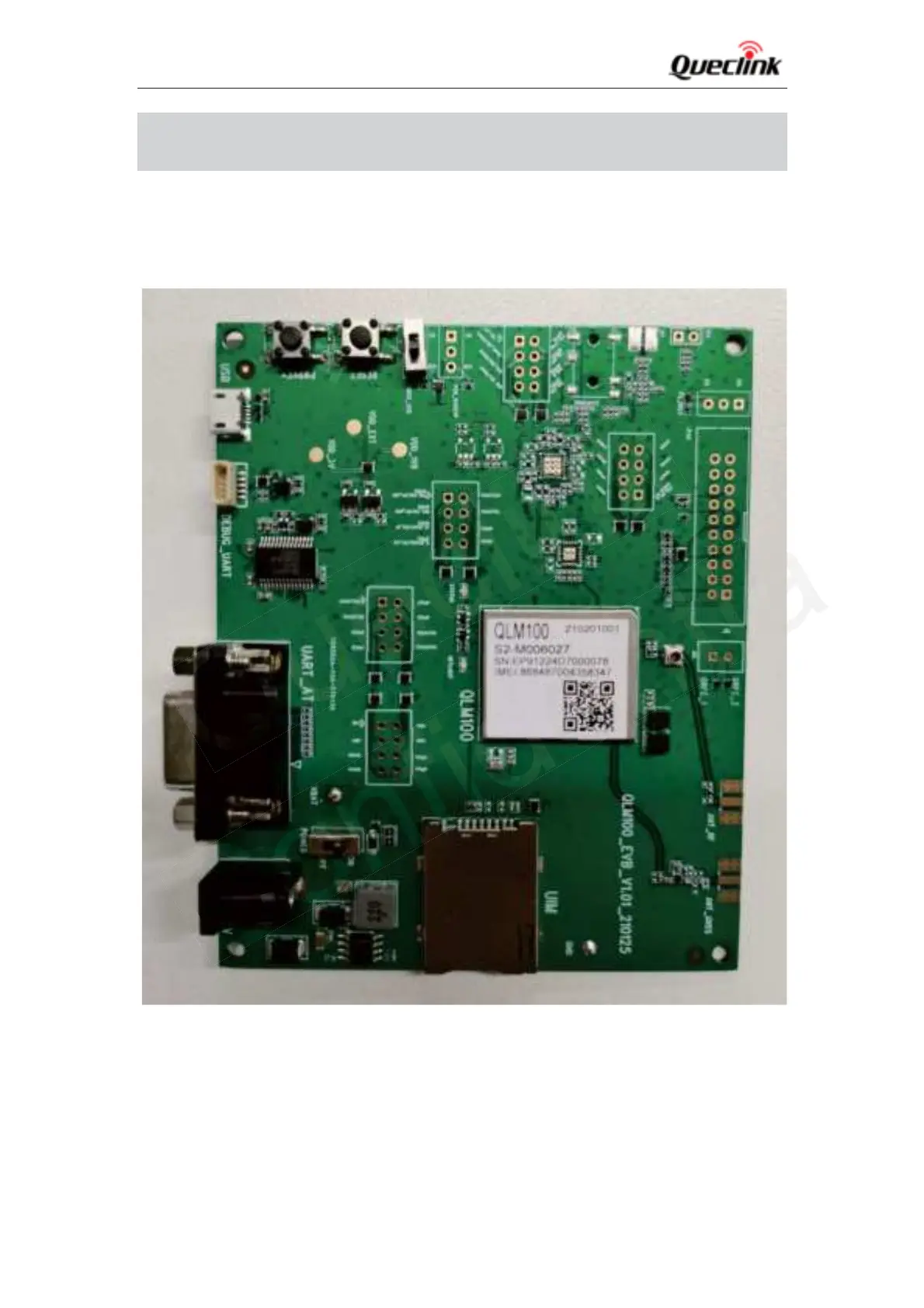

Figure 4. EVB & Module
3.2. Power on the Module
Connect the 12V charger with EVB, switch the POWER to ON and then press the power
al
