3.3. Power Supply
The following table shows the VCC_3V3 pins and ground pins.
Table 5: VCC_3V3 and GND Pin Definition
The typical supply voltage of EC20 Mini PCIe is 3.3V. In the 2G networks, the input peak current may
reach to 2.7A during the transmitting time, therefore the power supply must be able to provide enough
current, and a bypass capacitor of no less than 470µF with low ESR should be used to prevent the
voltage from dropping.

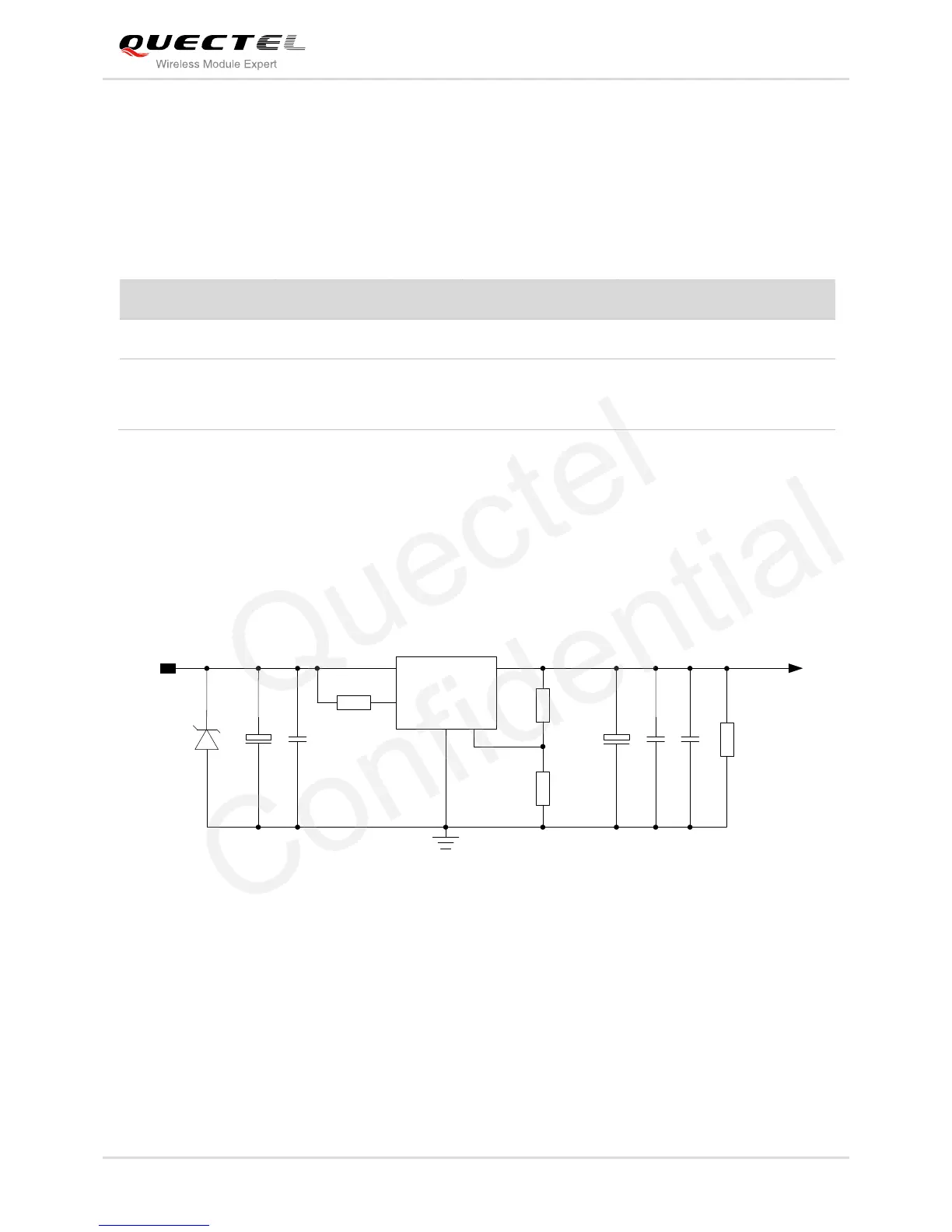

The following figure shows a reference design of power supply. The precision of resistor R2 and R3 is 1%,
and the capacitor C3 needs a low ESR.
