5.3. Standard Dimensions of Mini PCI Express
The following figure shows the standard Dimensions of Mini PCI Express. Please refer to document [1]
for detailed A and B.

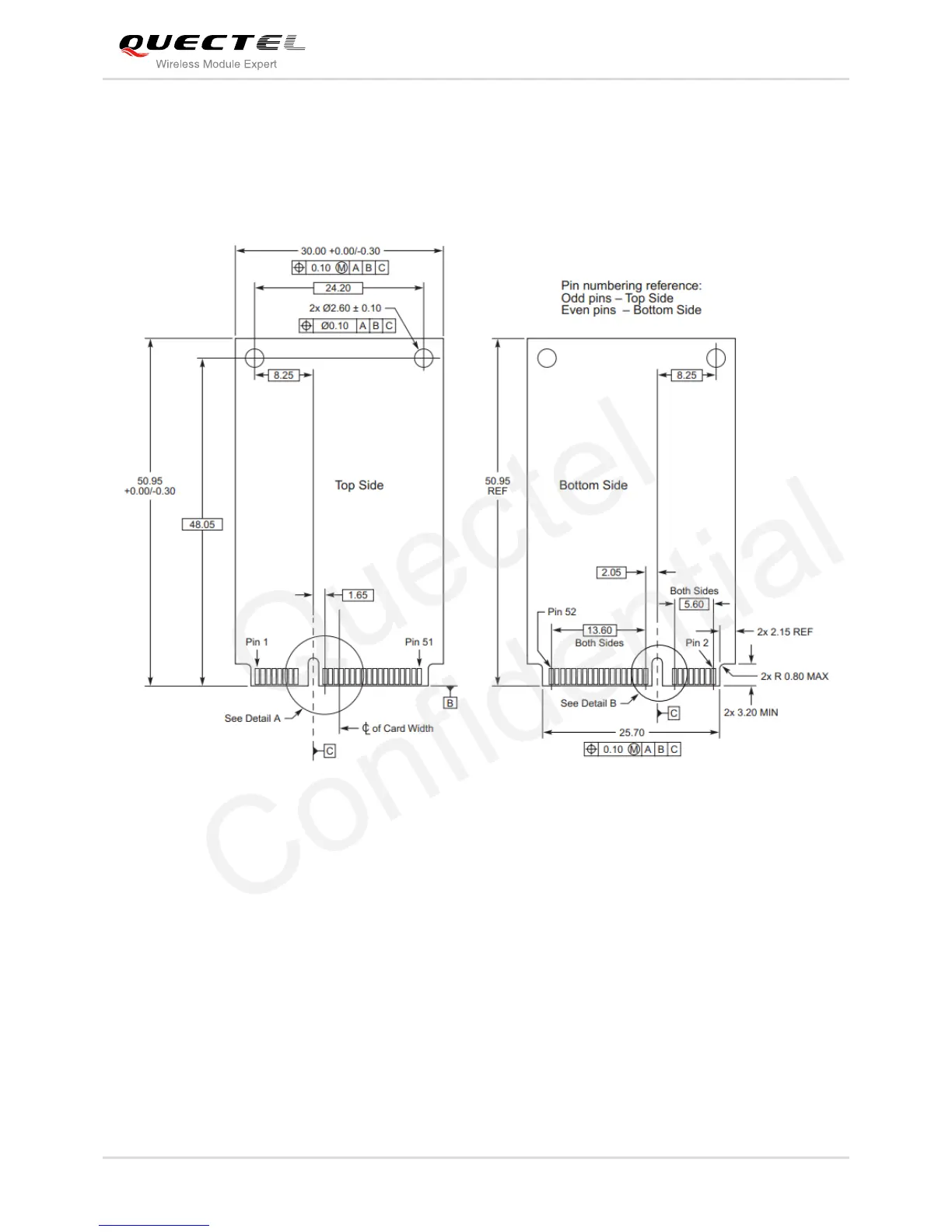

Figure 17: Standard Dimensions of Mini PCI Express (Unit: mm)
