EC20 Mini PCIe adopts a standard Mini PCI Express connector which compiles with the directives and
standards listed in the document [1]. The following figure takes the Molex 679100002 as an example.

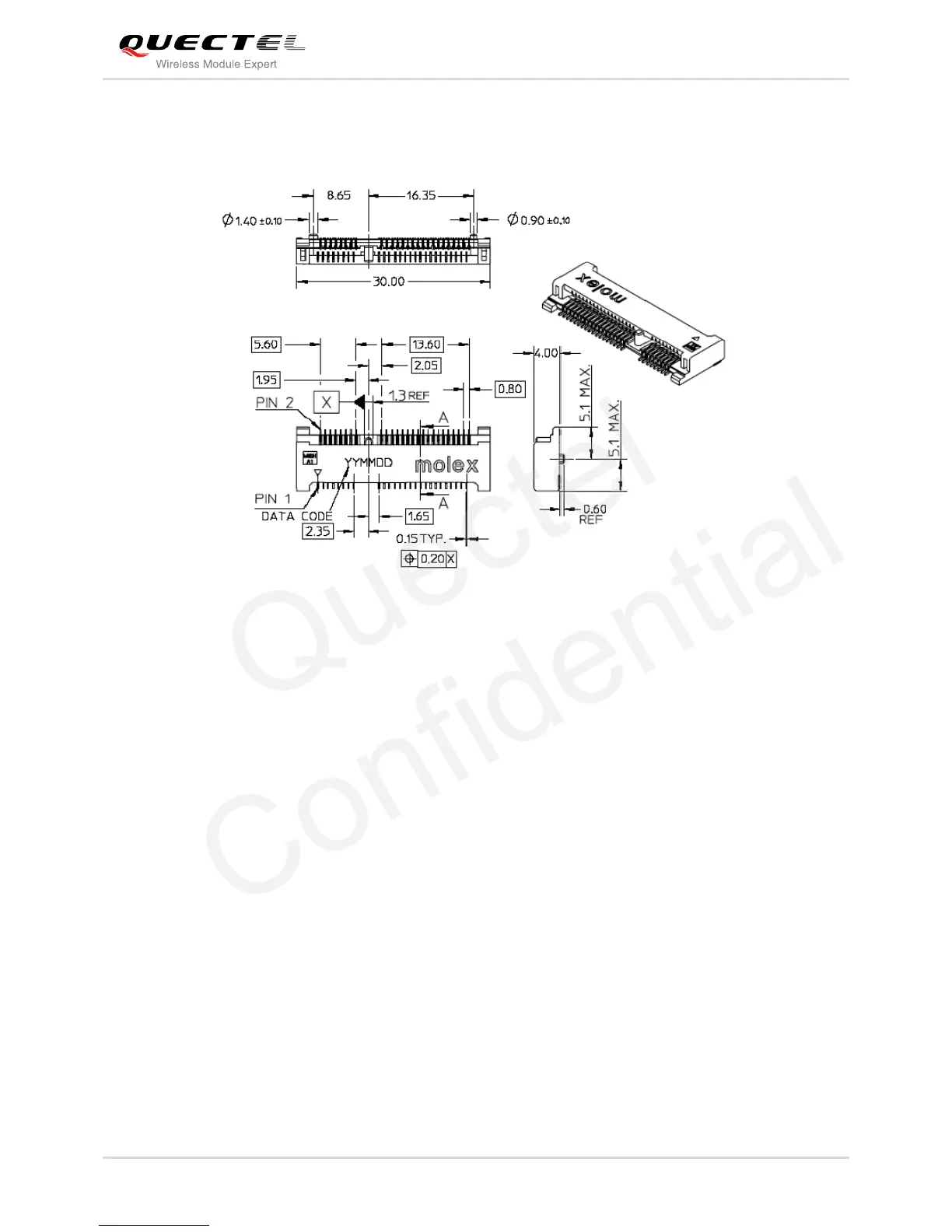

Figure 18: Dimensions of the Mini PCI Express Connector (Unit: mm)
5.4. Packaging
The EC20 Mini PCIe is packaged in tray. Each tray contains 10pcs of modules. The smallest package of
EC20 Mini PCIe contains 100pcs.
