3.3. Switches and Buttons

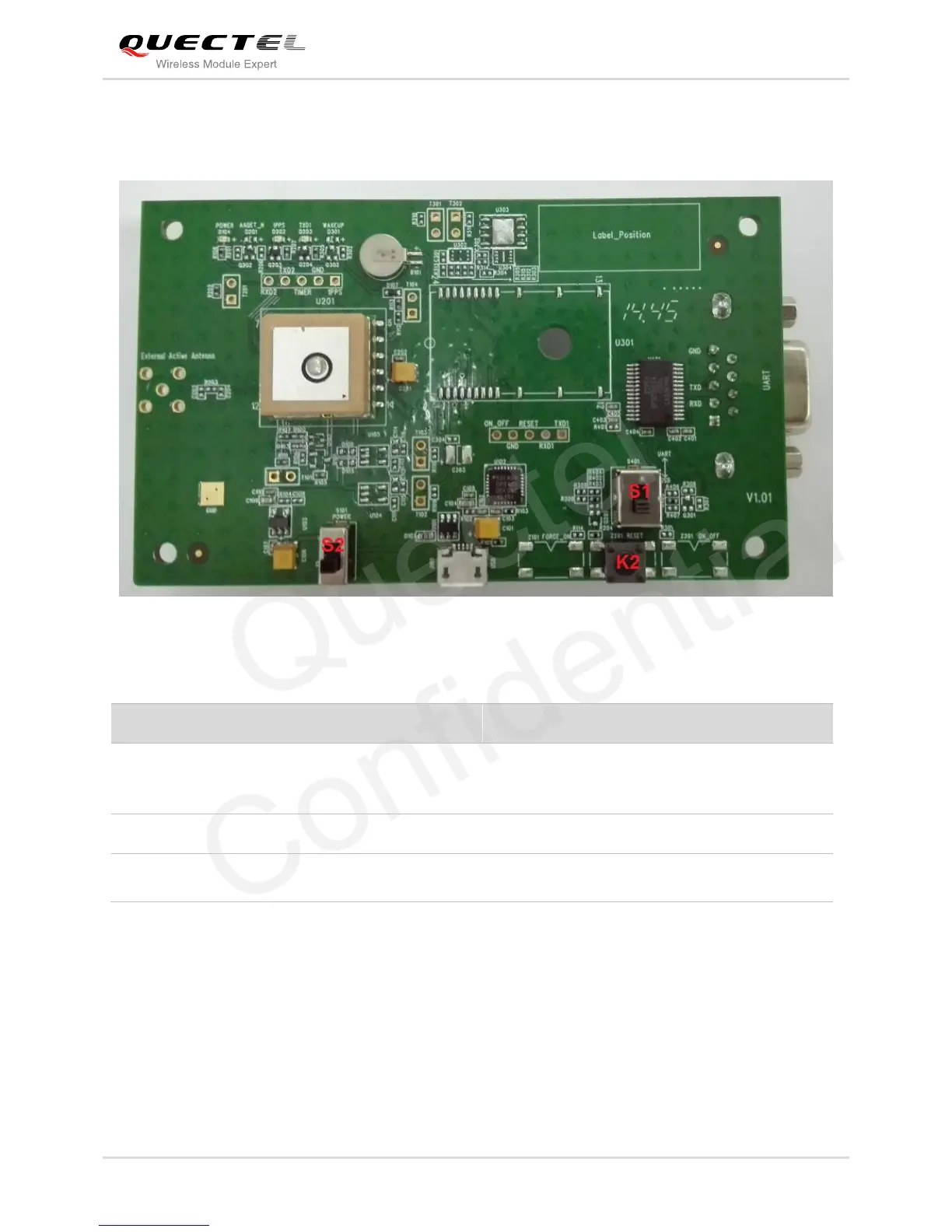

Figure 6: Switches and Buttons
Table 4: Switches and Buttons
Part
Name
I/O
Description
S1
Serial port alternation
switch
I
Quectel EVB supplies two communicative ways:
Micro-USB and UART which are controlled by
switch.
S2
POWER
I
Control power supply via Micro-USB.
K2
RESET
I
Press and release this button, then the module
will reset.
