REAR PANEL

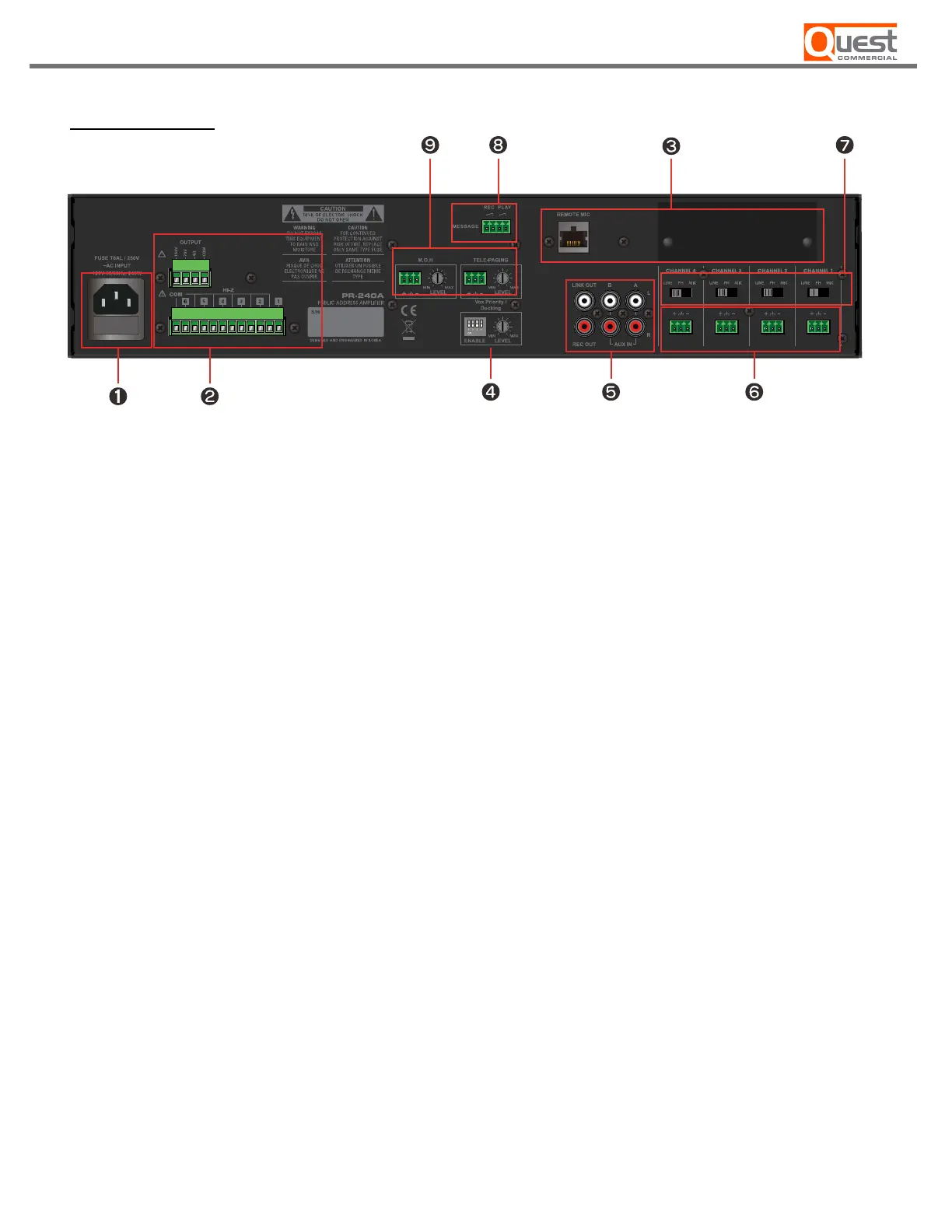

[Figure 1.2 Rear panel diagram]
1. AC 120 V 50/60Hz with fuse.
2. Speaker outputs connector ( individual zone and 100V, 4-ohm, 70V output ).
3. FM antenna, line output of media module (when installed) and remote mic station (RM6) input jack.
4. Priority with Ducking Level Control & Channel Selector.
5. 2 Aux In, 1 Line Out & 1 Link Out.
6. 4 Balanced Mic/Line Inputs with 48V Phantom.
7. Line / Phantom / Mic selection switch for each input channel
8. Contact Closure to Rec/Play prerecorded messages.
9. Tel Paging and Music on Hold (M.O.H.) with volume controls
– 7 –
PR-130A / PR-240A
