Note: If there is no QUICK196, it is recommended that the temperature measuring head

of the external sensor of the thermometer be placed 3～5mm away from the nozzle for

temperature test.

12. Replacement of the Heater

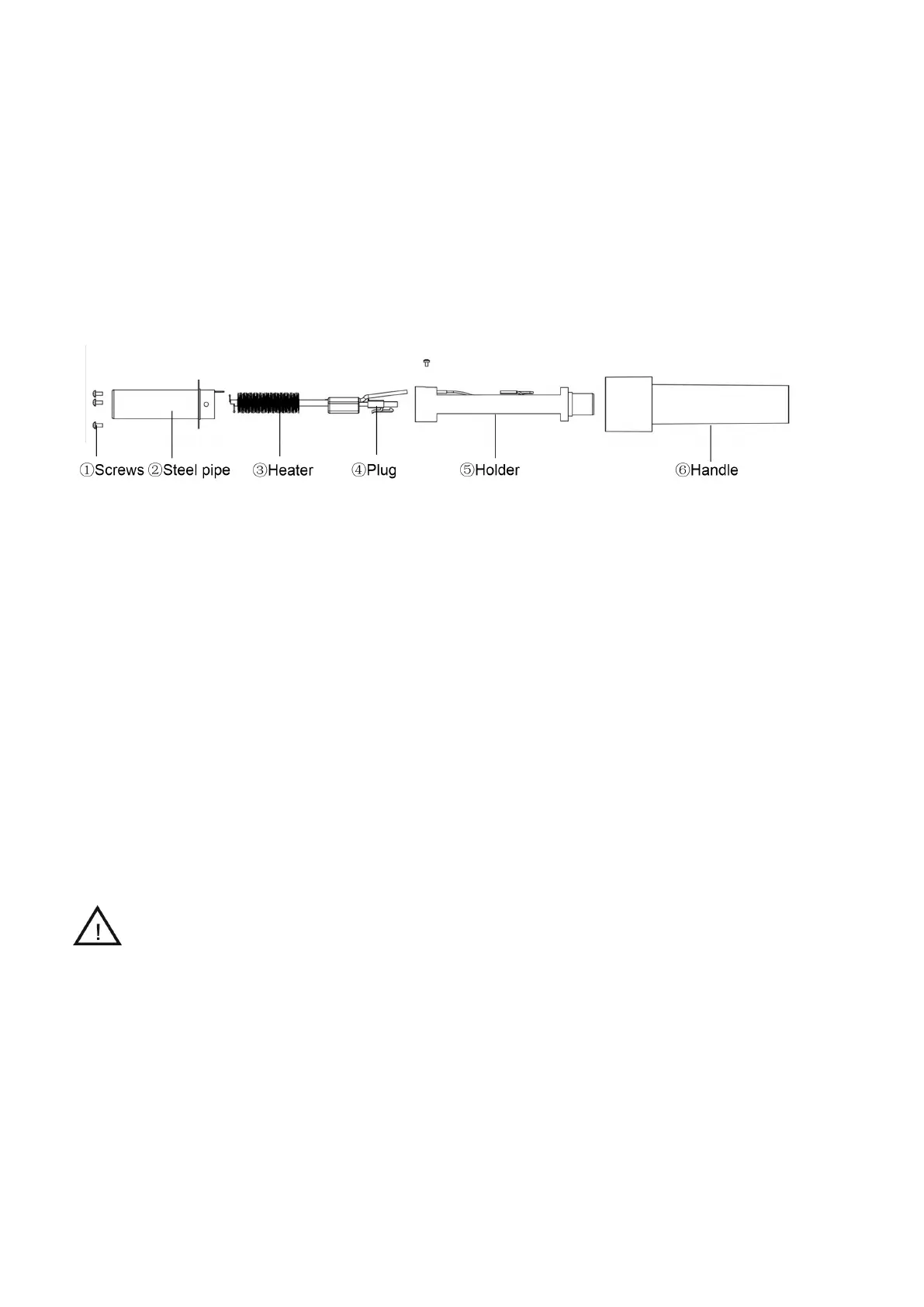

12.1 Steps of removing the Heater

1) Remove the spring.

2) Unscrew the three ①Screws .

3) Pull out

②

Steel pipe &

⑤

Holder from

⑥

Handle.

4) Remove the orange and yellow cables connected in the ③Heater.

5) Remove a screw of ②Steel pipe, plug the grounding cable and remove the ②Steel

pipe.Check whether the quartz tube is damaged or not.

6) Remove the

③

Heater from

④

Plug.

7) Remove the heater.

NOTE: :The steps need to be operated in the OFF status, and the handle should be

cooled in the room temperature.

12.2 Steps of replacing the Heater

1) Insert the ③Heater, and connect it into green plug.

2) Connect the yellow cable into the heater of the yellow cable , and the orange into the

red.
