BTQ SERIES INSTALLATION AND USE MANUAL - IT EN - REV001A
32
BTQ series
M1
A A
S S
SX
+
-
DX
-
M2
6 - Connection diagram
Control panel
To install the control panel, consult the “TCD” instruction manuals.
FUSE
4A FAST
SWITCH
TO THE SERVICES BATTERY
THERMIC
PROTECTION

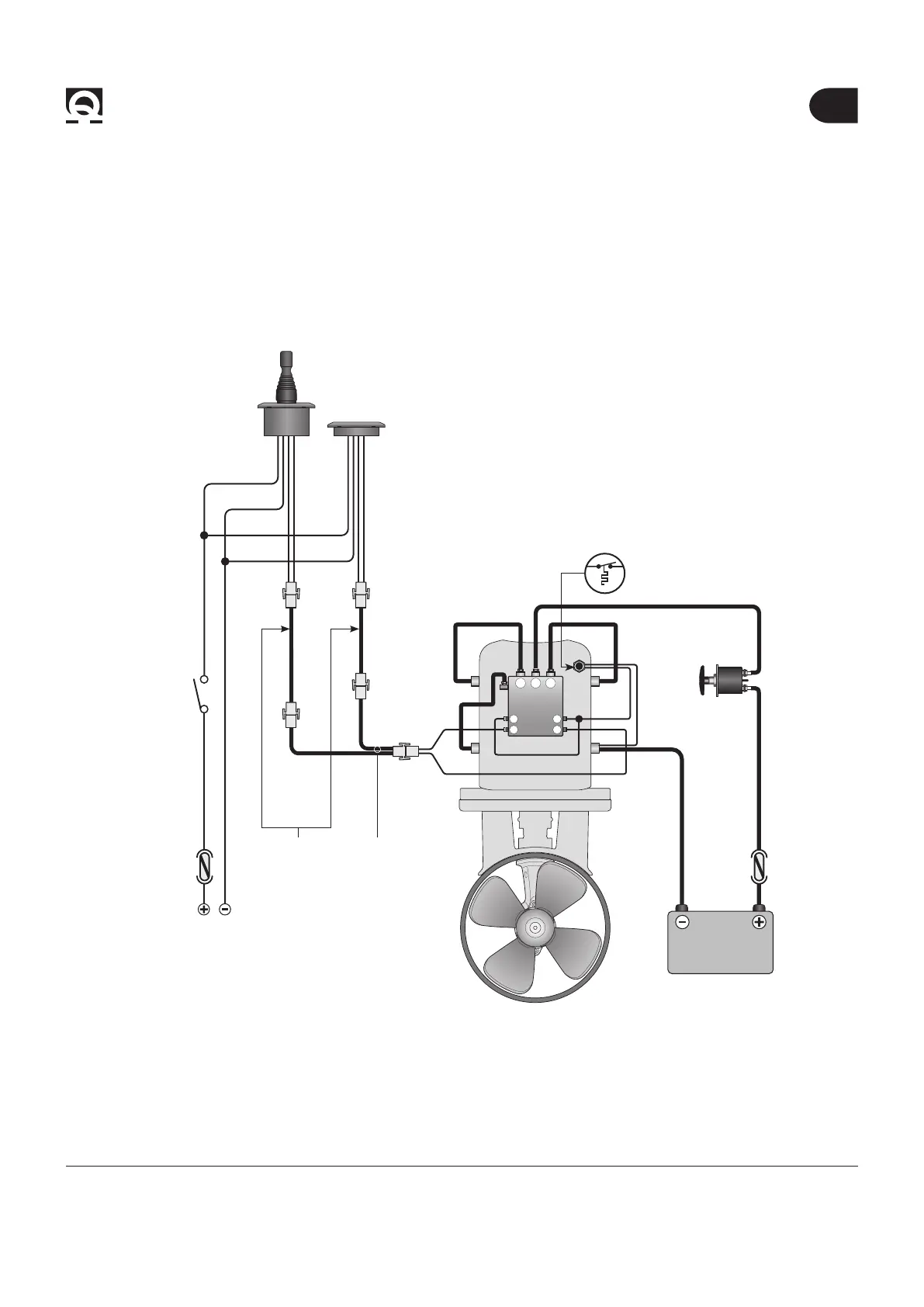

6.2 - BTQ140/185/250/300 Basic System
Example of connection
MOTOR
BATTERY
12/24/48 V
BLACK
RED
BLACK
RED
*
*
TCD
TCD
**
SPLITTER
(OPTIONAL)
EXTENSION CABLE
(OPTIONAL)
* Common negative for the battery groups.
** WARNING: in case of overtemperature, the thermal protection on the motor will open and interrupt the negative contact on the solenoid
unit. Wait as long as the system needs to reactivate.
