PROPELLER
CONTROL PANEL
To install the control panel, consult the “TCD 1022 - TCD 10422 instruction manual.
L
O
C
T
IT
E
WARNING: on conclusion of assembly,
make sure that the propeller is exactly po-
sitioned at the central point of the tunnel.
PROPELLER FITTING

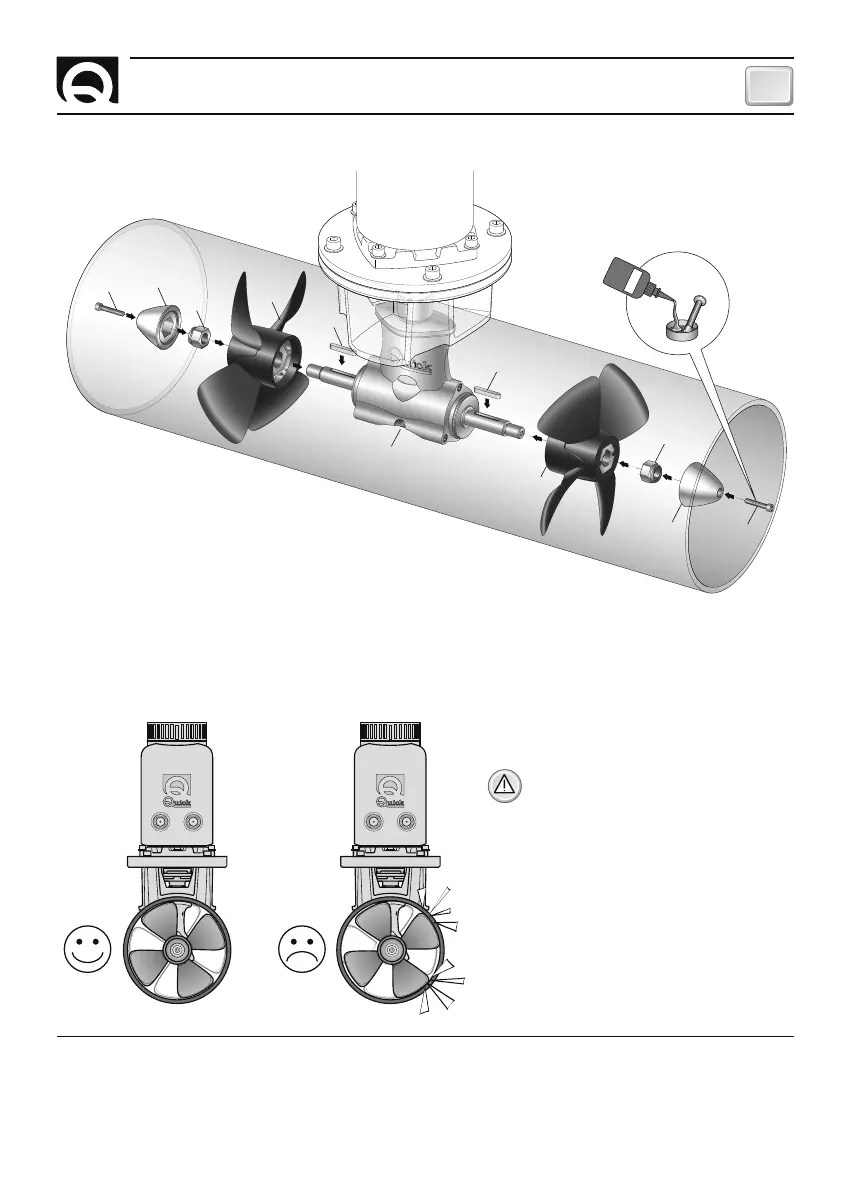

Insert the drive keys A onto the gearleg B; assemble the propellers C and D at the gearleg, fi tting them onto the drive
pins A and anchor the propellers with the self-braking nuts E.
The anodes F fi t onto the nut E and are then anchored with the screws G which must be wetted with thread-locking
adhesive (such as loctite).
A
B
C
E
G
F
A
D
E
F
G
