26
GB
RETRACTABLE THRUSTER BTR185 - IT GB - REV004B
INSTALLATION

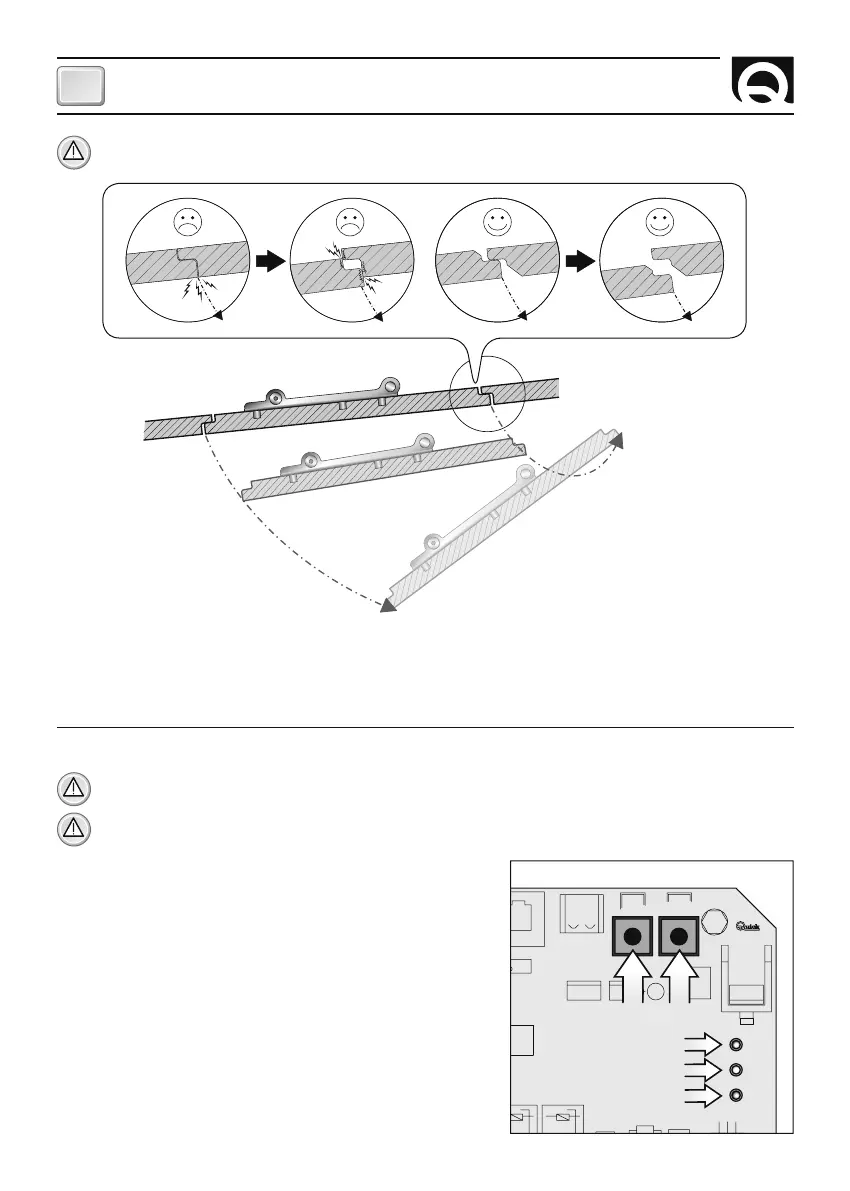

WARNING:
pay particular attention to avoid interferences between the lid and the hull opening. Too precise con-
tacts will cause damages to the entire moving system.
CAN2
UP
DWN
POWER
LA STATUS
ERROR
4)
Ensure that all electrical connections have been properly carried
out.
5)
Remove the cover from the card box.
Limit switch adjustments must be made in “manual mode”.
6)
Holding down both buttons on the board(fig.
8
/ part.
A
), connect
power to the RTC R1 electronic control board until the (green)
POWER LED begins flashing rapidly (fig.
8
/ part.
B
).
Then release both buttons.
7)
Push the “DOWN” button to open the thruster, as long as the LA
STATUS LED will become green.
8)
Push the “UP” button to close the thruster until the ERROR LED
(Red) flashes.
FIG. 8
B
A
D
C
PROCEDURE FOR THE ADJUSTMENT OF THE CLOSING LIMIT SWITCH OF BTR PROPELLER.
WARNING:
the following procedure must be carried out by qualified personnel.
WARNING:
presence of moving mechanical parts. Pay extreme attention when operating on the BTR propeller if
connected to power.
3)
Fix the actuator on the lever again, by inserting the lock pin.
Once the system has been mechanically verifi ed, proceed to adjust the limit switch.
