EN
BTR185 INSTALLATION AND USE MANUAL - REV009A
38

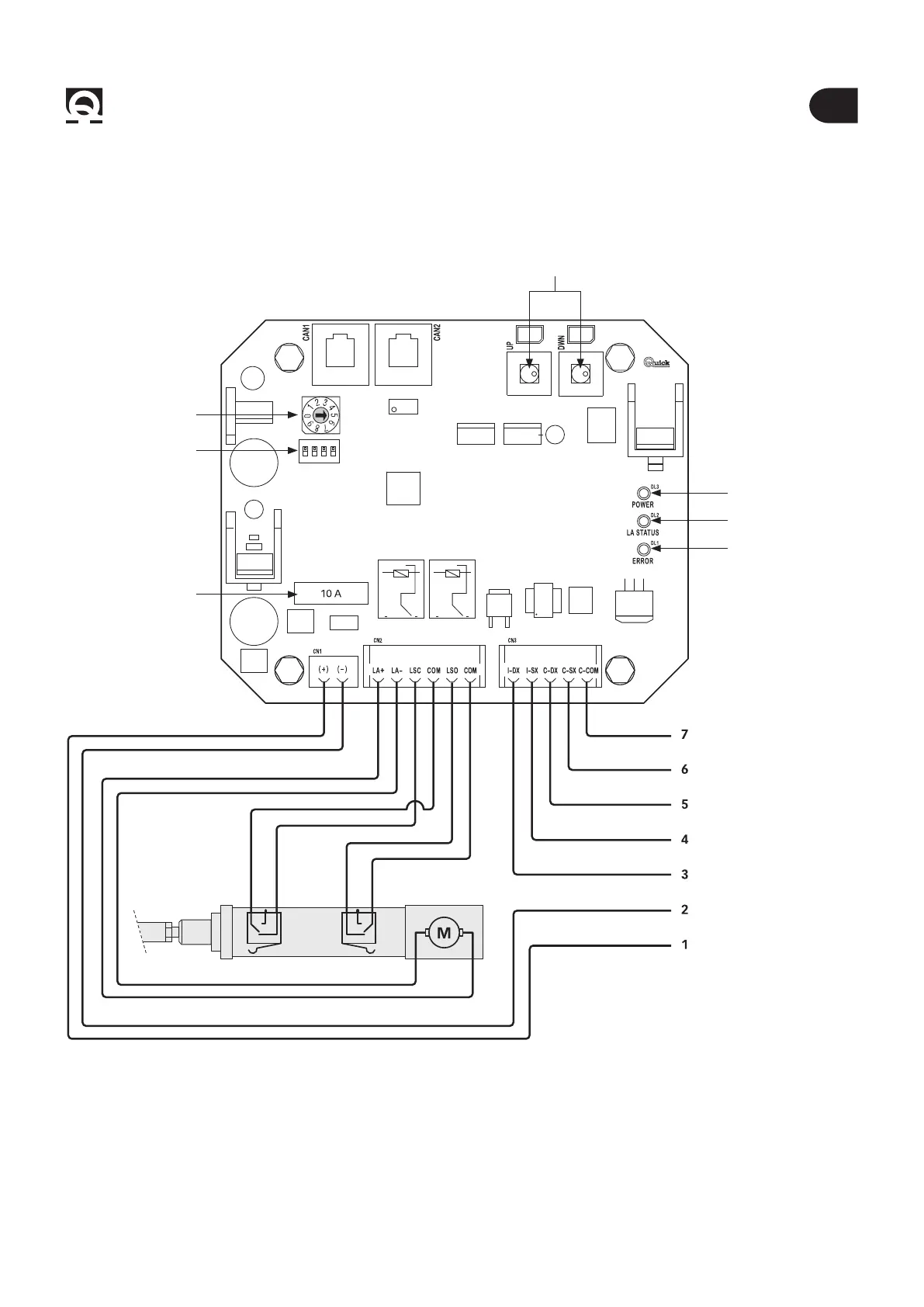

BTR1855 - Connection diagram
5.1 - RTC R1 BOARD
ROTARY SWITCH
ACTUATOR CURRENT LIMIT
DIP-SWITCH
OPTIONS SELECTION
FUSE ACTUATOR
MANUAL OPERATION BUTTONS
GREEN LED POWER
CAN BUS LINK
BI-COLOUR LED LINEAR
ACTUATOR STATUS
RED LED ERRORS
LINEAR ACTUATOR
RED
BLACK
YELLOW
GREEN
RED
WHITE
NEGATIVE GROUP REVERSING
CONTACTOR
TO LEFT CONTACTOR
TO RIGHT CONTACTOR
TCD PLUGIN FEMALE PIN 2
TCD PLUGIN FEMALE PIN 1
- POWER SUPPLY
+ POWER SUPPLY
