Quick BTR185 - Connection Diagram

30
EN
RETRACTABLE THRUSTER BTR185 - IT EN - REV008B

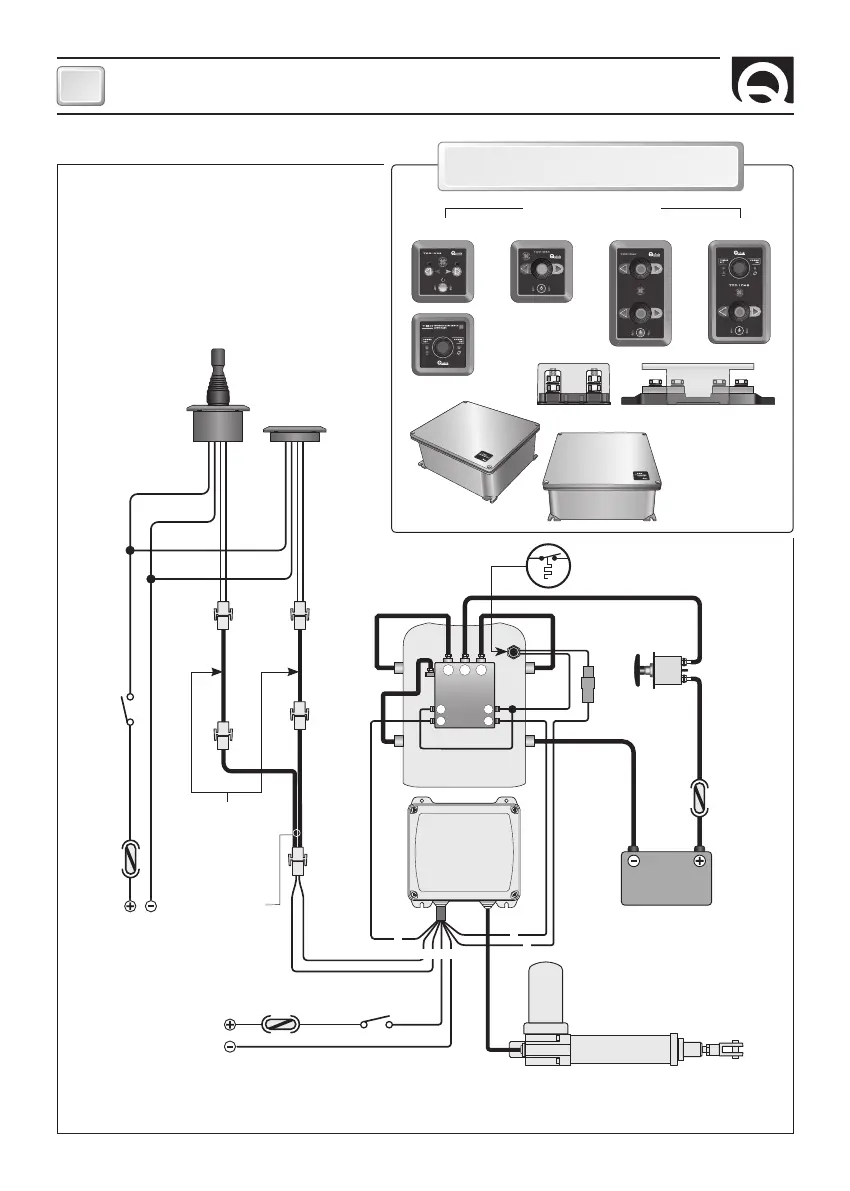

CONNECTION DIAGRAM
M1
A A
S S
SX
+
-
DX
-
M2
BASIC SYSTEM BTR185
RTC R1
ELECTRONIC
BOARD
BATTERY
12/24V
BATTERY
ISOLATOR
BLACK
FUSE 4A
QUICK ACTING F
FUSE
SEE TABLE
ON PAGE 22
SWITCH
RED
BLACK
RED
TO THE SERVICES
BATTERY
TCD 1042
TCD 1022
SPLITTER
(OPTIONAL)
CONTROL CABLE
EXTENSIONS
(OPTIONALS)
*
*
MOTOR
Connection example
TO THE SERVICES
BATTERY
ACTUATOR
SWITCH
*
1 2
4
6
5
3
7
FUSE 10A
QUICK ACTING F
CONTROL PANELS
QUICK
®
ACCESSORIES FOR ACTIVATION
OF THE BOW THRUSTER
STERN
BOW
TSC MAIN SWITCH
COMMAND
PSS PARALLEL-SERIES
BATTERY SWITCH
FUSEHOLDERS TFH3 - TFH6
TMS THRUSTER
MAIN SWITCH
TCD 1022 TCD 1042 TCD 1044 TCD 1062
*
COMMON NEGATIVE FOR THE BATTERY GROUPS.
**
WARNING: IN CASE OF OVERTEMPERATURE, THE THERMAL PROTECTION ON THE MOTOR WILL OPEN AND INTERRUPT THE NEGATIVE CONTACT ON THE
SOLENOID UNIT. WAIT AS LONG AS THE SYSTEM NEEDS TO REACTIVATE.
**
THERMIC
PROTECTION
