RETRACTABLE THRUSTER BTR185 - IT EN - REV008B
M
1 2 3 4 5 6 7
10 A
CN1
CN2
CAN1
CAN2
UP
DWN
CN3
POWER
DL3 DL2 DL1
LA STATUS
ERROR
LA
+
LA
-
LSC COM COM C
-
COMC
-
SXC
-
DXI
-
SXI
-
DXLSO

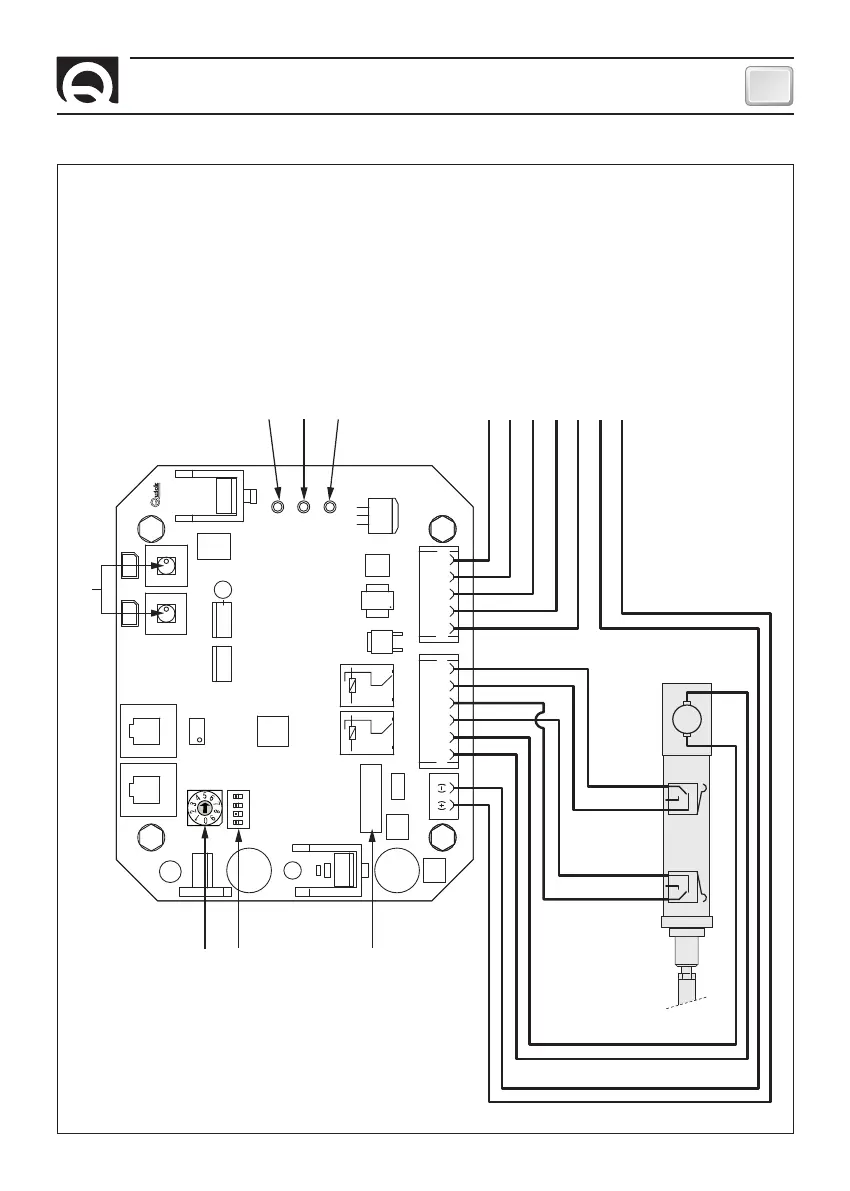

CONNECTION DIAGRAM
Negative group reversing contactor To left contactor To right contactor TCD Plugin female Pin 2 TCD Plugin female Pin 1 - Power Supply + Power Supply
RTC R1 BOARD
Rotary switch
actuator current limit
Dip-Switch
options selection
Fuse Actuator
Manual operation buttons
Green LED power CAN bus link Bi-colour LED linear actuator status Red LED errors
LINEAR ACTUATOR
Red
Red
Yellow
Black
Green
White
