RETRACTABLE THRUSTER BTR185 - IT EN - REV008B
OPERATING

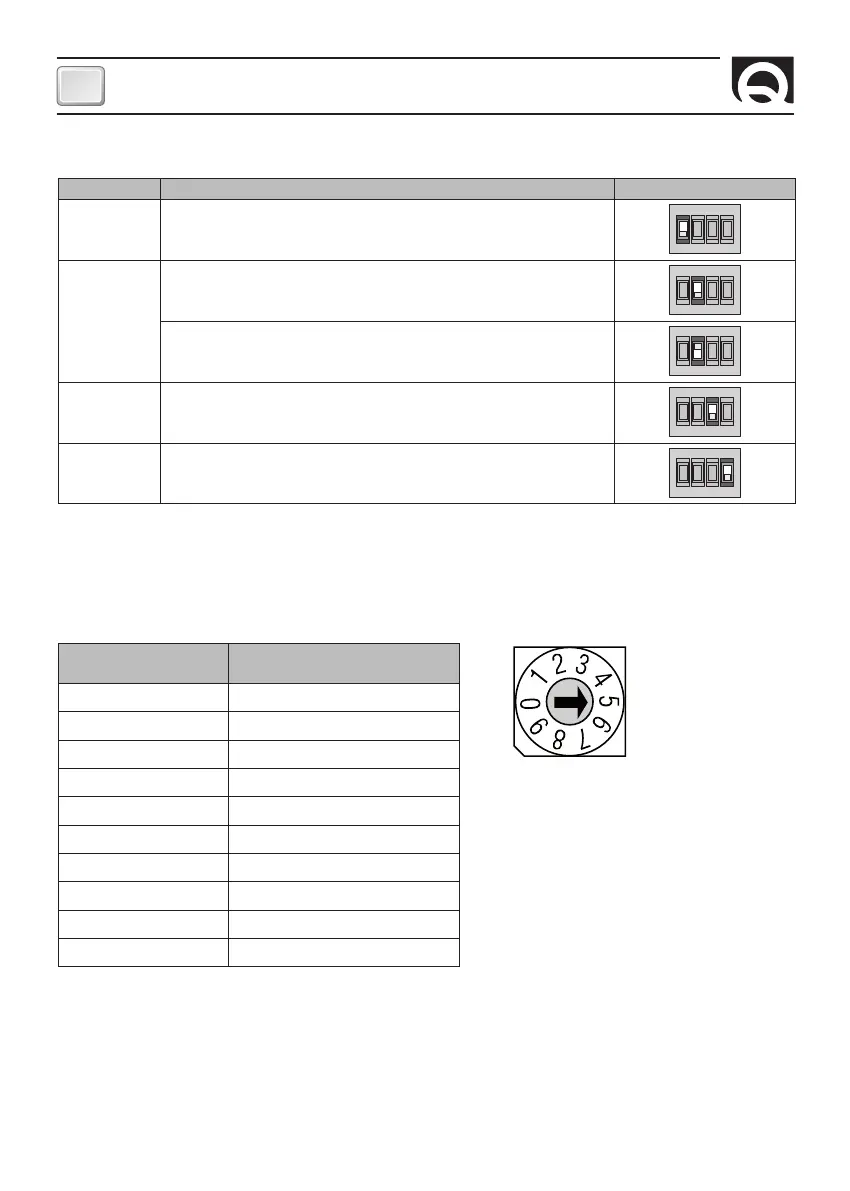

Option selection Dip-Switch
SWITCH FUNCTION DESCRIPTION
1
Reserved (always keep off)
ON
1 2 3 4
2
Informs the CAN control station that the thruster is in the bow (OFF)
ON
1 2 3 4
Informs the CAN control station that the thruster is in the stern (ON)
ON
1 2 3 4
3
Reserved (always keep off)
1 2 3 4
4
Reserved (always keep off)
ON
1 2 3 4
FACTORY SETTING: 1 = OFF , 2 = OFF , 3 = OFF , 4 = OFF
Actuator current rotary switch
The ten selectable steps (from 0 to 9) allow you to set a percentage (see table) regarding the maximum current/load allowed for
the actuator in use.
ROTARY SWITCH POSITION MAXIMUM CURRENT/LOAD %
0
28%
1
36%
2
44%
3
52%
4
60%
5
68%
6
76%
7
84%
8
92%
9
100%
Should a setting different to the factory one be requested, carry out the following operations:
1) Turn the arrow of the rotary switch to the desired position with the board not powered.
2) When the board is powered, the percentage corresponding to the selected position will automatically be set.
If the maximum current/load is too low compared to the real operating requirements, may intervene protections against high
absorption of the actuator in closing and opening the retractable, with flashing 1 and 7 errors.
