Quick RCV WI RF User Manual

CONNECTION DIAGRAM / MAINTENANCE / TECHNICAL DATA
EN
9
QUICK SPA
QCC-RCV WI/RF - REV001B
Quick
®
reserves the right to modify the technical
characteristics of the equipment and the contents
of this manual without prior notice.
In case of discordance or errors in translation
between the translated version and the original
text in the Italian language, reference will be made
to the Italian or English text.
TECHNICAL DATA

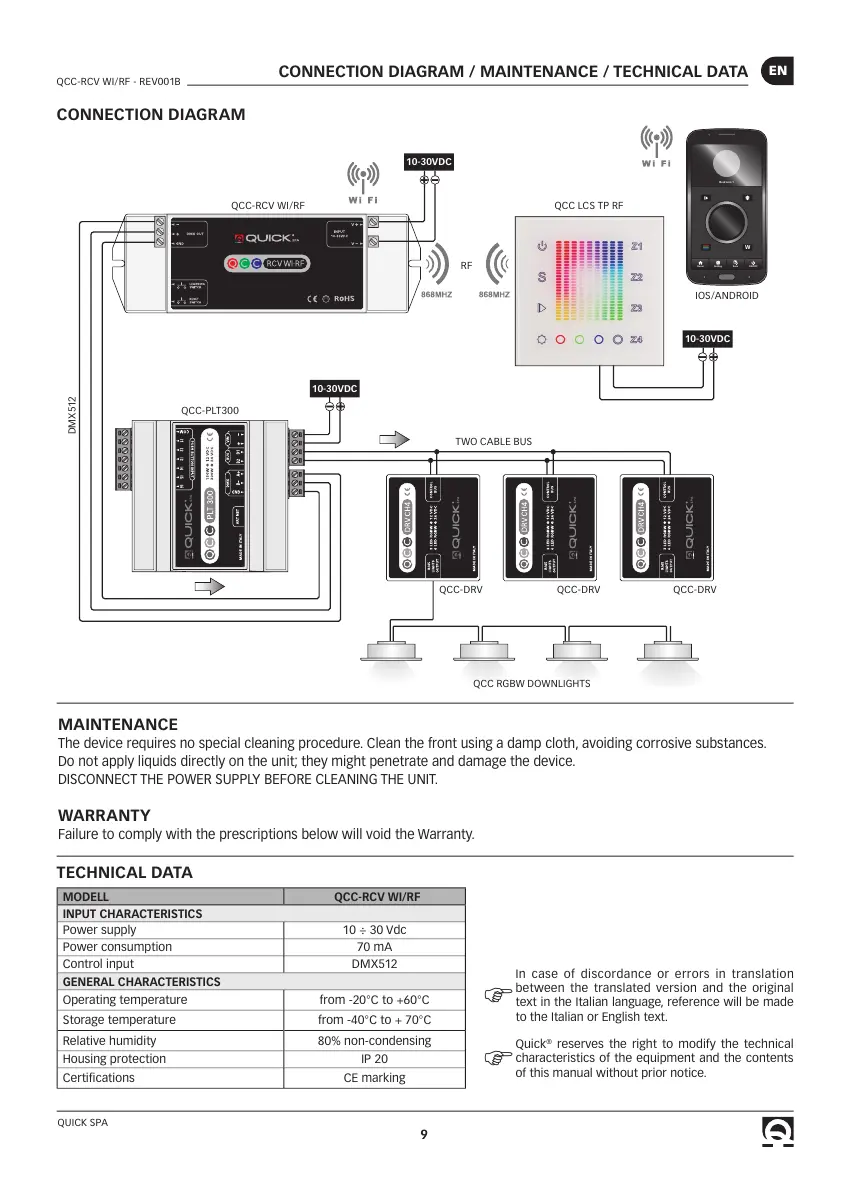

CONNECTION DIAGRAM
MAINTENANCE
The device requires no special cleaning procedure. Clean the front using a damp cloth, avoiding corrosive substances.
Do not apply liquids directly on the unit; they might penetrate and damage the device.
DISCONNECT THE POWER SUPPLY BEFORE CLEANING THE UNIT.
WARRANTY
Failure to comply with the prescriptions below will void the Warranty.
MODELL QCC-RCV WI/RF
INPUT CHARACTERISTICS
Power supply 10 ÷ 30 Vdc
Power consumption 70 mA
Control input DMX512
GENERAL CHARACTERISTICS
Operating temperature from -20°C to +60°C
Storage temperature from -40°C to + 70°C
Relative humidity 80% non-condensing
Housing protection IP 20
Certifications CE marking
F
F
10-30VDC
10-30VDC
W
Room Setting Save ON/OFF
Bedroom 1
10-30VDC
QCC-DRV
QCC-PLT300
DMX512
QCC-RCV WI/RF
TWO CABLE BUS
QCC LCS TP RF
IOS/ANDROID
RF
QCC-DRV
QCC RGBW DOWNLIGHTS
QCC-DRV
