VIII. Set-up, Adjustment & Use

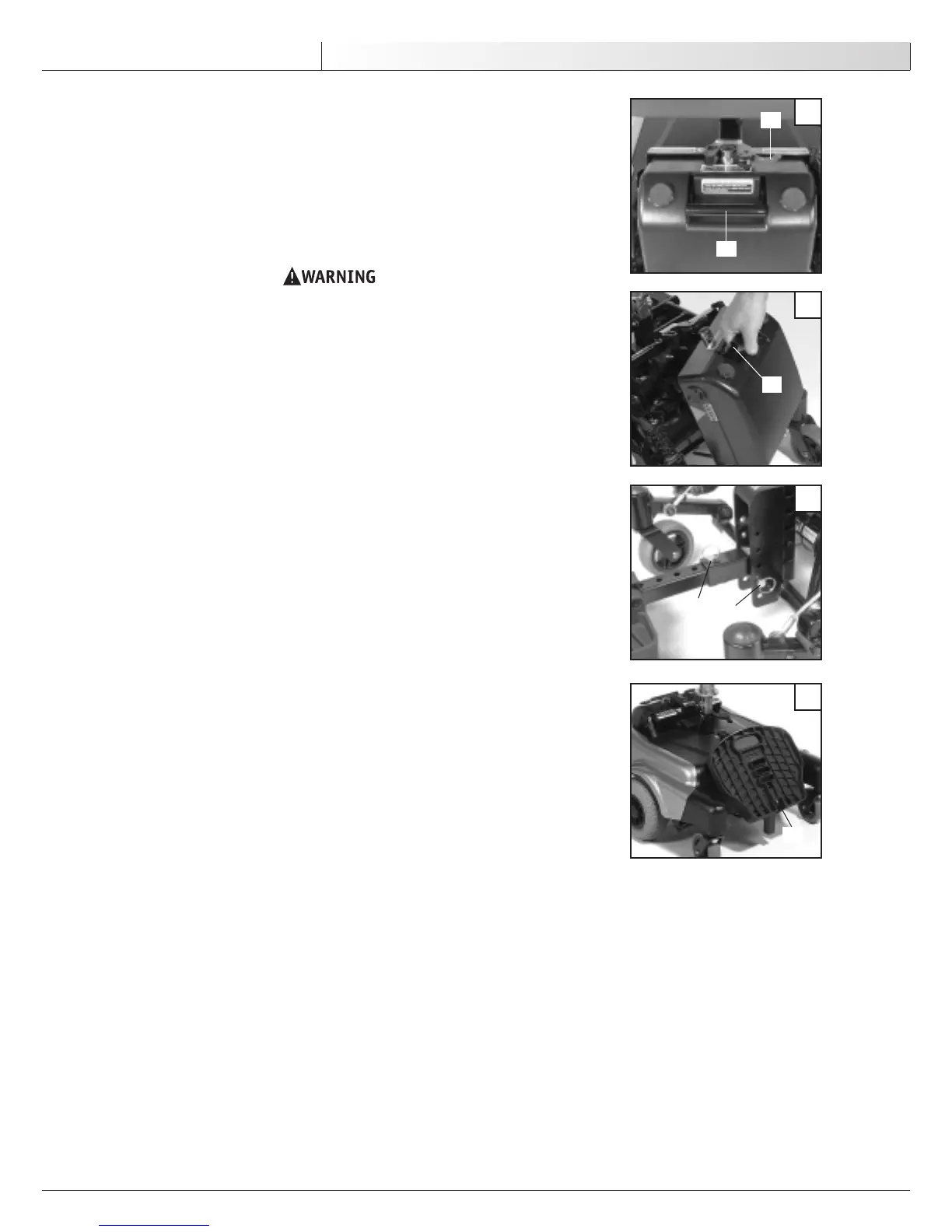

A. BATTERY CASE REMOVAL (FIGURES 1 & 2)
To remove the batteries for transporting or servicing:
1. Remove Battery Case
a.
Pull red battery pack release (A) forward
b. To remove battery pack, lift up on battery pack handle (B).
2. Battery Installation
See Secti
on X. Batteries, D for installation.
Batteries may weigh up to 25 lbs. Care must be taken to avoid injury when lifting
up on battery handle.
B. FOOTPLATE ADJUSTMENT
The single footplate can be adjusted in three different ways: height, length, and angle.
1. Height Adjustment (Figure 3)
(5 possible adjustments):
a. Remove the plastic cover to access the height adjustment pins (See Section H).
b. Remove Pin (C).
c. Move footplate to desired height and slide it into slot.
d. Re-install pin (C) through desired hole.
2. Length Adjustment (Figure 3)
(4 possible adjustments):
a. Remove pin (D).
b. Move footplate to desired length.
c. Re-install pin (D) through desired hole.
3. Angle Adjustment (Figures 4)
Adjust bolt (E) until desired angle is reached.
C. INTEGRAL JOYSTICK
1. To Connect
a. Line up receptacle on large rectangular connector (Beau Connector) located on the
rear right section of the chair with the pins on the connecter located on the joystick
harness.
b. Push in firmly.
2. To Disconnect
Pull up on beau connector until it disconnects from the frame mounted receptacle, located
behin
d the seat on the right side of the chair.
