QuickJack 5000TL - Page 12

QuickJack™ Portable Car Jack 12 P/N 5900263 — Rev. B6 —September 2023
Specifications are subject to change without notice.

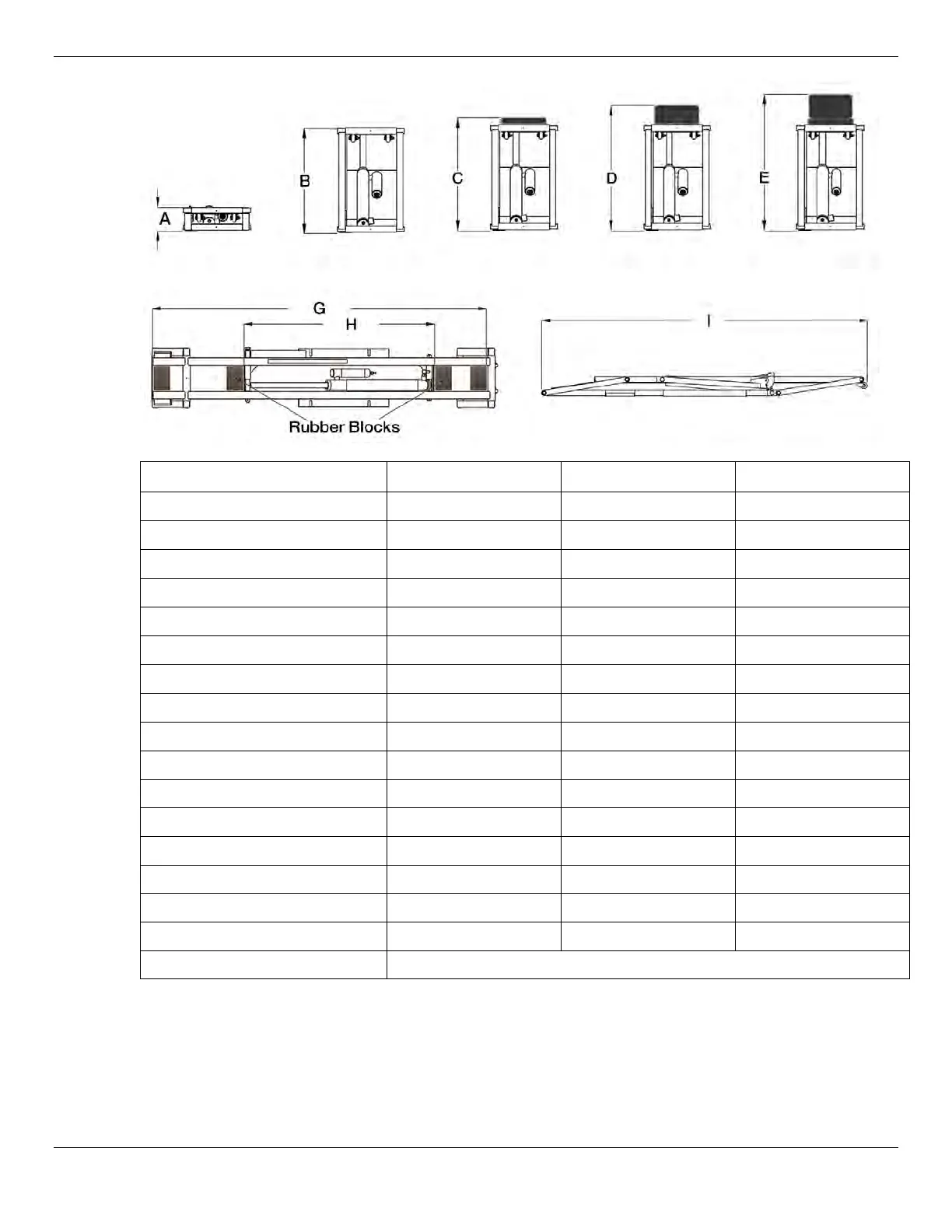

Model
6000ELX 5000TLX 7000TLX
Lifting capacity per pair 6,000 lbs. / 2,722 kg 5,000 lbs. / 2,268 kg 7,000 lbs. / 3,175 kg
A Lowered height (frame only) 3.5" / 89 mm 3" / 76 mm 3.5" / 89 mm
B Height, frame only * 20.75" / 527 mm 20.25" / 512 mm 20.75" / 527 mm
C Height, small blocks 21" / 533 mm 20.5" / 520 mm 21" / 533 mm
D Height, tall blocks 21.75" / 552 mm 21.5" / 546 mm 21.75" / 552 mm
E Height, stacked blocks 24.5" / 622 mm 24" / 610 mm 24.5" / 622 mm
F Frame width 12.5" / 318 mm 11" / 279 mm 12.5" / 318 mm
G Max lifting point spread 76" / 1,930 mm 66" / 1,676 mm 66" / 1,676 mm
H Min Lifting point spread 53" / 1,346 mm 43" / 1,092 mm 43" / 1,092 mm
I Frame length 86.75" / 2,203 mm 76" / 1,930 mm 76" / 1,930 mm
Individual frame weight 112 lbs. / 51 kg 81.5 lbs. / 37 kg 103 lbs. / 47 kg
Power unit weight (no fluid) 50 lbs. / 23 kg 50 lbs. / 23 kg 50 lbs. / 23 kg
Power Unit PRV setting 2,400 psi 2,400 psi 2,400 psi
Maximum Operating Pressure 2,100 psi 2,100 psi 2,100 psi
Sound (when raising/lowering) <70 dBA <70 dBA <70 dBA
Maximum allowed wind speed <60 mph / <96.5 kph <60 mph / <96.5 kph <60 mph / <96.5 kph
Operating Temperature Range +32°F to +104°F (0°C to +40°C)
For power requirements see Connect the Power Unit to a Power Source.
* For reference purposes only; do not raise a Vehicle without Lift Blocks.
Height values may be .25 in / 7 mm different if measurement done with mechanism at full rise or on
top lock. Measurements may be up to 3 percent different based on amount of weight on lift, weight
distribution, and manufacturing tolerances.
