QuickJack™ Portable Car Jack 23 P/N 5900263 — Rev. B6 —September 2023

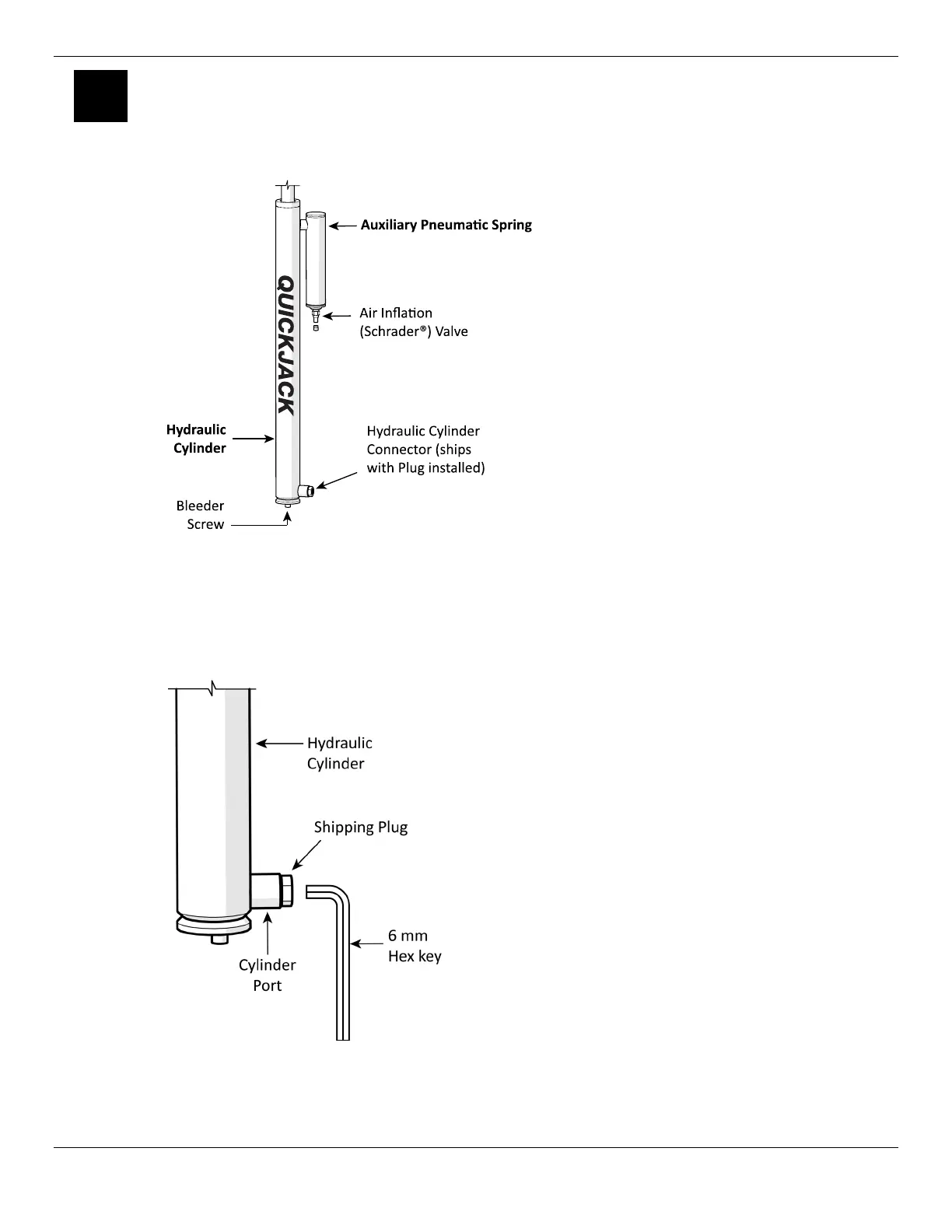

Locating the Auxiliary Pneumatic Springs and Hydraulic
Cylinders
Each QuickJack Frame has one Auxiliary Pneumatic Spring and one Hydraulic Cylinder.
The components of the Pneumatic Spring and Hydraulic Cylinders are:
• Air Inflation Valve. Used to add air pressure to the Pneumatic Spring. Comes with the
appropriate valve (Schrader
®
valve) installed.
• Hydraulic Cylinder Connector. Hydraulic Elbow Fitting attaches here. Use a 6 mm hex key to
remove the shipping plug before installing the Hydraulic Elbow Fitting.
• Bleeder Screw. Used to “bleed” the air from the Hydraulic System, if necessary. Refer to
Troubleshooting for more information.
11
