QuickJack™ Portable Car Jack 32 P/N 5900263 — Rev. B6 —September 2023

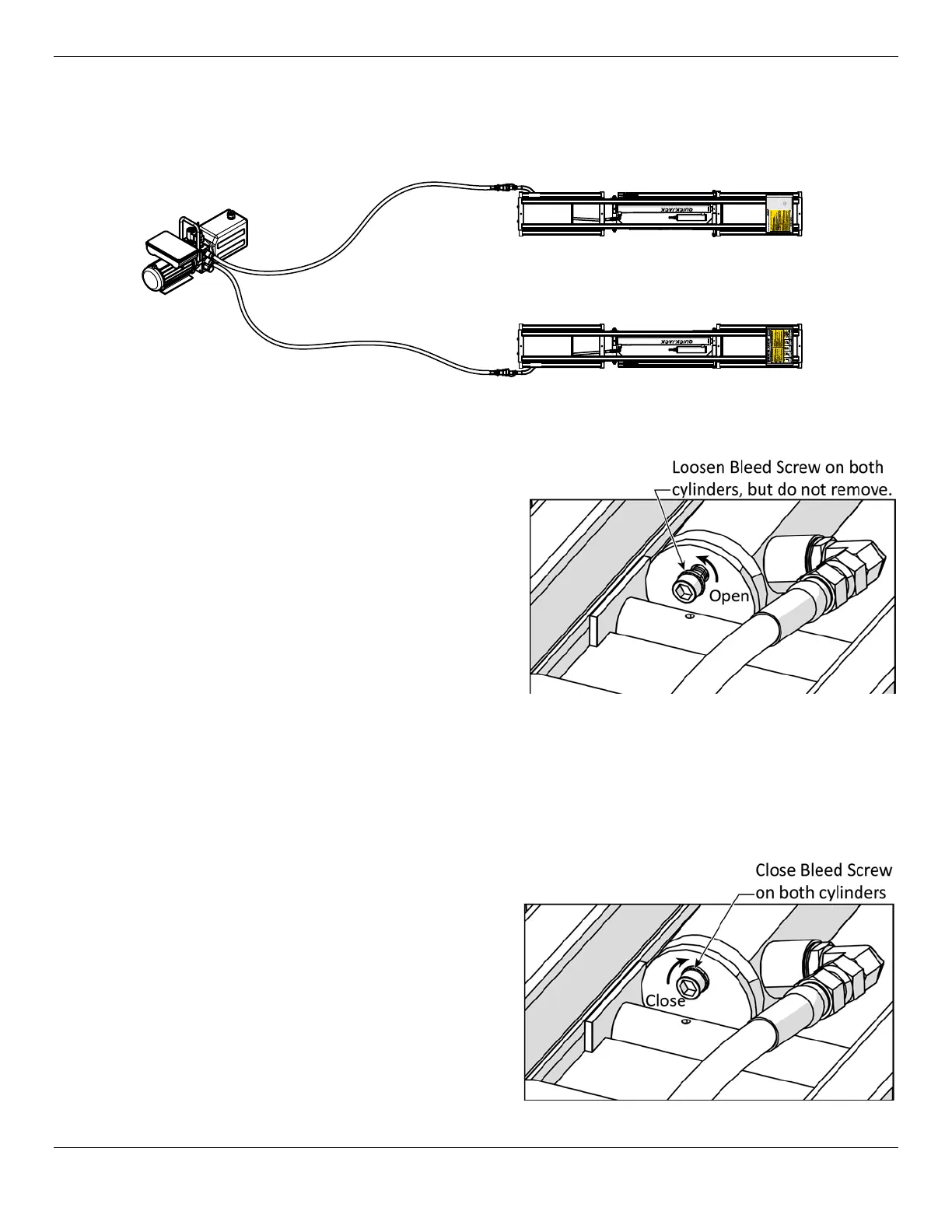

2. Connect the Hydraulic Hoses to the Power Unit and the Frames using the quick connects
⚠ CAUTION Keep hands clear of pinch points at all times to prevent injury.
3. Place a catch container or rags directly under the Bleed Screws on each Hydraulic Cylinder.
4. Use the Hex Key to loosen, but do not
remove, the Bleed Screw on both cylinders.
This allows the air a path to escape the
Hydraulic Cylinder.
5. Connect the Power Unit to Power.
6. Retrieve the Pendant Control
then push and
hold the Up button.
The Power unit will start. Air, then a mixture of air and hydraulic fluid will exit around the Bleed
Screws. Continue to hold the up button until only hydraulic fluid is escaping around both Bleed
Screws.
7. Release the Up button.
8. Immediately close both Bleed Screws.
9. Refill the Hydraulic Fluid Reservoir, if required.
The fluid level should be about ½ in. / 12 mm
below the fill port on the Power Unit.
10. Clean any Hydraulic Fluid that may have
spilled and dispose of it properly.
